Weed Eater BV1850 Gas Blower Type 1, Barracuda

Model: BV1850 Gas Blower Type 1

Back To Assemblies

Save Part Not Listed?
product name

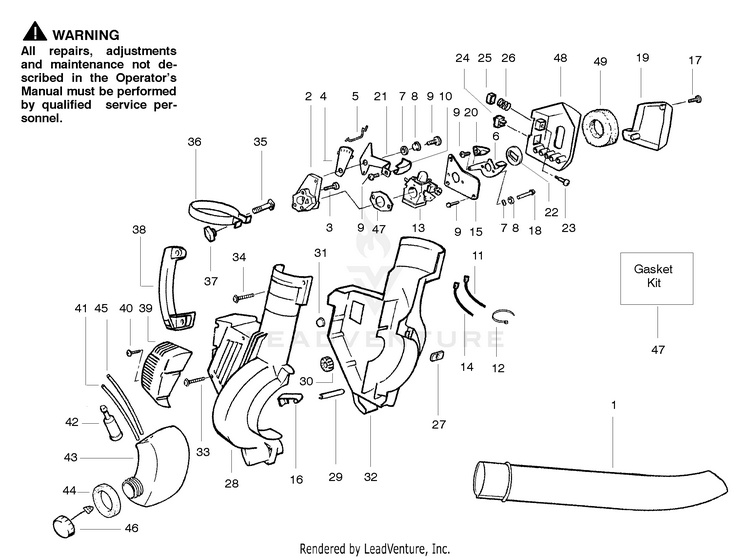

Handle,Chassis & Blower Assembly Type 1

...
...
1
Blower Tube Model 1850 PLN-530095597
...
1
Blower Tube Model 2000 PLN-530095593
...
2
Carburetor Adaptor PLN-530049322
...
3
Screw PLN-530016014
...
4
Throttle Plate PLN-530049526
...
5
Throttle Linkage PLN-530049324
...
6
Choke Lever PLN-530049834
...
7
Washer PLN-530015254
...
8
Choke Spacer PLN-530015852
...
9
Screw PLN-530015775
...
10
Knob-Throttle Lever PLN-530049837
...
11
Leadwire-Switch PLN-530049495
...
12
Wire Clamp PLN-530049494
...
13
CARBURETTOR PLN-545081882
...
14
Leadwire-Ground PLN-530049496
...
15
Choke Plate PLN-530052293
...
16
Spring Cover Latch PLN-530402044
...
17
Screw PLN-530015957
...
18
Screw PLN-530015849
...
19
Air Box Cover PLN-530049315
...
20
Knob-Choke Lever PLN-530049836
...
21
Throttle Lever PLN-530049325
...
22
Filter-Choke Plate PLN-530019246
...
23
Retainer-Purge Button PLN-530016211
...
24
Switch PLN-530069572
...
25
Purge Button PLN-530049838
...
26
Spring-Purge Button PLN-530016212
...
27
Nut PLN-530016207
...
28
Housing-Right PLN-530049883
...
29
Guide Starter Rope PLN-530049617
...
30
Isolator PLN-530049323
...
31
Isolator PLN-530036792
...
32
Housing-Left PLN-530049882
...
33
Screw PLN-530015886
...
34
Screw PLN-530015880
...
35
Bolt PLN-530015820
...
36
Clamp-Blower Tube PLN-530095592
...
37
Knob PLN-530049885
...
38
Handle PLN-530095469
...
39
Muffler Cover PLN-530049879
...
40
Screw PLN-530015880
...
41
Line Kit-Carb/Purge PLN-530069247
...
42
Assy-Fuel Pickup PLN-530095646
...
43
Assy-Fuel Tank PLN-545058007
...
44
Gasket-Fuel Tank PLN-530049527
...
45
Line Kit-Tank/Purge PLN-530069216
...
46
Assy - Fuel Cap w/retainer PLN-530057973
...
47
Gasket Kit PLN-530069813
...
48
Air Box PLN-530049316
...
49
Air Filter PLN-530049383
...
xx
Operator Manual Not Shown PLN-530087688
...
xx
Engine Stop Decal Not Shown PLN-530084403
