Weed Eater BC3100 Gas Trimmer

Model: BC3100 Gas Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

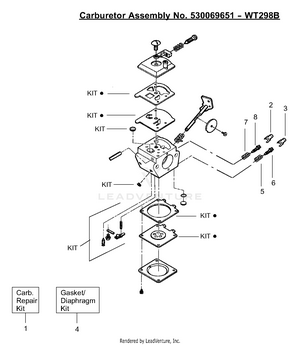

Carburetor Assembly - WT298B - P/N 530069651

...
...
1
Carburetor Repair Kit (KIT = Indicates Contents) PLN-530069829
...
2
Limiter Cap (High-Brown) New P/N For This IPL PLN-530038479
...
3
Limiter Cap (Low-Tan) New P/N For This IPL PLN-530038478
...
4
Gasket/Diaphragm Kit (DOT = Indicates Contents) PLN-530069844
...
530069651
Carburetor Assembly - WT298B PLN-530069651

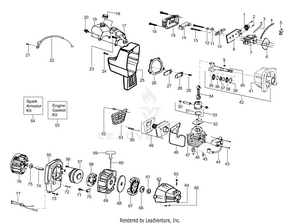

Engine Assembly

...
...
1
Assy-Bulb PLN-530038874
...
2
Screw PLN-530016091
...
3
Kit-Fuel Line (small) PLN-530069247
...
4
Kit-Fuel line (large) PLN-530069216
...
5
Assy-Fuel Pick-up PLN-530095646
...
6
Gasket-Carburetor PLN-530019156
...
7
Kit-Carburetor Ass'y. (Incls. Limiter Caps) PLN-530069651
...
8
Plate-Air Filter PLN-530037930
...
9
Key-Flywheel PLN-530015126
...
10
Shutter-Choke PLN-530038103
...
11
Washer PLN-530015254
...
12
Spacer-Choke PLN-530015852
...
13
Screw PLN-530015849
...
14
Filter-Air PLN-530027530
...
15
Cover-Air Filter PLN-530027529
...
16
Screw PLN-530015650
...
17
Bracket-Fuel Tank PLN-530029370
...
18
Assy-Fuel Cap PLN-530014347
...
19
Assy-Fuel Tank PLN-530038166
...
20
Screw PLN-530015843
...
21
Screw PLN-530015775
...
22
Throttle Cable PLN-530047040
...
23
Screw PLN-530015772
...
24
Screw PLN-530015771
...
25
Shroud PLN-530027923
...
26
Gasket-C'case/Shroud PLN-530019154
...
27
Reed Valve PLN-530027593
...
28
Stop-Reed PLN-530027594
...
29
SCREW 6-19X.437 PLN-545227101
...
30
Retainer-Piston Pin PLN-530015162
...
31
Ring-Piston PLN-530025875
...
32
GASKET CYL W/ ADHESIVE PLN-530019267
...
33
Kit-Piston (Incls. 30, 31 & Pin) PLN-530069899
...
34
Assy-Connecting Rod PLN-530010960
...
35
Bearing-Inner PLN-530032103
...
36
Ring-Retaining PLN-530015787
...
37
Seal-Crankshaft PLN-530019158
...
38
Bearing-Outer PLN-530032102
...
39
Retaining Ring-C'shaft PLN-530015789
...
40
Assy-Crankshaft PLN-530010934
...
41
Assy-Crankcase (Incls. 35-38) PLN-530014016
...
42
Assy-C'case/C'shaft (Incls.35-41) PLN-530071705
...
43
Screw New P/N For This IPL PLN-530016357
...
44
Ignition Module PLN-530039134
...
45
Screw PLN-530001624
...
46
Spark Plug (RCJ-6Y) New P/N For This IPL PLN-952030249
...
47
Kit-Cylinder New P/N For This IPL PLN-530071582
...
48
Shield PLN-530058957
...
49
Kit-Muffler PLN-530069310
...
50
Spring-Muffler PLN-530036409
...
51
Guard-Muffler PLN-530027781
...
52
Screw PLN-530015717
...
53
Kit-Engine Gasket (Incls. 6, 26 & 32) PLN-530069276
...
54
Kit-Spark Arrestor PLN-952701612
...
55
Fan Housing PLN-530027947
...
56
Screw PLN-530016080
...
57
Kit-Starter Pulley (Incls. 56) PLN-530071387
...
58
SPRING STARTER PLN-545008015
...
59
Handle-Starter PLN-530027569
...
60
Kit-Rope PLN-530069232
...
61
Nut PLN-530016320
...
62
Clutch Housing PLN-530014017
...
63
Screw PLN-530015767
...
64
Locknut PLN-530015768
...
65
Screw PLN-530015770
...
66
Washer-Bevel PLN-530015796
...
67
Kit-Clutch Ass'y PLN-530069254
...
68
Washer-Clutch PLN-530094189
...
69
Assy-Pulley Housing PLN-530014009
...
70
Retainer PLN-530027523
...
71
Screw PLN-530015496
...
72
Screw PLN-530015770
...
73
Screw PLN-530015769
...
74
Spacer-Clutch PLN-530027511
...
75
Washer PLN-530016030
...
76
Assy-Flywheel PLN-530039189
...
77
Leadwire/Grommet Ass'y. PLN-530047145

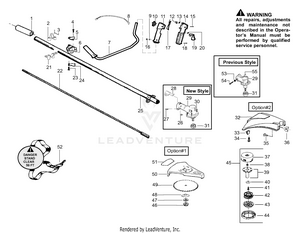

Handle & Shaft Assembly

...
...
1
Pad-Drive Shaft PLN-530054652
...
2
KIT HARNESS CLAMP PLN-530071605
...
3
Screw PLN-530015770
...
4
Screw PLN-530015791
...
5
Bracket-Handlebar PLN-530094572
...
6
Clamp-Handlebar PLN-530012207
...
7
Assy-Handlebar PLN-530047139
...
8
Assy-Wire Harness PLN-530053255
...
9
Washer, Split Lock PLN-530016285
...
10
Switch-Rocker PLN-503718201
...
11
Throttle Hsg. Right PLN-502208607
...
12
Throttle Lock PLN-502209602
...
13
Spring-Throttle Lock PLN-530403152
...
14
Throttle Hsg. Left PLN-502208507
...
15
Screw PLN-503210719
...
16
Nut PLN-530016284
...
17
Throttle Lockout PLN-502199403
...
18
Screw PLN-530015933
...
19
Trigger-Throttle PLN-502199203
...
20
Spring-Trigger PLN-502199301
...
21
Clamp-(lower) PLN-530055394
...
23
Screw PLN-530015791
...
24
Bracket-Handlebar PLN-530094572
...
26
Screw New P/N For This IPL PLN-530016371
...
27
Screw New P/N For This IPL PLN-530016014
...
28
Bracket-Shield PLN-530095812
...
30
Screw PLN-530016312
...
32
Kit-Shield Ass'y. (Incls. 33-36) PLN-530069779
...
33
Line Limiter PLN-530052285
...
34
Screw PLN-530015805
...
35
Bolt PLN-530015820
...
36
Nut PLN-530091373
...
37
Accy--Cutting Head PLN-952711550
...
38
Spring PLN-530094956
...
39
Kit-Locking Plate PLN-530069312
...
40
Washer PLN-530015123
...
41
SCREW PLN-530016386
...
42
Spool w/Line PLN-952711564
...
43
Release Button PLN-530094522
...
44
Cover PLN-530094521
...
45
Accy-Cutting Head (Incls. 37-44) PLN-952711565
...
46
Nut-Flange PLN-530015793
...
47
Washer-Spring Beve PLN-530016240
...
49
Brush Blade PLN-952711585
...
50
Kit-Blade Shield PLN-530071383
...
51
Decal Blade Direction New P/N For This IPL PLN-530056335
...
52
Shoulder Strap PLN-530094417
...
53
Washer (Type 1,2,3) PLN-530015328
...
54
Screw (Type 1,2,3) PLN-530016140
...
55
Screw (Type 1,2,3) PLN-530015650
...
xx
Manual Not Shown PLN-530088776
...
xx
Manual (Current) Not Shown New P/N For This IPL PLN-530163107
...
xx
Manual Not Shown PLN-530088132
...
xx
Hex Wrench (3/16) Not Shown PLN-530031098
...
xx
Hex Wrench (5/32) Not Shown PLN-530031159
...
xx
Shaft Warning Decal Not Shown PLN-530055349
