product name

Weed Eater BC2400 Gas Trimmer Type 6

Model: BC2400 Gas Trimmer Type 6

Save Part Not Listed?
product name

Carburetor Assembly (WT380) 530069998

...
...
1
Carburetor Repair Kit (KIT=Indicates Contents) PLN-530069829
...
2
Limiter Cap (High-Red) PLN-530038318
...
3
Limiter Cap (Low-Blue) PLN-530038317
...
4
Gasket/Diaphragm Kit (DOT=Indicates Contents) PLN-530069844
...
5
Needle Spring-Low Speed PLN-530035293
...
6
Needle-Low Speed PLN-530035433
...
7
Needle Spring-High Speed PLN-530035295
...
8
Needle-High Speed PLN-530035388
...
530069998
Carburetor Assembly - WT-639 PLN-530071639

Carburetor Assembly (WT639) 530071639

...
...
530071639
Carburetor Assembly - WT-639 PLN-530071639

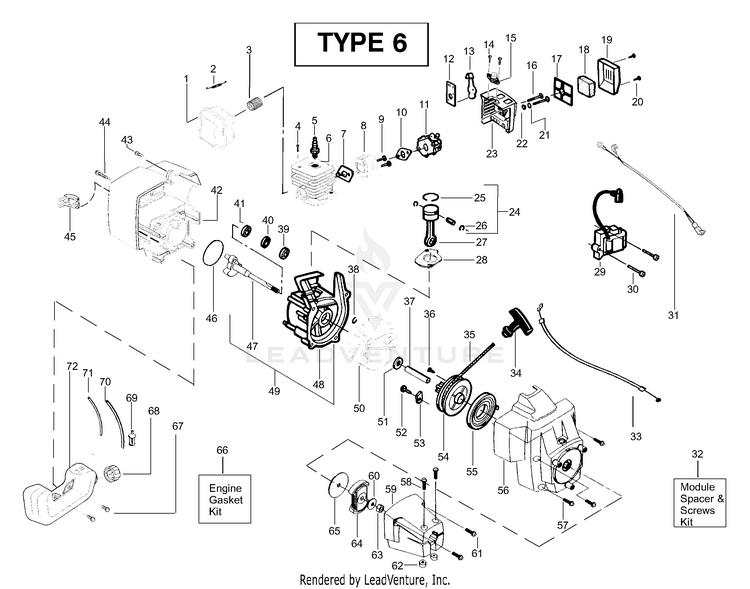

Engine Assembly Type 6

...
...
1
Kit - Muffler (Incl. 2,3) PLN-530071396
...
2
Spring-Muffler PLN-530042088
...
3
Kit-Spark Arrestor PLN-530071391
...
4
Screw-Cylinder PLN-530015953
...
5
Spark Plug (RCJ-6Y) PLN-952030249
...
6
Cylinder PLN-530012416
...
7
Gasket-Cyl./Carb. (kit) PLN-530071363
...
8
Adapter-Carb. PLN-530057635
...
9
Screw PLN-530016014
...
10
Gasket-Carb. (kit) PLN-530071363
...
11
Kit-Carb. Assy. (WT-639) PLN-530071639
...
12
Choke Plate Mounting PLN-530037326
...
13
Shutter-Choke PLN-530038102
...
14
Screw-Air Purge PLN-530015780
...
15
Assy-Air Purge PLN-530038874
...
16
Screw PLN-530016393
...
17
Plate - Filter Support PLN-530037413
...
18
Foam-Air Filter PLN-530037331
...
19
Cover-Air Box PLN-530037292
...
20
Screw PLN-530016349
...
21
Spacer-Choke PLN-530015852
...
22
Washer PLN-530015254
...
23
Box-Air Filter PLN-530037969
...
24
Kit-Piston (Incl. 25, 26 & Pin) PLN-530071833
...
25
RING PISTON PLN-545154001
...
26
Retainer-Piston Pin PLN-530015162
...
27
CONNECTING ROD ASSY PLN-530049817
...
28
Gasket-Cylinder (kit) PLN-530071363
...
29
Ignition Module PLN-530039163
...
30
Screw PLN-530015954
...
31
Assy-Switch Wire PLN-530047278
...
32
Kit-Module Spacer & Screws PLN-530071731
...
33
Assy-Throttle Cable PLN-530056241
...
34
Handle-Starter PLN-530027569
...
35
Kit - Rope PLN-530069232
...
36
Screw PLN-530016080
...
37
Spacer-Flywheel PLN-530037705
...
38
Retain. Ring-C'shaft PLN-530015941
...
39
Outer Bearing PLN-530055728
...
40
Kit-C'case Seal PLN-530071615
...
41
Inner Bearing PLN-530032125
...
42
Shroud-Rear PLN-530056547
...
43
Screw PLN-530015934
...
44
SCREW PLN-530016386
...
45
Guard-Muffler PLN-530054536
...
46
O-Ring-C'case/Shrd (kit) PLN-530071363
...
47
C'case & C'shaft Ass'y. PLN-530071625
...
48
Assy-Crankcase (Incl. 39-41) PLN-530071627
...
49
Assy-C'case & C'shaft (Incl. 38,47,48) PLN-530071625
...
50
FLYWHEEL ASSY PLN-545221701
...
51
Washer PLN-530015149
...
52
Screw PLN-530015775
...
53
Retainer PLN-530027523
...
54
STARTER PULLEY KIT (Incl 36) PLN-530071786
...
55
STARTER SPRING PLN-545008010
...
56
Assy.-Fan Hsg PLN-530071392
...
57
SCREW PLN-530016386
...
58
Screw PLN-530015767
...
59
Assy-Clutch Hsg. PLN-530014923
...
60
Washer-Flat PLN-530015828
...
61
Screw PLN-530015886
...
62
Nut PLN-530015768
...
63
Nut-Clutch PLN-530626605
...
64
Assy-Clutch PLN-530069491
...
65
Washer-Clutch PLN-530015611
...
66
Kit-Engine Gasket (Incl. 7,10,28,46) PLN-530071363
...
67
Retainer-Tank PLN-530016379
...
68
Assy-Fuel Cap PLN-530014347
...
69
Assy-Fuel Pickup PLN-530095646
...
70
Kit-Fuel Line PLN-530069247
...
71
Kit-Fuel Line PLN-530069216
...
72
Assy-Fuel Tank PLN-530057046

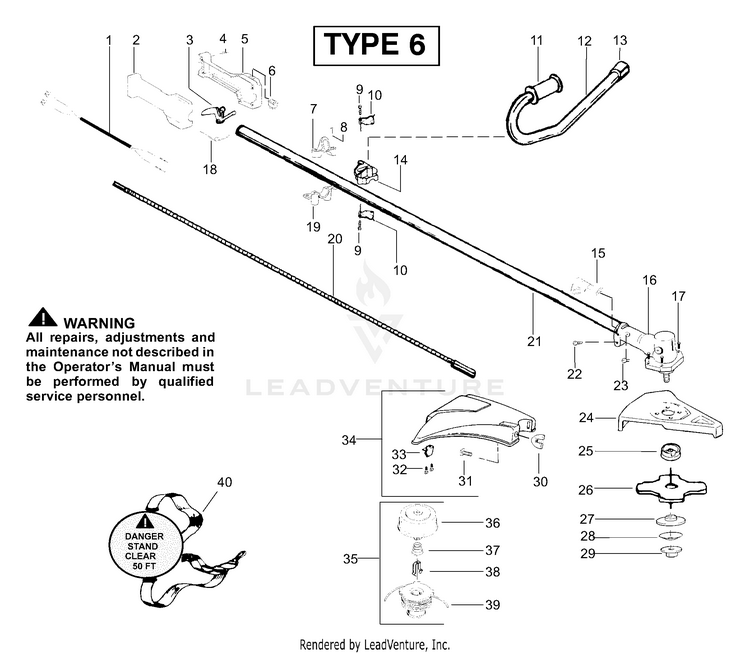

Handle, Chassis & Bar Assembly Type 6

...
...
2
Assy-Leadwire PLN-530047307
...
2
Hsg.-Throttle Right PLN-530053968
...
3
Lever-Throttle PLN-530056334
...
4
Screw PLN-530015886
...
5
Hsg.-Throttle Left PLN-530053969
...
6
Kit-On/Off Switch PLN-530069572
...
7
KIT HARNESS CLAMP PLN-530071605
...
8
Screw PLN-530015770
...
9
Screw PLN-530015791
...
10
Bracket-Handlebar PLN-530094572
...
11
Grip-Handlebar PLN-530092086
...
12
Kit-Handlebar Assy. w/decal PLN-530056300
...
13
End Cap-Handlebar PLN-530092192
...
14
Clamp-Handlebar PLN-530012207
...
15
Bracket-Shield PLN-530095812
...
16
Kit-Gear Box Ass'y. PLN-530071585
...
17
Screw PLN-530016312
...
18
Spring-lever return PLN-530027597
...
19
Clamp-Lower PLN-530055394
...
20
Shaft-Flex PLN-530094585
...
21
Kit-Drive Shaft Assy PLN-530071338
...
22
Screw PLN-530016014
...
23
Screw PLN-530016301
...
24
Kit-Metal Shield PLN-530071383
...
25
Dust Cup PLN-530095815
...
26
Accy-4 Point Blade PLN-952701611
...
27
Washer PLN-530095816
...
28
Washer-Belleville PLN-530016240
...
29
Nut-Flange PLN-530015793
...
30
Nut PLN-530091373
...
31
Bolt PLN-530015820
...
32
Screw PLN-530015805
...
33
Line Limiter PLN-530052285
...
34
Kit-Shield Ass'y. (Incl.30-33) PLN-530069779
...
35
Accy-Cutting Head (Incl. 36-39) PLN-952711550
...
36
Assy-Hub PLN-530095772
...
37
Spring-Return PLN-530053241
...
38
Retainer-Spool PLN-530401957
...
39
Accy-Spool w/Line PLN-952711551
...
40
Assy-Shoulder Strap PLN-530094417
...
xx
Manual-Operator Not Shown PLN-530163429
...
xx
Decal-Blade Direction Not Shown PLN-530056335
...
xx
Hex Wrench (5/32) Not Shown PLN-530031159
...
xx
Hex Wrench (3/16) Not Shown PLN-530031098
...
xx
Decal-H'bar Warning Not Shown PLN-530027778
...
xx
Decal-Shaft Warning Not Shown PLN-530055349
