product name

Weed Eater 980 Gas Blower

Model: 980 Gas Blower

Save
 Part Not Listed?Part Not Listed?
product name

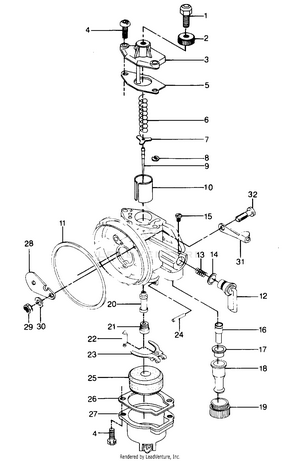

CARBURETOR

...
...
1
Adjuster - cable PLN-530094361
...
2
Nut - lock PLN-530094362
...
3
Cover - Body PLN-530094363
...
4
Screw (4 x 12mm) PLN-530094364
...
5
Gasket PLN-530094365
...
6
Spring - throttle PLN-530094366
...
7
Retainer - spring PLN-530094367
...
8
E-Ring PLN-530094368
...
9
Needle - jet PLN-530094369
...
10
Valve - throttle PLN-530094370
...
11
O-Ring PLN-530094371
...
12
Lever PLN-530094372
...
13
Spring PLN-530094373
...
14
O-Ring PLN-530094374
...
15
Screw - guide PLN-530094375
...
16
Strainer PLN-530094376
...
17
Gasket PLN-530094377
...
18
Connector PLN-530094378
...
19
Nut - Connector PLN-530094379
...
20
Jet - needle PLN-530094380
...
21
Jet - main (#88) PLN-530094381
...
22
Valve - needle PLN-530094382
...
23
Hinge, float PLN-530094383
...
24
Pin - float PLN-530094384
...
25
Float PLN-530094385
...
26
Gasket PLN-530094386
...
27
Float Bowl Assembly PLN-530094387
...
28
Valve - choke PLN-530094388
...
29
Nut PLN-530094389
...
30
Washer - spring PLN-530094390
...
31
Lever - choke PLN-530094391
...
32
Bolt - choke PLN-530094392

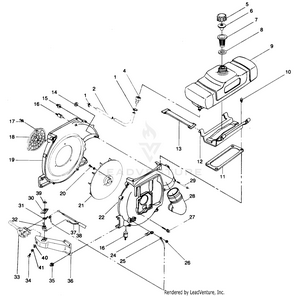

FUEL HOUSING

...
...
1
Clamp - Fuel Housing (obsolete) (obsolete) PLN-094287
...
2
Fuel Hose PLN-530094286
...
4
Union Assembly PLN-530094283
...
5
Cap - Fuel PLN-530094281
...
6
Breather PLN-530094280
...
7
Strainer PLN-530094279
...
8
Washer - Rubber PLN-530094278
...
9
Fuel Tank PLN-530094277
...
10
Bolt (6 x 12mm) - Hex PLN-530094276
...
11
Gasket PLN-530094272
...
12
Tank Base PLN-530094273
...
13
Tank Strap - Rubber PLN-530094282
...
14
Flange Nut (5mm) PLN-530094265
...
15
Bolt (6 x 25mm) - Hex PLN-530094268
...
16
Isolator PLN-530094271
...
17
Screw (6 x 14mm) PLN-530094269
...
18
Fan Cover PLN-530094261
...
19
Fan Case - Front PLN-530094258
...
20
Bolt (6 x 25mm) - Hex PLN-530094267
...
21
Fan PLN-530094260
...
22
Fan Case - Rear PLN-530094259
...
24
Clip - Fuel Hose PLN-530094263
...
25
Grounding Wire PLN-530094294
...
26
Screw (6 x 12mm) PLN-530094270
...
27
Bolt (6 x 45mm) - Hex PLN-530094266
...
28
Elbow PLN-530094262
...
29
Screw (5 x 55mm) PLN-530094264
...
30
Switch Plate PLN-530094292
...
31
Grounding Connector PLN-530094293
...
32
Grounding Switch PLN-530094291
...
33
Throttle Lever PLN-530094290
...
34
Bolt (6 x 10mm) - Hex PLN-530094298
...
35
Screw (5 x 16mm) PLN-530094289
...
36
Control Arm PLN-530094288
...
37
Electrical Wire PLN-530094296
...
38
Tube - Throttle Wire PLN-530094297
...
39
Nut - Hex - 11mm PLN-530094419
...
40
Washer - Flat - 6mm (outside vendor) (Outside vendor) PLN-094420
...
41
Lockwasher - 6mm PLN-530094421

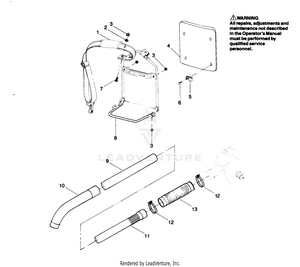

PACKBACK & TUBES

...
...
1
Shoulder Band PLN-530094253
...
2
Washer - Steel PLN-530094254
...
3
Flange Nut (6mm) PLN-530094256
...
4
Backpack Pad PLN-530094250
...
5
Clamp - Back Pad PLN-530094251
...
6
Bolt (5 x 12mm) - Hex - Sems PLN-530094257
...
7
Screw (6 x 20mm) PLN-530094255
...
8
Backpack Frame PLN-530094244
...
9
Middle Tube PLN-530094301
...
10
Bent Tube PLN-530094302
...
11
Bast Tube PLN-530094300
...
12
Clamp PLN-530094303
...
13
Flexible Tube PLN-530094299

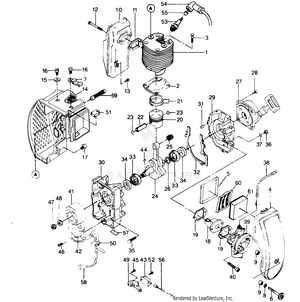

POWER UNIT

...
...
1
Cylinder PLN-530094304
...
2
Gasket PLN-530094305
...
3
Bolt PLN-530094306
...
4
Air Cleaner Ass'y. PLN-530094307
...
5
Gasket PLN-530094308
...
6
Bolt PLN-530094309
...
7
Holder PLN-530094310
...
8
O - Ring PLN-530094311
...
9
Tube PLN-530094312
...
10
Muffler Ass'y. PLN-530094313
...
11
Gasket PLN-530094314
...
12
Bolt PLN-530094315
...
13
Screw (6 x 14mm) PLN-530094316
...
14
Cover - Cylinder PLN-530094317
...
15
Washer PLN-530094318
...
16
Bolt PLN-530094319
...
17
Screw PLN-530094320
...
18
Reed Valve Ass'y. PLN-530094321
...
19
Gasket PLN-530094322
...
20
Piston PLN-530094323
...
21
Piston Ring Set PLN-530094324
...
22
Pin - Piston PLN-530094325
...
23
Ring - Snap PLN-530094326
...
24
Crank Shaft Ass'y. PLN-530094327
...
25
Bearing - Needle PLN-530094328
...
26
Shim (obsolete) (obsolete) PLN-094329
...
27
Recoil Starter Ass'y. PLN-530094330
...
28
Screw (4 x 16mm) PLN-530094331
...
29
Crankcase PLN-530094332
...
30
Crankcase PLN-530094333
...
31
Pin - Dowel PLN-530094334
...
32
Gasket PLN-530094335
...
33
Bearing - Ball PLN-530094336
...
34
Seal - Oil PLN-530094337
...
35
Screw (6 x 30mm) PLN-530094338
...
36
Bolt (6 x 8mm) PLN-530094339
...
37
Gasket PLN-530094340
...
38
Cable PLN-530094341
...
39
Carburetor Ass'y. PLN-530094342
...
40
Screw (6 x 45mm) PLN-530094343
...
41
Flywheel PLN-530094344
...
42
Coil - Ignition PLN-530094345
...
43
Igniter PLN-530094346
...
44
Key PLN-530094347
...
45
Screw (5 x 8mm) PLN-530094348
...
46
Screw (5 x 20mm) PLN-530094349
...
47
Nut (10mm) PLN-530094350
...
48
Washer PLN-530094351
...
49
Bracket PLN-530094352
...
50
Grommet PLN-530094353
...
51
Grommet PLN-530094354
...
52
Screw (4 x 6mm) PLN-530094355
...
53
Plug - Spark (NGK B75) (outside vendor) (outside vendor) PLN-094356
...
54
Boot - Spark Plug PLN-530094357
...
55
Connector PLN-530094358
...
56
Wire - Lead PLN-530094359
...
58
Wire Connector (outside vendor) (outside vendor) PLN-094422
...
59
Spark Arrestor Ignition PLN-530094428
...
60
Air Filter PLN-530094471
...
61
Retainer (outside vendor) (outside vendor) PLN-094472
...
...
...
