Weed Eater 589 Electric Trimmer

Model: 589 Electric Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

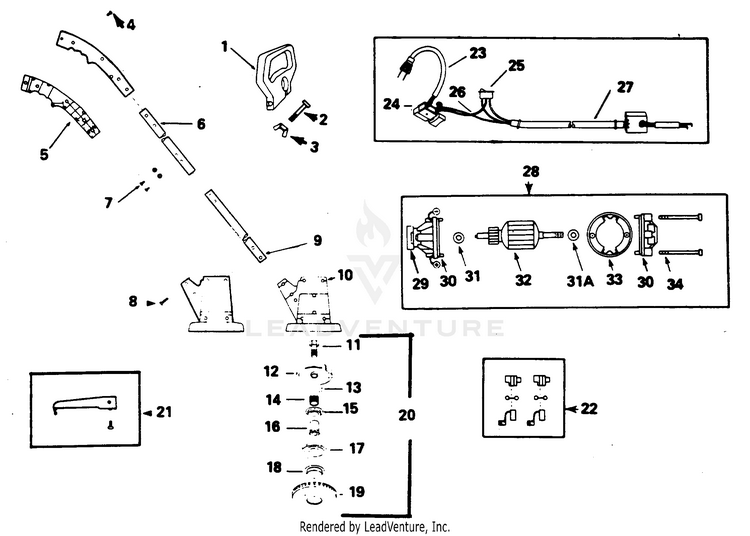

TRIMMER ASSEMBLY

...
...
1
ASSIST HANDLE PLN-530092637
...
2
BOLT PLN-530092638
...
3
WING NUT PLN-530092049
...
4
SCREW PLN-530092598
...
5
TRIGGER HANDLE SET PLN-530092699
...
6
TUBE, UPPER PLN-530092641
...
7
TUBE FASTENER KIT PLN-530092626
...
8
SCREW PLN-530092624
...
9
TUBE, LOWER PLN-530092644
...
10
MOTOR HOUSING SET PLN-530092694
...
11
DRIVE ADAPTOR PLN-530092672
...
12
HUB w/LINE SAVER PLN-530092673
...
13
LINE SAVER PLN-530092134
...
14
Spring PLN-530340007
...
15
Cap Spring PLN-530328929
...
16
DRIVE GEAR PLN-530092069
...
17
SPOOL, w/LINE PLN-702509
...
18
Tap Button PLN-530401183
...
19
COVER PLN-530092133
...
20
TAP-N-GO HEAD ASSEMBLY PLN-530092702
...
21
LINE LIMITER KIT PLN-952701522
...
22
BRUSH KIT PLN-530092652
...
23
POWER SUPPLY CORD PLN-530090866
...
24
SWITCH PLN-530090824
...
25
SWITCH, TOGGLE (For 92705 Harness) PLN-530092703
...
25
SWITCH, TOGGLE (For 92706 Harness) PLN-530092704
...
26
WIRE, JUMPER PLN-530092705
...
27
HARNESS w/RECTIFIER & TOGGLE SWITCH PLN-530092706
...
28
MOTOR PLN-530092656
...
29
INSULATOR PLN-530092657
...
30
END BELL SET PLN-530092658
...
31
WASHER, THRUST .025" PLN-530092659
...
31A
WASHER, THRUST .010" PLN-530092661
...
32
ARMATURE PLN-530092662
...
33
FIELD ASSEMBLY PLN-530092663
...
34
SCREW PLN-530092664
...
...
...
