product name

Weed Eater 559 Electric Trimmer

Model: 559 Electric Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

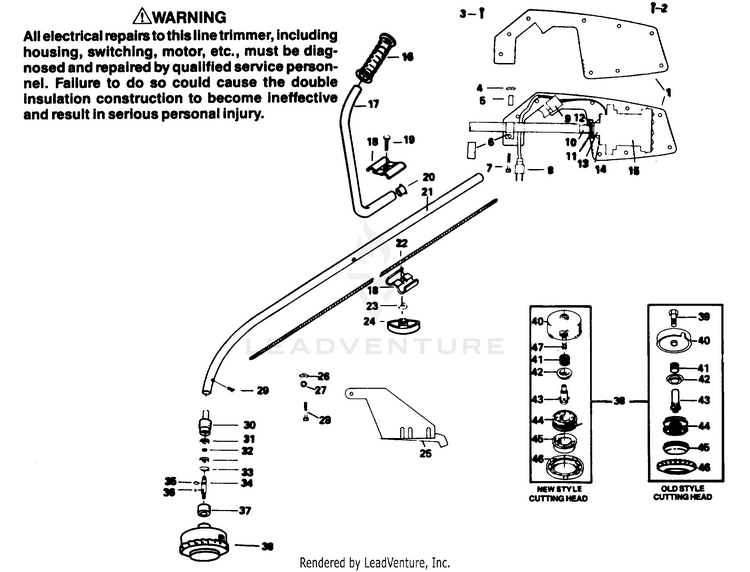

TRIMMER ASSEMBLY

...
...
1
Motor Housing Set PLN-530092678
...
2
Screw PLN-530092679
...
3
Screw PLN-530090827
...
4
Wing Nut PLN-530092049
...
5
Tube Clamp Bushing PLN-530092681
...
6
Clamp PLN-530092682
...
7
Screw PLN-530092683
...
8
Power Cord PLN-530093856
...
9
Switch PLN-530090824
...
10
Drive Coupling PLN-530092684
...
11
Collar PLN-530092685
...
12
Screw PLN-530092686
...
13
Lube Connector PLN-530092687
...
14
Screw PLN-530092688
...
15
Motor Assembly PLN-530092689
...
16
Grip PLN-530091402
...
17
Handle Bar PLN-530091802
...
18
Clamp PLN-530091338
...
19
Bolt PLN-530091342
...
20
Handle Bar Plug PLN-530091816
...
21
Drive Shaft Housing PLN-530091301
...
22
Drive Shaft PLN-530092261
...
23
Washer PLN-530091341
...
24
Knob PLN-530091339
...
25
Shield PLN-530091979
...
26
Wing Nut PLN-530092049
...
27
Flat Washer PLN-530092062
...
28
Bolt PLN-530092061
...
29
Screw PLN-530015518
...
30
Bearing Housing PLN-530091315
...
31
Bearing PLN-530091316
...
32
Spacer PLN-530091317
...
33
Retaining Ring PLN-530092692
...
34
Arbor Shaft PLN-530091319
...
35
Retaining Ring PLN-530091318
...
36
Woodruff Key PLN-530091322
...
37
Dust Cover PLN-530091323
...
38
Cutting Head Assembly New Style PLN-530093894
...
39
Bolt - Drive Adaptor - Old Style PLN-530092064
...
40
Hub w/Line Savers - Old Style PLN-530092131
...
40
Hub PLN-530071295
...
41
Spring PLN-530340007
...
42
Cap Spring PLN-530328929
...
43
Drive Gear Old Style PLN-530092069
...
43
Drive Gear New Style PLN-530093897
...
44
Spool, Wound PLN-952701523
...
45
Tap Button PLN-530401183
...
46
Cover PLN-530092133
...
47
Line Saver - New Style only PLN-530093898
...
...
...
