Weed Eater 509 Electric Trimmer Type 1

Model: 509 Electric Trimmer Type 1

Save
 Part Not Listed?Part Not Listed?
product name

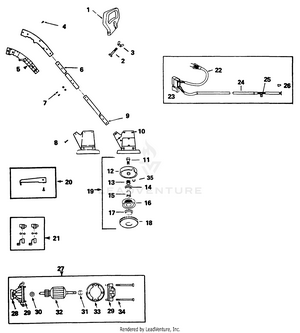

Electric Trimmer Assembly Type 1

...
...
1
ASSIST HANDLE PLN-92637
...
2
BOLT PLN-92638
...
3
WING NUT PLN-92049
...
4
SCREW PLN-92598
...
5
TRIGGER HANDLE SET PLN-92639
...
6
TUBE, UPPER PLN-92641
...
7
TUBE FASTENER KIT PLN-92626
...
8
SCREW PLN-92624
...
9
TUBE, LOWER PLN-92644
...
10
MOTOR HOUSING SET PLN-92645
...
11
DRIVE ADAPTOR PLN-92672
...
12
HUB w/LINE SAVER PLN-92673
...
13
SPRING PLN-92067
...
14
SPRING ADAPTOR PLN-92068
...
15
DRIVE GEAR PLN-92069
...
16
SPOOL, WOUND PLN-702509
...
17
RELEASE BUTTON PLN-93387
...
18
COVER PLN-92133
...
19
TAP-N-GO HEAD ASSEMBLY PLN-92676
...
20
LINE LIMITER KIT PLN-701522
...
21
BRUSH KIT PLN-92652
...
22
POWER CORD PIGTAIL PLN-90866
...
23
SWITCH PLN-90824
...
24
HARNESS w/DIODE PLN-92671
...
25
DIODE PLN-92677
...
26
CONNECTOR PLN-90876
...
27
MOTOR PLN-92656
...
28
INSULATOR PLN-92657
...
29
END BELL SET PLN-92658
...
30
WASHER-THRUST, .025" PLN-92659
...
31
WASHER-THRUST, .010" PLN-92661
...
32
ARMATURE PLN-92662
...
33
FIELD ASSEMBLY PLN-92663
...
34
SCREW PLN-92664
...
35
LINE SAVER PLN-92134
...
...
...
