product name

Weed Eater 31WG Gas Trimmer, Weed'N Go

Model: 31WG Gas Trimmer, Weed'N Go 31WG Gas Trimmer

Back To Assemblies

Save Part Not Listed?
product name

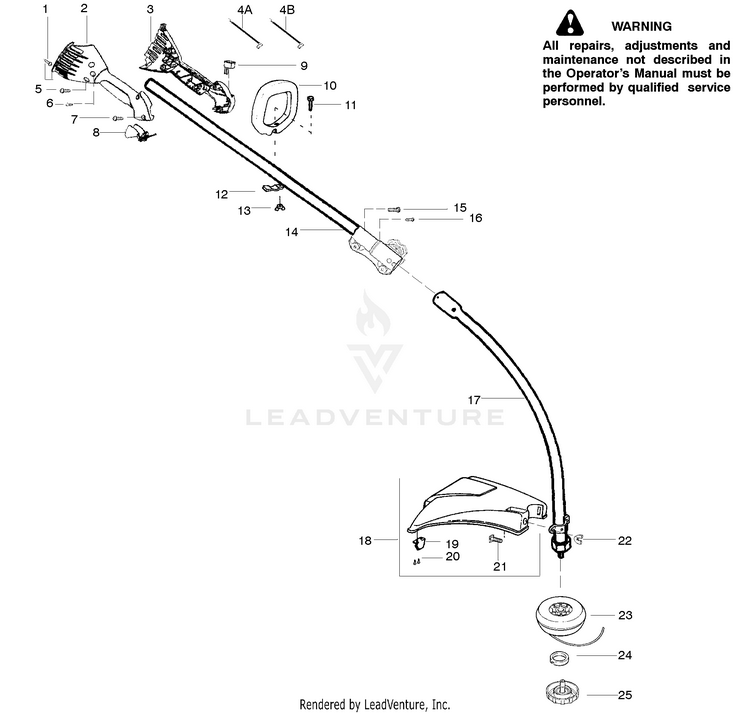

Shaft

...
...
1
Screw-handle/fan hsg PLN-530015886
...
2
Throttle Hsg. (Right) PLN-530054837
...
3
Kit-Left Throttle Hsg. PLN-530071553
...
4
Assy-Front Wire, ((A) Lower Front Wire) PLN-530054943
...
4
Assy-Front Wire, ((B) Upper Front Wire) PLN-530055724
...
5
Screw PLN-530015886
...
6
Screw-Alignment PLN-530015805
...
7
Screw PLN-530015886
...
8
Trigger PLN-530054940
...
9
Kit-Switch PLN-530069572
...
10
Assy-Handle-Assist PLN-530055699
...
11
Bolt PLN-530015820
...
12
Clamp-Assist Handle PLN-530088416
...
13
Nut PLN-530091373
...
14
Assy-Upper Shaft (incl. flex shaft & coupler) PLN-530071607
...
15
Screw PLN-530016344
...
16
Screw-Alignment PLN-530016343
...
17
Assy-Lower Shaft (incl. flex shaft) PLN-530071557
...
18
Kit-Shield Ass'y. (Incl.18-21) PLN-530069779
...
19
Line Limiter PLN-530052285
...
20
Screw-Line Limiter PLN-530015805
...
21
Bolt PLN-530015820
...
22
Nut PLN-530091373
...
23
Accy-Spool w/.080 line PLN-952711574
...
24
Guide-Centrex Line PLN-530403949
...
25
Assy-Cap 3/8 RH PLN-530095763
...
25
Operator Manual Not Shown PLN-530163734
...
25
Decal-Upper Shaft Not Shown PLN-530056221
...
25
Decal-Shaft Warning Not Shown PLN-545209101
...
25
Decal-Starting Instruction Not Shown PLN-530057369
