Weed Eater 3000B Blower Attachment Type 2, Weed'n Blow

Model: 3000B Blower Type 2

Back To Assemblies

Save Part Not Listed?
product name

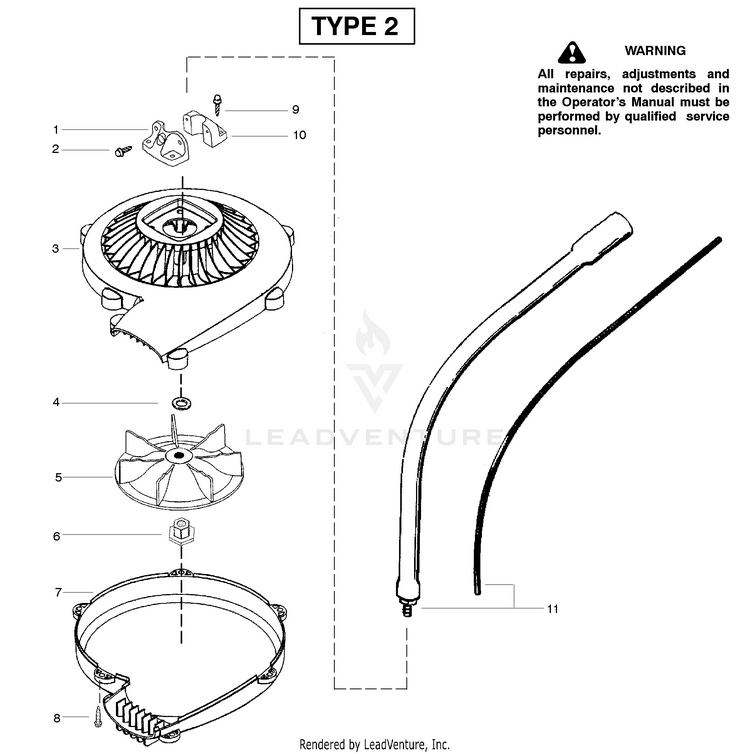

Housing Type 2

...
...
1
Clamp-Right PLN-530096026
...
2
Screw PLN-530015814
...
3
Hsg.-Blower (upper) PLN-530096042
...
4
Washer PLN-530016389
...
5
Impeller PLN-530055123
...
6
Arbor-Impeller PLN-530095893
...
7
Hsg.-Blower (lower) PLN-530095892
...
8
Screw PLN-530016273
...
9
Screw PLN-530016179
...
10
Clamp-Left PLN-530096025
...
11
Assy-Lower Driveshaft (incl. flex) PLN-530071609
...
11
Manual Not Shown PLN-545133451
...
11
Hanger-Attachment Not Shown PLN-530150031
...
11
Decal-Impeller Hsg. Not Shown PLN-530056153
