Weed Eater 2620 Gas Trimmer

Model: 2620 Gas Trimmer

Save Part Not Listed?
product name

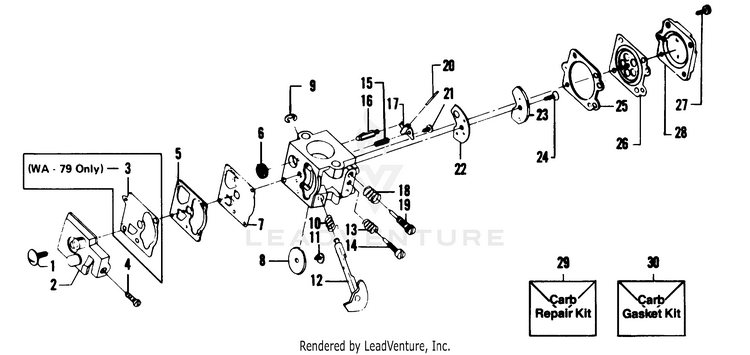

CARBURETORS WA-149, WA-79 BREAKDOWN

...
...
1
Screw - Pump Cover PLN-530035017
...
2
WA - 79 PLN-530035154
...
2
WA - 149 (# 35183) PLN-530035191
...
3
Diaphragm - Pump (WA - 79 Only) PLN-530035135
...
4
Screw - Idle Adjustment PLN-530035156
...
5
WA - 79 PLN-530035009
...
5
GASKET PLN-504130906
...
6
Screen - Inlet Included in Carburetor Kwik Repair Kit. PLN-530035178
...
7
WA-79 PLN-530035152
...
7
PUMP DIAPHRAGM PLN-504130807
...
8
Valve - Throttle PLN-530035133
...
9
Clip - Throttle Shaft PLN-530035007
...
10
Spring - Throttle Return PLN-530035138
...
11
Screw - Throttle Valve Included in Carburetor Kwik Repair Kit. PLN-530035015
...
12
Shaft Assembly - Throttle PLN-530035132
...
13
Spring - Idle Needle PLN-530035023
...
14
Needle - Idle PLN-530035141
...
15
WT-141 - T1 Included in Carburetor Kwik Repair Kit. PLN-530035188
...
16
Valve - Inlet Needle Included in Carburetor Kwik Repair Kit. PLN-530035008
...
17
Metering Lever Included in Carburetor Kwik Repair Kit. PLN-505520127
...
18
Spring - Hi Speed Needle PLN-530035036
...
19
H-NEEDLE PLN-501782201
...
20
Pin Included in Carburetor Kwik Repair Kit. PLN-505520125
...
21
Screw - Metering Lever Pin PLN-530035016
...
22
GASKET PLN-501781301
...
23
Plate - Circuit PLN-530035042
...
24
Screw - Circuit Plate Included in Carburetor Kwik Repair Kit. PLN-530035137
...
25
Gasket - Metering Diaphragm PLN-530035151
...
26
DIAPHRAGM PLN-503896701
...
27
Screw - Assembly - Metering Cover & Throttle Shaft Clip PLN-530035153
...
28
Cover - Metering Diaphragm PLN-530035149
...
29
WA - 79 PLN-530035144
...
29
WA - 149 (#35183) PLN-530035185
...
30
WA - 79 Included in Carburetor Kwik Repair Kit. PLN-530035145
...
30
Gasket Diaphragm Kit Included in Carburetor Kwik Repair Kit. PLN-530069844

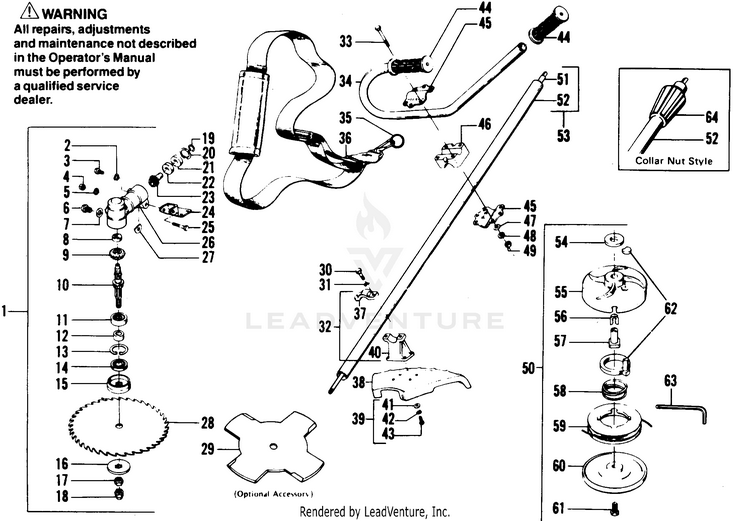

CUTTING HEAD(S) & DRIVE SHAFT

...
...
1
Gear Box Ass'y w/fasteners (Inc. 2-27) PLN-530093744
...
2
Lockwasher - Housing Bolt PLN-530091578
...
3
Bolt - 6 x 12mm PLN-530091579
...
4
Nut - 6mm - Housing (Gear Box) PLN-530093703
...
5
Lockwasher - 6mm - Housing (Gear Box) PLN-530091578
...
6
Oil Plug PLN-530091581
...
7
Washer PLN-530091582
...
8
Bearing - Gear Box PLN-530091586
...
9
Gear - Bevel PLN-530091587
...
10
Shaft - Splined Drive PLN-530091588
...
11
Ball Bearing PLN-530091598
...
12
Collar - Shaft PLN-530091591
...
13
Snap Ring PLN-530091592
...
14
Oil Seal PLN-530091589
...
15
Blade Adaptor - Upper PLN-530092143
...
16
Blade Adaptor - Lower PLN-530091594
...
17
Locknut PLN-530091595
...
18
Nut PLN-530091596
...
19
Snap Ring - Gear Housing PLN-530091573
...
20
Snap Ring - Gear Housing Bearing PLN-530091574
...
21
Bearing - Sealed Pinion Gear PLN-530091575
...
22
Bearing - Pinion Gear PLN-530092329
...
23
Pinion Gear PLN-530091576
...
24
Bracket-Shield to Gear Box, See Service Ref.1 PLN-530093706
...
25
Bolt 6 x 42mm - Housing (Gear Box) PLN-530093704
...
26
Housing - Gear Box PLN-530091585
...
27
Fiber - Filler Washer PLN-530091584
...
28
10" Brush Blade PLN-952701547
...
29
8" Weed Blade (Optional) PLN-952701546
...
30
Bolt - 5 x 25mm PLN-530091616
...
31
Washer - 5mm PLN-530091615
...
32
Shield Mounting Bracket Ass'y (Inc. 37 & 40) PLN-530091569
...
33
Bolt -#1/4 - 20 x 1 - 7/8" - Handlebar PLN-530015405
...
34
Handlebar PLN-530093169
...
35
Key-Ring - Shoulder Strap PLN-530092231
...
36
Shoulder Harness Strap PLN-530093086
...
37
Shield Mounting Bracket - Top PLN-530091613
...
38
Shield w/fasteners PLN-530093743
...
39
Shield Mounting Kit (Inc. 41,42,43 - 4 each) PLN-530091572
...
40
Shield Mounting Bracket - Bottom PLN-530091614
...
41
Washer - 4mm - Flat PLN-530091622
...
42
Lockwasher - 4mm PLN-530091623
...
43
Screw - 4mm x 16mm PLN-530093705
...
44
Grip - Handlebar PLN-530092086
...
45
Handlebar Clamp PLN-530092079
...
46
Handlebar Block PLN-530092084
...
47
Washer - Handlebar PLN-530001503
...
48
Lockwasher - Handlebar PLN-530001642
...
49
Nut - #1/4 - 20 PLN-530015197
...
50
Cutting Head Assembly (Inc. 54-63) PLN-530093954
...
51
Drive Shaft PLN-530093087
...
52
Collar Nut Style (Incl. #64) PLN-530092113
...
52
Pinch Clamp Style PLN-530093088
...
53
48" Drive Shaft Housing and Drive Shaft Ass'y (Inc. 51 & 52) PLN-530092363
...
54
Spacer PLN-530091664
...
55
Hub PLN-530091656
...
56
Line Saver PLN-530091425
...
57
Drive Adaptor PLN-530091423
...
58
Spring PLN-530091657
...
59
Spool w/line PLN-952701526
...
60
Cover - Cutting Head PLN-530091424
...
61
Screw - #3/8 - 16 x 7/8" - Cover PLN-530091662
...
62
Release Button Ass'y (Incl. Lock Ring) PLN-530093602
...
63
Allen Wrench - Cutting Head PLN-530091663
...
64
Collar Nut PLN-530011726
...
xx
Operator's Manual Not Shown. PLN-530064696

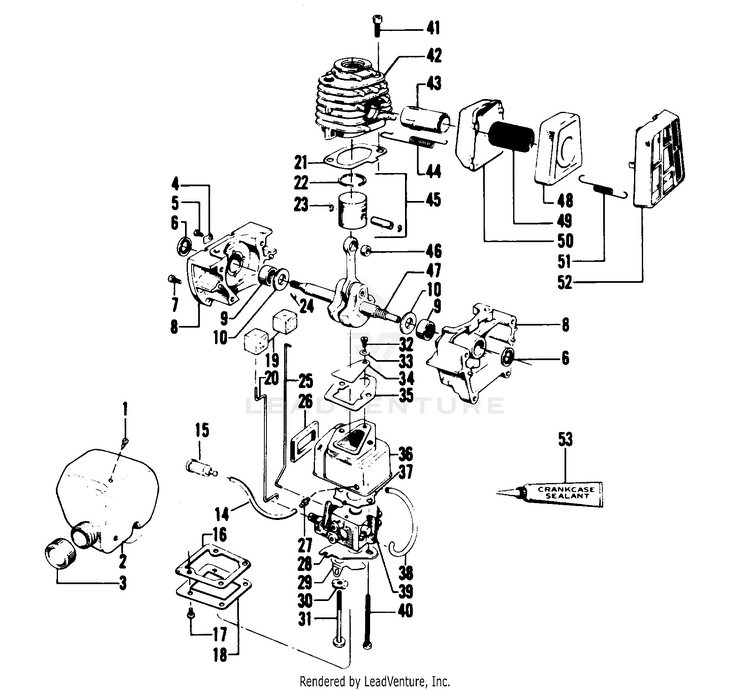

POWER UNIT

...
...
1
Duck Bill Valve PLN-530026119
...
2
Fuel Tank Ass'y (Incl. #1, 3, 14 & 15) PLN-530010776
...
3
Assy-Fuel Cap PLN-530014347
...
4
Clamp - Choke Wire PLN-530024651
...
5
Screw - #8 - 32 x 5/16" - Choke Wire Clamp PLN-530015004
...
6
Seal - Crankcase PLN-530019059
...
7
Screw - #10 - 24 x 5/8" - Crankcase PLN-530015168
...
8
Crankcase Assembly (Inc.6, 9 & Qty 4 of 7) PLN-530010316
...
9
Crankshaft Bearing PLN-530032029
...
10
Washer - Crankshaft Thrust PLN-530015351
...
14
Fuel Line PLN-530021042
...
15
Fuel Pick-Up Assembly PLN-530091878
...
16
Gasket - Carburetor Case Cover PLN-530019112
...
17
Screw - #8 - 18 x 9/16" - Carburetor Case Cover PLN-530015235
...
19
Boot - Throttle - Choke Wire PLN-530023373
...
21
Engine Gasket Kit PLN-530069219
...
22
Piston Ring PLN-530024929
...
23
Retainer - Wrist Pin PLN-530015162
...
24
Key - Flywheel PLN-530015126
...
25
Throttle Wire PLN-530024902
...
26
Seal - Carburetor Case PLN-530019105
...
27
Fuel Line Fitting PLN-530025472
...
29
Choke Shutter PLN-530024558
...
30
Wave Washer PLN-530015254
...
31
Screw - #10 - 24 x 2-1/8" - Fil. Hd. - Carburetor Shoulder PLN-530015404
...
32
Screw - #6 - 19 x 5/16" - Pan Hd. Reed Valve PLN-530015241
...
33
Washer - #6 - Reed Valve Screw PLN-530023367
...
34
Reed Valve PLN-530024438
...
35
Gasket - Carburetor Housing to Crankcase PLN-530019108
...
36
Carburetor Housing PLN-530024409
...
37
Carburetor Gasket PLN-530019115
...
38
Fuel Line - Carburetor PLN-530021043
...
39
Carburetor - See Service Ref. 3 PLN-530035183
...
40
Screw - #10 - 24 x 1-7/8" - Carburetor PLN-530015379
...
41
Screw - #1/4 - 20 x 3/4" - Cylinder PLN-530015239
...
42
Cylinder PLN-530012071
...
43
Diffuser - Muffler PLN-530024363
...
44
Muffler Spring PLN-530036409
...
45
Piston Assembly (Inc. 22, 23, & Pin) PLN-530022238
...
46
Bearing - Wrist Pin PLN-530032057
...
47
Crankshaft & Rod Assembly PLN-530022202
...
48
Cover - Muffler PLN-530024361
...
49
Screen - Spark Arresting PLN-530024364
...
50
Body - Muffler PLN-530024362
...
51
Spring - Muffler Guard PLN-530024932
...
52
Guard - Muffler PLN-530024855
...
53
Crankcase Sealant - 3 oz. Tube (Optional) PLN-530030054

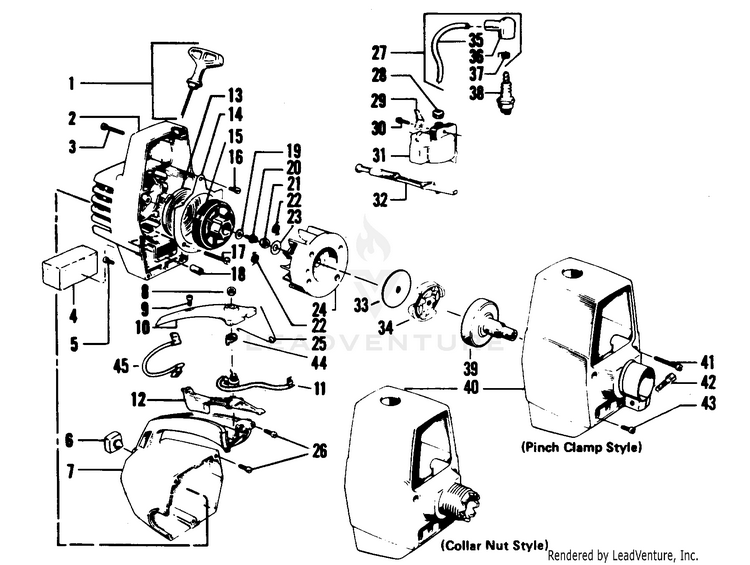

STARTER & SHROUDS

...
...
2
Fan Housing Kit (Incl. 14, 16, 17, 18) PLN-530069178
...
3
Screw - #10-24 x 1-1/2" - Fil. Hd.- Fan Housing Top PLN-530015376
...
4
Air Filter PLN-530024371
...
5
Screw - #10 - 24 x 5/8" - Fil. Hd.- Fan Housing Bottom PLN-530015168
...
6
Bumper - Fuel Tank Housing PLN-530024436
...
7
Handle and Fuel Tank Housing PLN-530024656
...
8
Switch- Plate and Nut PLN-530002582
...
9
Screw - #8 - 16 x 3/4" - Pan Hd. - Handle Cover PLN-530015247
...
10
Handle Cover PLN-530024665
...
11
Kit Grounding Switch (Incl. #8, 29, 44, 45) PLN-530069182
...
12
Trigger - Throttle PLN-530024365
...
14
Air Baffle PLN-530026035
...
16
Screw - #10 - 24 x 1/4" - Fil. Hd. Air Baffle PLN-530015373
...
17
Screw - #10 - 24 x 1-3/16" Fil. Hd. PLN-530015305
...
18
Spacer PLN-530026122
...
19
Washer - #10 - Starter Pulley Screw PLN-530015123
...
20
Screw PLN-530016141
...
21
Nut - Flywheel PLN-530626605
...
22
Spring-Starter Dog PLN-530023817
...
23
Washer - Flywheel PLN-530015127
...
24
Flywheel Assembly (Incl. # 22) PLN-530039114
...
25
Spring - Trigger PLN-530024461
...
26
Screw-Line Limiter PLN-530015814
...
27
High Tension Lead Assembly (Inc. 35,36,37) PLN-502039103
...
28
Grommet - Plug Wire PLN-530024435
...
29
Electrical Tab - 45ø PLN-530025995
...
30
Screw PLN-530015816
...
31
Kit - Ignition Module PLN-530069181
...
32
Choke Knob PLN-530024303
...
33
Kit - Clutch Washer - See Serv. Ref. 6. PLN-530069196
...
34
Kit - Clutch Assembly (Incl. Washer) - See Service Ref. 2 & 6. PLN-530069195
...
35
High Tension Lead Wire PLN-530039082
...
36
Boot - Spark Plug PLN-530003934
...
37
Spark Plug Boot PLN-507475326
...
38
Spark Plug (Champion CJ-14) PLN-530030077
...
39
Drum & Coupling Assembly PLN-530010797
...
40
Collar Nut Style PLN-530011695
...
40
Pinch Clamp Style PLN-530011799
...
41
Screw - #10 - 24 x 1-1/2" - Shroud Top PLN-530015376
...
42
BOLT PLN-530093802
...
xx
HAND GUARD PLN-506093802
...
43
Screw - 10 - 24 x 5/8" - Shroud Bottom PLN-530015168
...
44
Washer - Grounding Switch PLN-530024569
...
45
Wire - Lead Grounding Switch PLN-530039122
