Weed Eater 2215 Gas Trimmer

Model: 2215 Gas Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

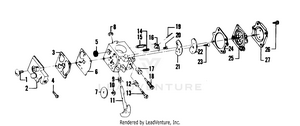

CARBURETOR WA-149 BREAKDOWN

...
...
1
Screw - Pump Cover PLN-530035017
...
2
Pump Cover Ass'y (Inc. #4) PLN-530035184
...
3
GASKET PLN-504130906
...
4
Screw - Idle Adjustment PLN-530035156
...
5
Fuel Inlet Screen PLN-530035178
...
6
PUMP DIAPHRAGM PLN-504130807
...
7
Valve - Throttle PLN-530035133
...
8
Clip - Throttle Shaft PLN-530035007
...
9
Spring - Throttle Return PLN-530035138
...
10
Screw - Throttle Valve Included in Carburetor Kwik Repair Kit. PLN-530035015
...
11
Shaft Assembly - Throttle PLN-530035132
...
12
Spring - Idle Needle PLN-530035023
...
13
Needle - Idle PLN-530035141
...
14
WT-141 - T1 Included in Carburetor Kwik Repair Kit. PLN-530035188
...
15
Valve - Inlet Needle Included in Carburetor Kwik Repair Kit. PLN-530035008
...
16
Metering Lever Included in Carburetor Kwik Repair Kit. PLN-505520127
...
17
Spring - Hi Speed Needle PLN-530035036
...
18
H-NEEDLE PLN-501782201
...
19
Pin Included in Carburetor Kwik Repair Kit. PLN-505520125
...
20
Screw - Metering Lever Pin PLN-530035016
...
21
GASKET PLN-501781301
...
22
Plate - Circuit PLN-530035042
...
23
Screw - Circuit Plate Included in Carburetor Kwik Repair Kit. PLN-530035137
...
24
Gasket - Metering Diaphragm PLN-530035151
...
25
DIAPHRAGM PLN-503896701
...
26
Screw Assembly - Metering Cover & Throttle Shaft Clip PLN-530035153
...
27
Cover - Metering Diaphragm PLN-530035149
...
xx
Kit - Kwik Repair Kit Not Shown. PLN-530035185
...
xx
Gasket Diaphragm Kit Not Shown. PLN-530069844

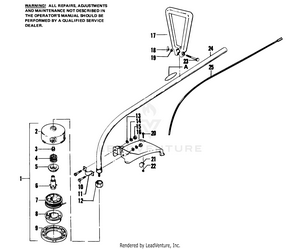

CUTTING HEAD ASSEMBLY

...
...
1
Cutting Head Ass'y. PLN-952711547
...
2
Hub PLN-530071295
...
3
Line Saver PLN-530093898
...
4
Spring PLN-530340007
...
5
Cap Spring PLN-530328929
...
6
Drive Gear PLN-530093897
...
7
Spool w/Line PLN-952701523
...
8
Tap Button PLN-530401183
...
9
Cover PLN-530092133
...
10
Bolt - Shield PLN-530625567
...
11
Bracket - Shield (1/4-20 x 1-3/4) PLN-530093653
...
12
Dust Cup PLN-530093716
...
13
Washer - Flat PLN-530015209
...
14
Washer - Lock 1/4 PLN-530001642
...
15
Nut - Shield 1/4-20 PLN-530015515
...
16
Shield PLN-530093583
...
xx
Shield Ass'y (Inc. #16, 20, 21 & 22) Not Shown. PLN-530093655
...
17
Assist Handle PLN-530091412
...
18
Wing Nut - 1/4-20 PLN-530091373
...
19
Washer - 1/4 Flat PLN-530092062
...
20
Screw - Line Limiter (10-24x1) PLN-530015337
...
21
Limiter - Line PLN-530093853
...
22
Nut - Line Limiter PLN-530015064
...
23
Hex Bolt - 1/4-20 x 2-1/4 PLN-530091372
...
24
Drive Shaft Ass'y (Inc. # 12) PLN-530093902
...
25
Flexible Shaft Ass'y PLN-530093575
...
xx
Operator's Manual Not Shown. PLN-530066271
...
A
Decal - Attachment Warning PLN-530026347

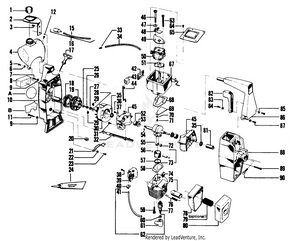

ENGINE BLOCK, & SHROUDS

...
...
1
Fuel Cap Assembly PLN-701567
...
2
Bracket - Fuel Tank PLN-530025377
...
3
Screw PLN-530016107
...
4
Fuel Tank (Inc. # 12) PLN-530025706
...
5
Screw - Fuel Tank/Fan Housing (10 - 1) PLN-530015509
...
xx
Fuel Tank Assembly (Inc. #1, 4, 12, & 16) Not Shown. PLN-530010522
...
6
Washer PLN-530015123
...
7
Screw - Fan Hsg. Top #10 - 24 x 5/8 Fil. PLN-530015168
...
8
Air Filter PLN-952701568
...
9
Washer - Flat - Fan Housing PLN-530015274
...
10
ARMATURE ASSY.1.0"STK 10 PARAM PLN-534010701
...
xx
Fan Housing Ass'y PLN-530010701
...
11
Screw - Fan Housing - Bottom - #10 - 24 x 1-3/16 Fil. PLN-530015305
...
12
Check Valve - Duck Bill PLN-530026119
...
15
Line - Fuel Pick-up PLN-530021045
...
16
Fuel Line & Filter Assembly (Inc. # 15) PLN-530010739
...
17
Rope & Handle - Starter PLN-530026112
...
18
KIT STARTER SPRING PLN-545008009
...
19
Starter - Pulley PLN-530026048
...
20
Button - Kill Switch PLN-530026679
...
22
Washer - Kill Switch PLN-530015382
...
23
Screw - Kill Switch (8 x 3/8) PLN-530015407
...
24
Crankcase Sealant - 3 oz. tube (Optional) PLN-530030054
...
25
Washer - Starter Pulley PLN-530015123
...
26
Screw - Starter Pulley (#10 - 3/4 - Hex Head) PLN-530015479
...
27
Nut - Flywheel (5/16 x 24) PLN-530626605
...
28
Washer - Flywheel PLN-530015127
...
29
Spring-Starter Dog PLN-530023817
...
30
Flywheel Ass'y (Inc. #28) PLN-530039114
...
31
Screw - Crankcase (# 10 - 24 x 5/8 Fil.) PLN-530015168
...
32
Knob - Choke PLN-530024303
...
33
Fitting - Fuel Line PLN-530025472
...
34
Fuel Line - Carburetor PLN-530021044
...
35
Seal - Crankshaft PLN-530019059
...
36
Screw - Clamp # 8 - 32 x 5/16 Pan. PLN-530015004
...
37
Clamp - Choke Wire PLN-530024651
...
38
Screw PLN-530015816
...
39
Kit - Ignition Module (Inc. 21) PLN-530069181
...
40
Grommet - Plug Wire PLN-530024435
...
41
Lead Wire - High Tension PLN-530039082
...
42
Seal - Carburetor Case PLN-530019105
...
43
Boot - Choke Wire PLN-530023373
...
44
Wire - Choke PLN-530026236
...
45
Crankcase Ass'y (Inc. #35 & 52) PLN-530010316
...
46
Screw - Carburetor (Shoulder #10 - 24) PLN-530015404
...
47
Wave Washer PLN-530015254
...
48
Shutter - Choke PLN-530024558
...
49
Plate - Guide, Choke Wire PLN-530026237
...
50
Carburetor (WA-149) PLN-530035183
...
51
Gasket - Carburetor PLN-530019115
...
52
Crankshaft Bearing PLN-530032029
...
53
Thrust Washer - Crankshaft PLN-530015351
...
54
Key - Flywheel PLN-530015126
...
55
Crankshaft & Rod Assembly PLN-530024494
...
56
Retainer - Wrist Pin PLN-530015162
...
57
Piston Ring PLN-530024302
...
58
Engine Gasket Kit PLN-530069219
...
59
Screw - Cylinder (1/4 - 20 x 3/4 Socket Head) PLN-530015239
...
60
Spark Plug Boot PLN-507475326
...
61
Boot - Spark Plug PLN-530003934
...
62
High Tension - Lead Assembly (Incl. #17, 18 & 19) PLN-502039103
...
xx
High Tension Lead Ass'y (Inc. #41,60,61) PLN-530039103
...
63
Screw - Carburetor (#10 - 24 Fil.) PLN-530015379
...
64
Screw - Carburetor Cover (8 - 18 x 9/16) PLN-530015235
...
65
Cover - Carburetor Case PLN-530026029
...
67
Carburetor Case Assembly PLN-530010453
...
68
Gasket - Carburetor Case/Crankcase PLN-530019108
...
69
Reed Valve PLN-530024438
...
70
Washer - Reed Valve PLN-530023367
...
71
Screw - Reed Valve (6 - 19 x 5/16) PLN-530015241
...
72
Bearing - Wrist Pin PLN-530032057
...
73
Piston Ass'y (Inc. # 56, 57 and Pin) PLN-530022198
...
74
Cylinder PLN-530012070
...
75
Diffuser - Muffler PLN-530024363
...
76
Muffler Spring PLN-530036409
...
77
Spark Plug (CJ-14) PLN-530030077
...
78
Body - Muffler PLN-530024362
...
79
Screen - Spark Arrestor Kit (optional) PLN-530069172
...
80
Cover - Muffler PLN-530024361
...
81
Coupling - Hex Drive PLN-530093694
...
82
Trigger - Throttle PLN-530025342
...
83
Washer - Throttle PLN-530015382
...
84
Screw - Throttle (8 - 16 x 3/8) PLN-530015407
...
85
Washer - Flat - Shroud PLN-530015274
...
86
Handle PLN-530025704
...
87
Screw - Shroud (Top) - (10 - 24 x 7/8) PLN-530015163
...
88
Shroud PLN-530011778
...
89
Screw - Shroud (Bottom) - #10 - 24 x 1-1/2 Fil. PLN-530015376
...
90
Bolt, Pinch Clamp (1/4 - 20 x 1 - Hex Cap) PLN-530625509
...
A
Decal - Starting Instructions PLN-530026345
...
B
Decal - Choke / OFF PLN-530026346
...
xx
Decal - Shroud (Right) - Not Shown PLN-530025709
...
xx
Decal - Shroud (Left) - Not Shown PLN-530025711
...
...
...
