Weed Eater 1925 Gas Blower

Model: 1925 Gas Blower

Save Part Not Listed?
product name

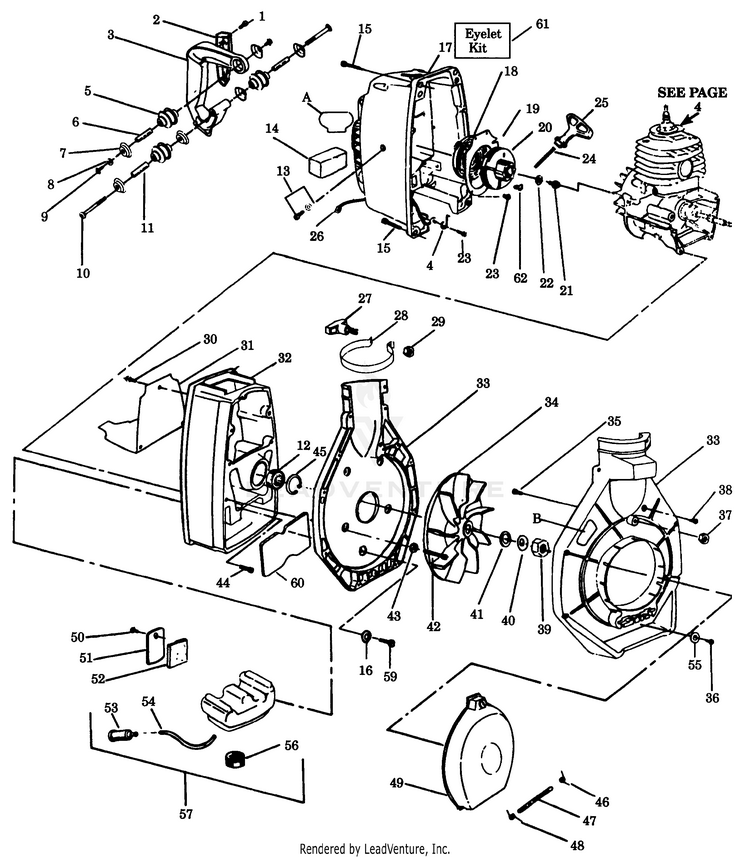

BLOWER ASSEMBLY

...
...
1
Screw PLN-530015635
...
2
Handle Cover PLN-530094212
...
3
Handle Ass'y. PLN-530010827
...
4
Static Ground Wire PLN-530027157
...
5
Handle Isolator PLN-530026994
...
6
Isolator Spacer (Front) PLN-530015343
...
7
Isolator Cup PLN-530026163
...
8
Washer PLN-530015629
...
9
Screw PLN-530015628
...
10
Screw PLN-530015561
...
11
Isolator Spacer (Rear) PLN-530015342
...
12
Ball Bearing (Shroud) When removing or installing the bearing (f530-032091), the area of the shroud (f530-010824) receiving the bearing must be heated to approximately 300 degrees Farenheit to avoid damaging the shroud. PLN-530032091
...
13
Screw PLN-530015700
...
14
Air Filter PLN-530024371
...
15
Screw PLN-530015687
...
16
Washer PLN-530015123
...
17
Fan Housing PLN-530010860
...
18
SPRING-STARTER PLN-545008007
...
19
Air Baffle PLN-530026780
...
21
Screw PLN-530015479
...
22
Washer PLN-530015123
...
23
Screw PLN-530015544
...
24
Rope Kit PLN-530069232
...
25
Handle-Starter PLN-530027569
...
26
Ground Wire PLN-530027175
...
27
HANDLE KIT PLN-530069347
...
28
Clamp-Blower Tube PLN-530095592
...
29
Nut PLN-530015197
...
30
Screw PLN-530015636
...
31
Heat Deflector PLN-530026776
...
32
Shroud (Incl. #12 & 45) When removing or installing the bearing (f530-032091), the area of the shroud (f530-010824) receiving the bearing must be heated to approximately 300 degrees Farenheit to avoid damaging the shroud. PLN-530010824
...
33
Blower Hsg. Ass'y. (Incl. #36,46-49 & 55, and #5 of Vacuum Attac. Kit) PLN-530069269
...
34
Impeller PLN-530094215
...
35
Screw PLN-530015661
...
36
SCREW PLN-534222402
...
37
Nut PLN-530001543
...
38
Screw-Line Limiter PLN-530015814
...
39
Nut PLN-530015644
...
40
Washer PLN-530015441
...
41
Washer PLN-530016030
...
42
Screw PLN-530015632
...
43
Washer PLN-530015149
...
44
Screw PLN-530015168
...
45
Shroud Bearing Retainer PLN-530001516
...
46
Spring-Tension (Right) PLN-530015667
...
47
Pivot Pin PLN-530015647
...
48
Spring-Tension (Left) PLN-530015672
...
49
Inlet Door Ass'y. PLN-530094241
...
50
Screw PLN-530015638
...
51
Fuel Tank Retainer PLN-530015637
...
52
Fuel Tank Cushion PLN-530026781
...
53
Assy-Fuel Pickup PLN-530095646
...
54
Line Kit PLN-530069247
...
55
Washer PLN-530015382
...
56
Assy-Fuel Cap (Incl. O-Ring) PLN-530014347
...
57
Fuel Tank Ass'y. (Incl. #53,54 & 56) PLN-530010815
...
59
Screw PLN-530015683
...
60
Fuel Tank Shield PLN-530027350
...
61
Eylet Kit PLN-530069235
...
62
SCREW (Incl. in Starter Pulley Kit) PLN-530016080
...
A
Instruction Decal PLN-530026938
...
B
Blower/Vac Warning Decal PLN-530026925

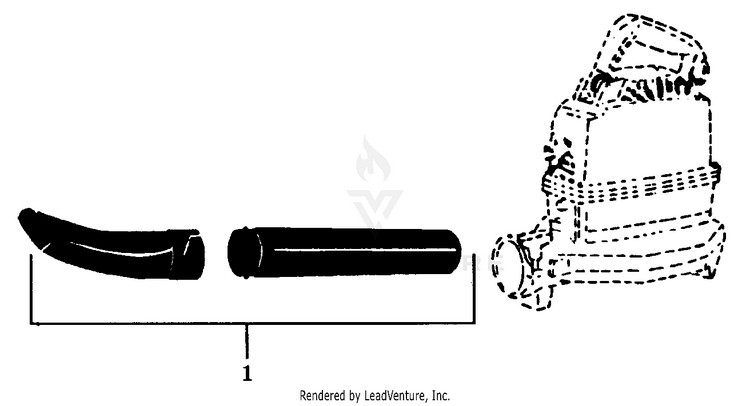

BLOWER TUBE KIT

...
...
1
BLOWER TUBE KIT PLN-530069684
...
0
Operator's Manual, Model 1920 Not Shown. PLN-530067302
...
0
Operator's Manual, Model 1925 Not Shown. PLN-530067303
...
0
Operator's Manual, Model 1960 Not Shown. PLN-530067301

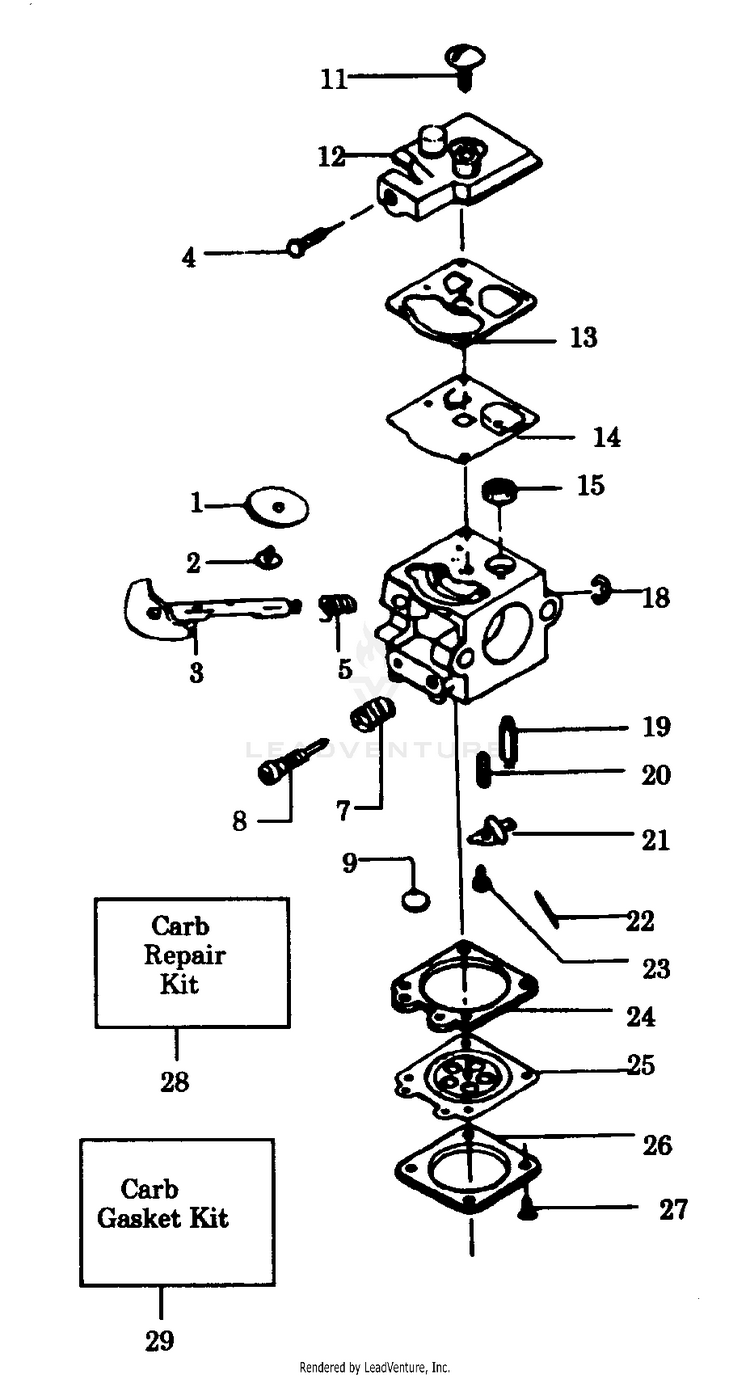

CARBURETOR

...
...
1
Valve Throttle PLN-530035197
...
2
Screw-Throttle Valve PLN-530035015
...
3
Shaft Ass'y.-Throttle PLN-530035132
...
4
Idle Speed Screw PLN-530035156
...
5
Spring-Throttle Return PLN-530035138
...
7
Needle Spring-Low Speed PLN-530035293
...
8
Needle-High Speed Mixture PLN-530035198
...
9
Plug-5/16 Dia. Welch PLN-530035162
...
11
Screw-Pump Cover PLN-530035017
...
12
Cover-Fuel Pump PLN-530035191
...
13
GASKET PLN-504130906
...
14
PUMP DIAPHRAGM PLN-504130807
...
15
Screen-Fuel Inlet PLN-530035178
...
18
Ring-Throttle Retainer PLN-530035007
...
19
Needle PLN-503117001
...
20
WT-141 - T1 PLN-530035188
...
21
Metering Lever PLN-505520127
...
22
Pin PLN-505520125
...
23
Screw-Metering Lever Pin PLN-530035016
...
24
Gasket-Metering Diaphragm PLN-530035151
...
25
DIAPHRAGM PLN-503896701
...
26
Cover-Metering Diaphragm PLN-530035003
...
27
Screw Ass'y.-Metering Cover PLN-530035021
...
28
Kit-Carb. Kwik Repair (Inc. 13,14,24,25) PLN-530035199
...
29
Gasket Diaphragm Kit PLN-530069844

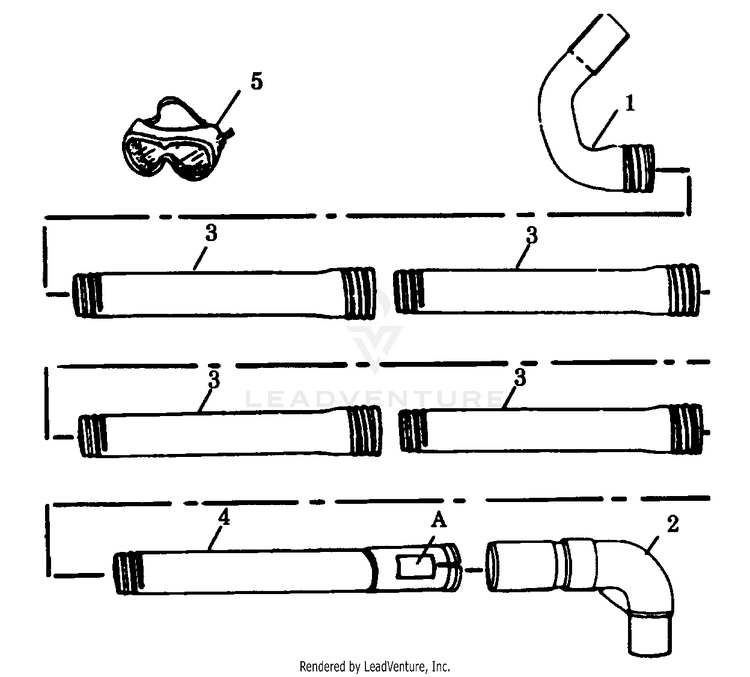

GUTTER ATTACHMENT KIT

...
...
1
Nozzle PLN-530094426
...
2
Elbow PLN-530094518
...
3
Extension Tube PLN-530094425
...
4
Pivot Tube PLN-530094424
...
5
Goggles PLN-952062003
...
A
Warning Decal PLN-530027215

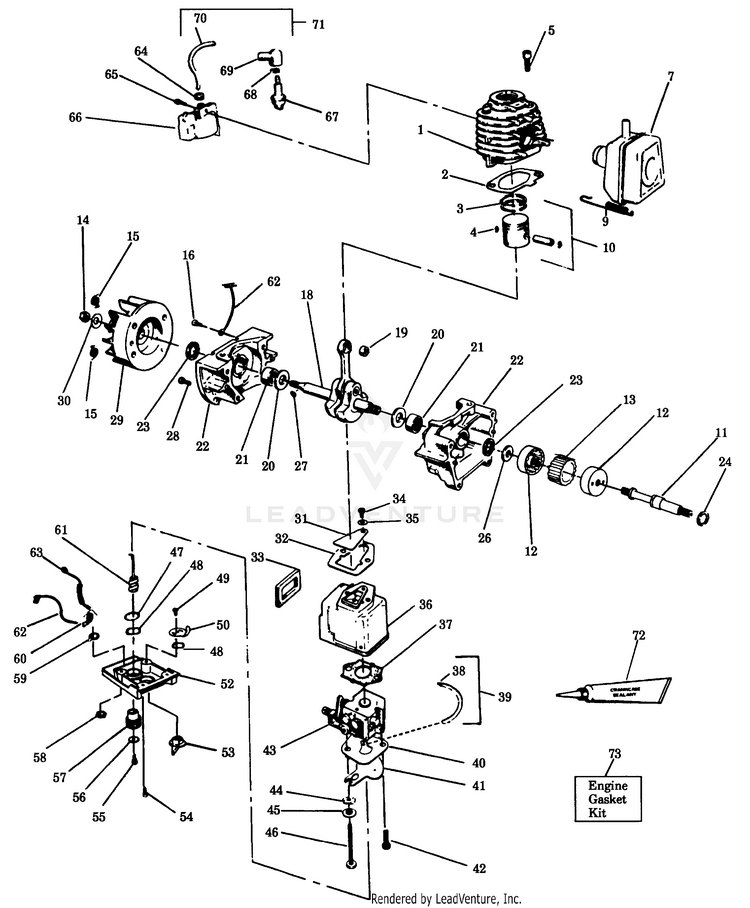

POWER UNIT

...
...
1
CYLINDER PLN-530012349
...
1
Model 1960 PLN-530012252
...
2
Engine Gasket Kit PLN-530069219
...
3
Models 1920, 1925 PLN-530026413
...
3
Model 1960 PLN-530026681
...
4
Wrist Pin Retainer PLN-530015162
...
5
Screw PLN-530015239
...
7
Muffler Ass'y. PLN-530069245
...
9
Muffler Spring PLN-530036409
...
10
Models 1920, 1925 PLN-530010753
...
10
Model 1960 PLN-530069203
...
11
Shaft Kit PLN-530069242
...
12
Shaft Coupling PLN-530012145
...
13
Plastic Coupling PLN-530094243
...
14
Flywheel Nut PLN-530626605
...
15
Starter Dog Spring PLN-530023817
...
16
Screw PLN-530015004
...
17
Piston Pin Bearing Model 1960 Only PLN-530032092
...
18
Models 1920, 1925 PLN-530027273
...
18
Model 1960 PLN-530010853
...
19
Piston Pin Bearing Model 1960 PLN-530032092
...
20
Washer PLN-530015351
...
21
Crankshaft Bearing PLN-530032029
...
22
Crankcase Ass'y. (Incl. #21,23 & 28) PLN-530010757
...
23
Crankcase Seal PLN-530019059
...
24
Washer PLN-530015763
...
26
Coupling Washer PLN-530001717
...
27
Flywheel Key PLN-530015126
...
28
Screw PLN-530015168
...
29
Flywheel Ass'y PLN-530047198
...
30
Flywheel Washer PLN-530015127
...
31
Reed Valve PLN-530024438
...
32
Carburetor Case to Crankcase Gasket PLN-530019108
...
33
Carburetor Case Seal PLN-530019105
...
34
Screw PLN-530015241
...
35
Washer PLN-530023367
...
36
Carburetor Case PLN-530026818
...
37
Carburetor Gasket PLN-530019157
...
38
Fuel Line Fitting PLN-530026981
...
39
Fuel Line & Fitting Ass'y. PLN-530010875
...
40
Choke Guide Plate PLN-530026797
...
41
Choke Shutter PLN-530026772
...
42
Screw PLN-530015674
...
43
Model 1400 G.TRIMMER-T1-T2-WA-149 PLN-530035183
...
44
Wave Washer PLN-530015254
...
45
Spacer PLN-530015673
...
46
Screw PLN-530015630
...
47
Retaining Ring PLN-530015654
...
48
Wave Washer PLN-530015147
...
49
Screw PLN-530015407
...
50
Choke Actuator PLN-530026773
...
52
Carb. Case Cover PLN-530026764
...
53
Choke Knob PLN-530023807
...
54
Screw PLN-530015675
...
55
Screw PLN-530015660
...
56
Washer PLN-530015123
...
57
Throttle Knob PLN-530015614
...
58
Switch- Plate and Nut PLN-530002582
...
59
Washer PLN-530024569
...
60
Toggle Switch Kit (Incl. #58 & 59) PLN-530069204
...
61
Throttle Wire Ass'y. PLN-530026771
...
62
Ignition Wire PLN-530026951
...
63
Ground Wire PLN-530026829
...
64
Plug Wire Grommet PLN-530024435
...
65
Screw PLN-530015816
...
66
Ignition Module PLN-530039124
...
67
BPMR7A NGK SPARK PLUG PLN-503235111
...
68
Spark Plug Boot PLN-507475326
...
69
Spark Plug Boot PLN-530003934
...
70
High Tension Lead Wire PLN-530039082
...
71
High Tension Lead Ass'y. (Incl. #68,69 & 70) PLN-530039103
...
72
Crankcase Sealant (Not Supplied With Unit) PLN-530030054
...
73
Engine Gasket Kit (Inc. 23,32,33,37) PLN-530069219

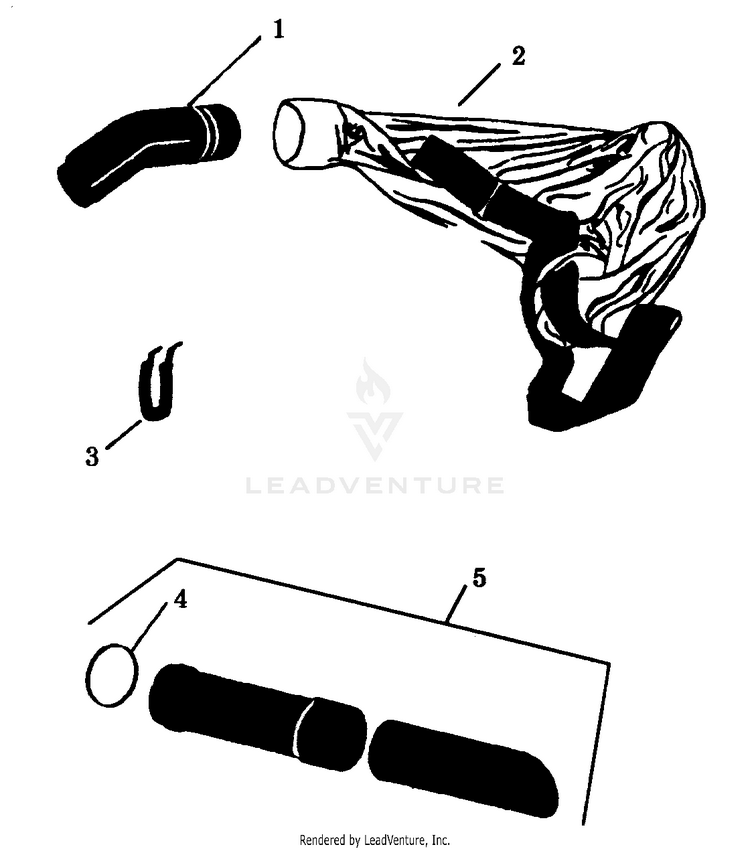

VAC ATTACHMENT KIT

...
...
1
Elbow PLN-530094654
...
2
Vacuum Bag Kit (Incl. #1) PLN-530069272
...
3
Rear Handle Ass'y. PLN-530010850
...
4
Vacuum Tubes PLN-530069270
...
5
Vacuum Tube Kit (Incl. #4) PLN-530069270
