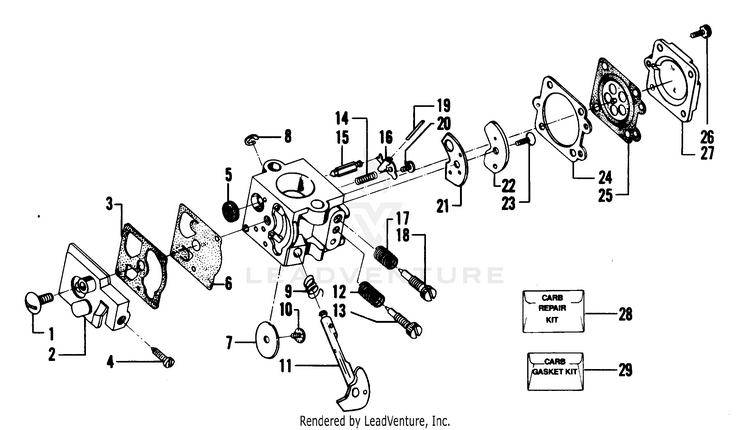

CARBURETOR WA-149 BREAKDOWN

...
...
1
Screw - Pump Cover PLN-530035017
...
2
Pump Cover Ass'y (Inc.4) PLN-530035191
...
3
GASKET PLN-504130906
...
4
Screw - Idle Adjustment PLN-530035156
...
5
Screen Inlet PLN-530035178
...
6
PUMP DIAPHRAGM PLN-504130807
...
7
Valve - Throttle PLN-530035133
...
8
Clip - Throttle Shaft PLN-530035007
...
9
Spring - Throttle Return PLN-530035138
...
10
Screw - Throttle Valve PLN-530035015
...
11
Shaft Assembly - Throttle PLN-530035132
...
12
Spring - Idle Needle PLN-530035023
...
13
Needle - Idle PLN-530035141
...
14
WT-141 - T1 PLN-530035188
...
15
Needle PLN-503117001
...
16
Metering Lever PLN-505520127
...
17
Spring - Hi Speed Needle PLN-530035036
...
18
H-NEEDLE PLN-501782201
...
19
Pin PLN-505520125
...
20
Screw - Metering Lever Pin PLN-530035016
...
21
GASKET PLN-501781301
...
22
Plate - Circuit PLN-530035042
...
23
Screw - Circuit Plate PLN-530035137
...
24
Gasket - Metering Diaphragm PLN-530035151
...
25
DIAPHRAGM PLN-503896701
...
26
Screw Assembly - Metering Cover & Throttle Shaft Clip PLN-530035153
...
27
Cover - Metering Diaphragm PLN-530035149
...
28
Kit Carb.-Kwik Repair (Inc. 3,5,6,10,14,15, 16,19,21,23,24,25) PLN-530035185
...
29
Gasket Diaphragm Kit PLN-530069844

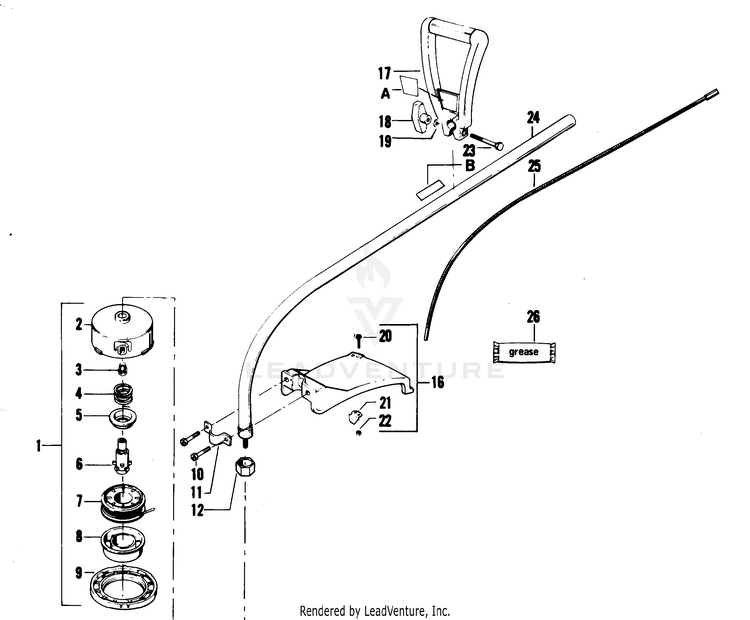

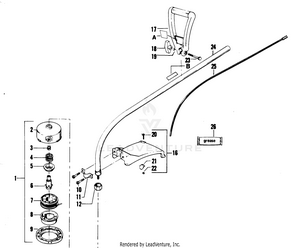

CUTTING HEAD ASSEMBLY

...
...
1
Cutting Head Ass'y (Inc.2 - 9) PLN-530093894
...
2
Hub PLN-530071295
...
3
Line Saver PLN-530093898
...
4
Spring PLN-530340007
...
5
Cap Spring PLN-530328929
...
6
Drive Gear PLN-530093897
...
7
Spool w/Line PLN-952701523
...
8
Tap Button PLN-530401183
...
9
Cover PLN-530092133
...
11
Bracket - Shield PLN-530093653
...
12
Dust Cup PLN-530093716
...
17
Assist Handle PLN-530010722
...
18
Knob - #1/4 - 20 PLN-530092059
...
19
Washer - #1/4 Flat PLN-530092062
...
20
Screw - Line Limiter PLN-530015337
...
21
Limiter - Line PLN-530093853
...
22
Nut - #10 - 24 Line Limiter PLN-530015064
...
23
Hex Bolt - #1/4 - 20 x 2-1/4" PLN-530092061
...
24
Drive Shaft Ass'y (Inc.12) PLN-530093934
...
25
Flexible Shaft Assembly PLN-530093928
...
26
LUBE, FLEX SHAFT NLA PLN-952708514
...
A
Decal - "D" Handle Warning PLN-530026225
...
B
Decal - Warning PLN-530026228

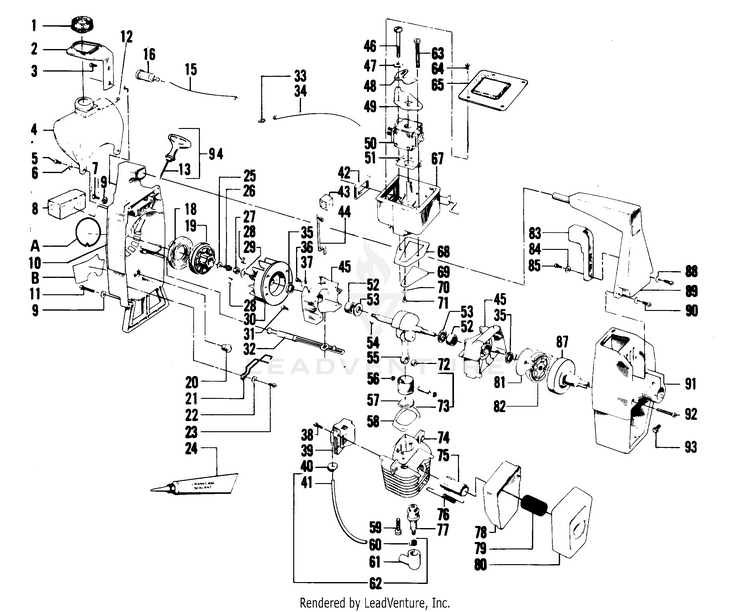

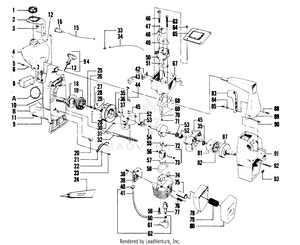

ENGINE BLOCK, & SHROUD

...
...
1
Assy-Fuel Cap PLN-530014347
...
2
Bracket - Fuel Tank PLN-530025377
...
3
Screw PLN-530016107
...
4
Fuel Tank Ass'y (Inc.1, 12, 15 & 16) PLN-530010771
...
5
Screw - Fuel Tank/Fan Hsg. (#10x1") PLN-530015509
...
6
Washer PLN-530015123
...
7
Screw - Fan Hsg. Top #10 - 24 x 5/8" Fil. Hd. PLN-530015168
...
8
Air Filter PLN-530024371
...
9
Washer #10 - Flat - Fan Hsg. PLN-530015274
...
10
Fan Housing PLN-530011909
...
11
Screw - Fan Housing - Bottom - (#10 - 24 x 1-3/16" Fil.) PLN-530015305
...
12
Check Valve - Duck Bill PLN-530026119
...
13
Rope (3.5 ft.) PLN-530022290
...
15
Line - Fuel PLN-530021045
...
16
Fuel Pick-up Assembly PLN-530091878
...
18
KIT STARTER SPRING PLN-545008009
...
19
Starter - Pulley PLN-530026048
...
20
Button - Kill Switch PLN-530026679
...
21
Spring - Kill Switch PLN-530026559
...
22
Washer #8 - Kill Switch PLN-530015382
...
23
Screw - Kill Switch (#8 - 16 x 3/8") PLN-530015407
...
24
Crankcase Sealant - 3 oz. tube (Optional) PLN-530030054
...
25
Washer - Starter Pulley PLN-530015123
...
26
Screw - Starter Pulley (#10-3/4 - Hex Head) PLN-530015479
...
27
Nut - #5/16 - 24" Flywheel PLN-530626605
...
28
Spring-Starter Dog PLN-530023817
...
29
Washer - Flywheel PLN-530015127
...
30
Flywheel Ass'y (Inc.28) PLN-530039114
...
31
Screw - Crankcase (#10 - 24 x 5/8" Fil.) PLN-530015168
...
32
Knob - Choke PLN-530024303
...
33
Fitting - Fuel Line PLN-530025472
...
34
Fuel Line - Carburetor PLN-530021044
...
35
Seal - Crankshaft PLN-530019059
...
36
Screw - Clamp #8 - 32 x 5/16" Pan. PLN-530015004
...
37
Clamp - Choke Wire PLN-530024651
...
38
Screw PLN-530015816
...
39
Kit Module (Inc. 21) PLN-530069181
...
40
Grommet - Plug Wire PLN-530024435
...
41
Lead Wire - High Tension PLN-530039082
...
42
Seal - Carburetor Case PLN-530019105
...
43
Boot - Choke Wire PLN-530023373
...
44
Wire - Choke PLN-530026236
...
45
Crankcase Ass'y (Inc.35, 52 and Qty. 4 of 31) PLN-530010316
...
46
Screw - Carburetor (Shoulder #10 - 24 x 2-1/8) PLN-530015404
...
47
Wave Washer PLN-530015254
...
48
Shutter - Choke PLN-530024558
...
49
Plate - Guide, Choke Wire PLN-530026237
...
50
Carburetor - WA-149 - (See Page 4 for Assembly) PLN-530035183
...
51
Gasket - Carburetor PLN-530019115
...
52
Crankshaft Bearing PLN-530032029
...
53
Thrust Washer - Crankshaft PLN-530015351
...
54
Key - Flywheel PLN-530015126
...
55
Crankshaft & Rod Assembly PLN-530026675
...
56
Retainer - Wrist Pin PLN-530015162
...
57
Piston Ring PLN-530024929
...
58
Engine Gasket Kit PLN-530069219
...
59
Screw - Cylinder (#1/4 - 20 x 3/4" Socket Head) PLN-530015239
...
60
Spark Plug Boot PLN-507475326
...
61
Boot - Spark Plug PLN-530003934
...
62
High Tension Lead Ass'y (Inc.41, 60, & 61) PLN-502039103
...
63
Screw - Carburetor (#10 - 24 x 1-7/8 Fil.) PLN-530015379
...
64
Screw - Carburetor Cover (#8 - 18 x 9/16") PLN-530015235
...
65
Cover - Carburetor Case PLN-530026029
...
67
Carburetor Case Assembly PLN-530010453
...
68
Gasket - Carburetor Case Crankcase PLN-530019108
...
69
Reed Valve PLN-530024438
...
70
Washer #6 - Reed Valve PLN-530023367
...
71
Screw - Reed Valve (#6 - 19 x 5/16") PLN-530015241
...
72
Bearing - Wrist Pin PLN-530032057
...
73
Piston Kit (Inc. 56, 57 and pin) PLN-530022238
...
74
Cylinder PLN-530012071
...
75
Diffuser - Muffler PLN-530024363
...
76
Muffler Spring PLN-530036409
...
77
Spark Plug (CJ-14) PLN-530030077
...
78
Body - Muffler PLN-530024362
...
79
Screen - Spark Arrestor PLN-530024364
...
80
Cover - Muffler PLN-530024361
...
81
Kit - Clutch - Washer PLN-530069196
...
82
Kit - Clutch Ass'y (Inc. Clutch Washer) - See Service Reference 1 PLN-530069194
...
83
Trigger - Throttle PLN-530025342
...
84
Washer #8 - Throttle PLN-530015382
...
85
Screw - Throttle (#8 - 16 x 3/8") PLN-530015407
...
87
Drum and Coupling Ass'y PLN-530010796
...
88
Washer #10 - Flat - Shroud PLN-530015274
...
89
Handle PLN-530025704
...
90
Screw - Shroud (Top) #10 - 24 x 7/8" PLN-530015163
...
91
Shroud PLN-530011778
...
92
Screw - Shroud (Bottom) - #10 - 24 x 1-1/2" Fil PLN-530015376
...
93
Bolt, Pinch Clamp (#1/4 - 20 x 1" - Hex Cap) PLN-530625509
...
94
Ass'y Rope & Handle - Starter Old Style - One Piece Ass'y PLN-530026112
...
94
Ass'y Rope & Handle - Starter New Style - Two Piece Ass'y PLN-530026792
...
A
Decal - Starting Instructions PLN-530025708
...
B
Decal - Choke/OFF PLN-530026440
...
xx
Decal - Shroud (Right) Not Shown. PLN-530026607
...
xx
Decal - Shroud (Left) (Not a serviceable part) Not Shown. PLN-530026608

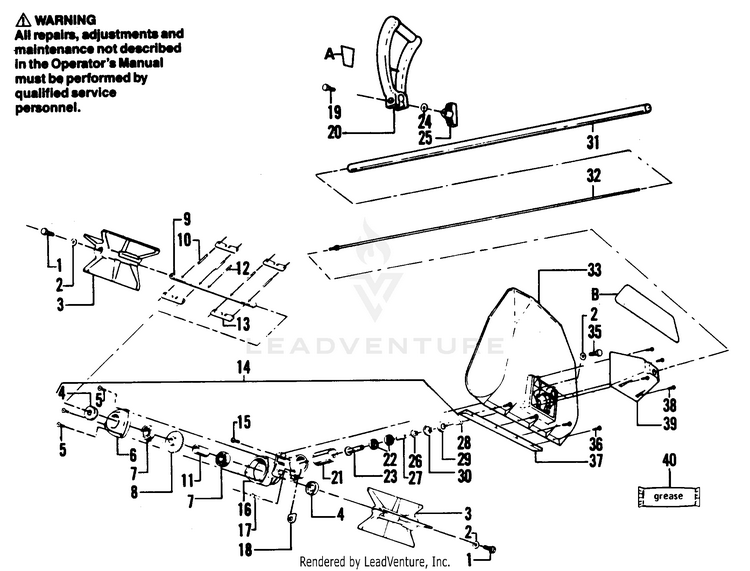

SNOW SHOVEL ATTACHMENT

...
...
1
Screw - Impeller - #1/4 - 20 x 1/2" - Hex Cap PLN-530015426
...
2
Washer - #1/4 - Impeller & Gear Box Mtg. PLN-530001503
...
3
Impeller PLN-530093883
...
4
Oil Seal - Double Lip PLN-530093119
...
5
Screw - Gear Housing PLN-530093865
...
6
Gear Housing Cover PLN-530093864
...
7
Bearing - Shaft PLN-530093118
...
8
Gear - Spiral Bevel PLN-530093867
...
9
Output Shaft PLN-530093117
...
10
Pin - Spiral - Brace PLN-530093034
...
11
Collar - Shaft PLN-530093807
...
12
Pin Spiral - Gear PLN-501093124
...
12
Pin Spiral - Gear PLN-530093124
...
13
Brace - Impeller PLN-530093036
...
14
Gear Box Ass'y (Inc.4-8, 11, 15-18 & 21-30) PLN-530093861
...
15
Screw - Index #10 - 24 x 7/16" Pan Hd. PLN-530015216
...
16
Gear Housing PLN-530093866
...
17
Screw - Pinch Clamp - #1/4 - 20 x 3/4" - Hex Socket Head PLN-530015239
...
18
Washer - Fiber Filler PLN-530092308
...
19
Screw - #1/4 - 20 x 1-3/4" Assist Handle PLN-530092061
...
20
Assist Handle PLN-530010722
...
21
Sleeve - Housing PLN-530093863
...
22
Bearing - Pinion PLN-530092329
...
23
Pinion Gear - Spiral Bevel PLN-530093868
...
24
Washer - #1/4 - Assist Handle PLN-530092062
...
25
Knob - Assist Handle PLN-530092059
...
26
Retaining Ring - Pinion PLN-530091573
...
27
Collar Pinion PLN-530093128
...
28
Plug - Grease It is recommended that Grease Plug 193875 be serviced only by an authorized service dealer. PLN-530093875
...
29
Oil Seal - Single Lip PLN-530093129
...
30
Retaining Ring - Bearing PLN-530091574
...
31
Drive Shaft Housing Ass'y. (Inc.32) PLN-530093933
...
32
Drive Shaft PLN-530093932
...
33
Housing - Impeller PLN-530010726
...
35
Screw - #1/4 - 20 x 3/4" - Gear Box Mounting PLN-530015459
...
36
Screw - Scraper Bar - #8 - 12 x 3/4" - Fil. Hd. PLN-530015451
...
37
Scraper Bar PLN-530093029
...
38
Screw - Rear Cover - #8 - 12 x 3/4" - Fil. Hd. PLN-530015451
...
39
Cover - Rear PLN-530092563
...
40
LUBE, FLEX SHAFT NLA PLN-952708514
...
A
Decal - Assist Handle PLN-530026225
...
B
Decal - Caution and Model PLN-530026609
...
xx
Carton (Not a serviceable part) Not Shown. PLN-530060769
...
xx
Operator's Manual Not Shown. PLN-530066424
...
...
...
