Weed Eater 1700A Gas Trimmer

Model: 1700A Gas Trimmer

Save Part Not Listed?
product name

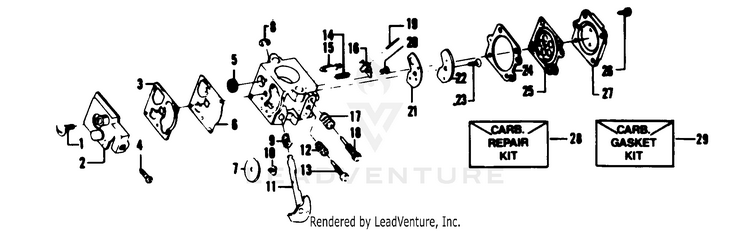

CARBURETOR WA-149 BREAKDOWN

...
...
1
Screw - Pump Cover PLN-530035017
...
2
Pump Cover Ass'y (Inc. #4) PLN-530035191
...
3
GASKET PLN-504130906
...
4
Screw - Idle Adjustment PLN-530035156
...
5
Screen - Inlet PLN-530035178
...
6
PUMP DIAPHRAGM PLN-504130807
...
7
Valve - Throttle PLN-530035133
...
8
Clip - Throttle Shaft PLN-530035007
...
9
Spring - Throttle Return PLN-530035138
...
10
Screw - Throttle Valve PLN-530035015
...
11
Shaft Assembly - Throttle PLN-530035132
...
12
Spring - Idle Needle PLN-530035023
...
13
Needle - Idle PLN-530035141
...
14
WT-141 - T1 Included in Carburetor Kwik Repair Kit. PLN-530035188
...
15
Needle Included in Carburetor Kwik Repair Kit. PLN-503117001
...
16
Metering Lever Included in Carburetor Kwik Repair Kit. PLN-505520127
...
17
Spring - Hi Speed Needle PLN-530035036
...
18
H-NEEDLE PLN-501782201
...
19
Pin Included in Carburetor Kwik Repair Kit. PLN-505520125
...
20
Screw - Metering Lever Pin PLN-530035016
...
21
GASKET PLN-501781301
...
22
Plate - Circuit PLN-530035042
...
23
Screw - Circuit Plate Included in Carburetor Kwik Repair Kit. PLN-530035137
...
24
Gasket - Metering Diaphragm PLN-530035151
...
25
DIAPHRAGM PLN-503896701
...
26
Screw Assembly - Metering Cover & Throttle Shaft Clip PLN-530035153
...
27
Cover - Metering Diaphragm PLN-530035149
...
28
Kit - Carb. Kwik Repair Kit PLN-530035185
...
29
Gasket Diaphragm Kit PLN-530069844

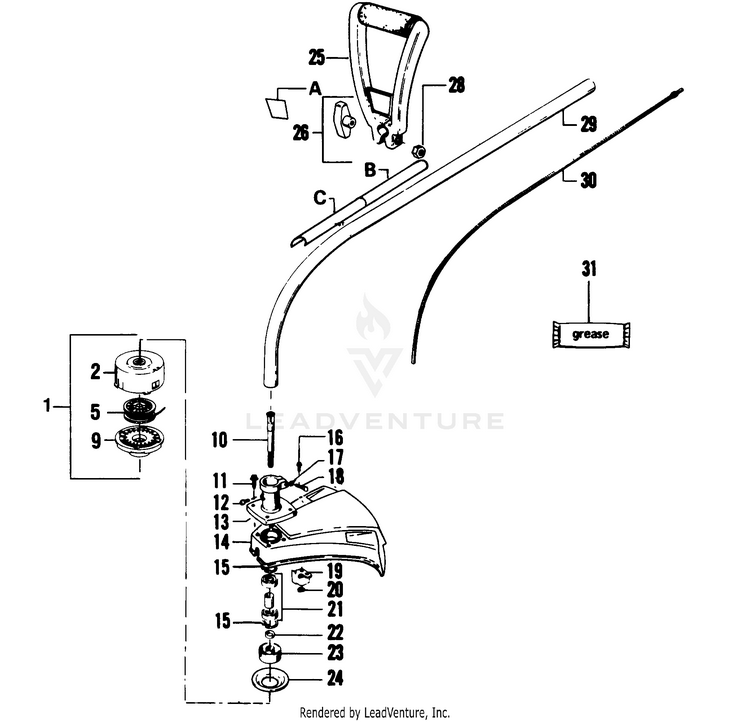

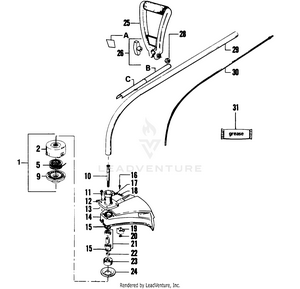

CUTTING HEAD ASSEMBLY

...
...
1
Cutting Head Assembly (Inc. 2, 5 & 9) PLN-952701605
...
2
Hub w/Line Saver PLN-530094592
...
5
Spool w/Line PLN-952701607
...
9
Cover PLN-530094494
...
10
Shaft-Arbor PLN-530093846
...
11
Screw PLN-530016107
...
12
Screw-Self-Tapping-#10-16x1/4" PLN-530015518
...
13
Bearing Housing Ass'y. (Inc. 10, 15, 17, 18, 21, 22, & 23) PLN-530093214
...
14
Shield (Inc. #16, 19 & 20) PLN-530094595
...
15
Retainer-Bearing PLN-530091783
...
16
Screw-Line Limiter-#10-24x5/8" PLN-530015037
...
17
Washer-#1/4-Int. Tooth Lock PLN-530092227
...
18
Screw-Pinch Clamp-#1/4-20x1" PLN-530625509
...
19
Line Limiter PLN-530094570
...
20
Nut PLN-530403094
...
21
Bearings and Spacer Kit PLN-530069086
...
22
Washer-Dust Cup PLN-530092216
...
23
Dust Cup PLN-530092359
...
24
WASHER PLN-530092218
...
xx
SCREW PLN-920092218
...
25
Cushioned Assist Handle Kit, GTI 16 SUPER, GTI 17LE, GTI 16D & GTI 16 Type 3 PLN-530069496
...
26
HANDLE KIT PLN-530069347
...
27
Washer-#1/4 Flat PLN-530092062
...
28
Nut PLN-530015197
...
29
Drive Shaft Housing PLN-530093845
...
30
Flexible Drive Shaft PLN-530093831
...
31
LUBE, FLEX SHAFT NLA PLN-952708514
...
A
Decal-"D" Handle PLN-530026225
...
B
Decal-Safety Label (Upper) PLN-530027429
...
C
Decal-Safety Label (Lower) PLN-530027404
...
xx
Operator's Manual 1700A w/Blade Not Shown. PLN-530067074
...
xx
Operator's Manual 1700A w/o Blade Not Shown. PLN-530067073

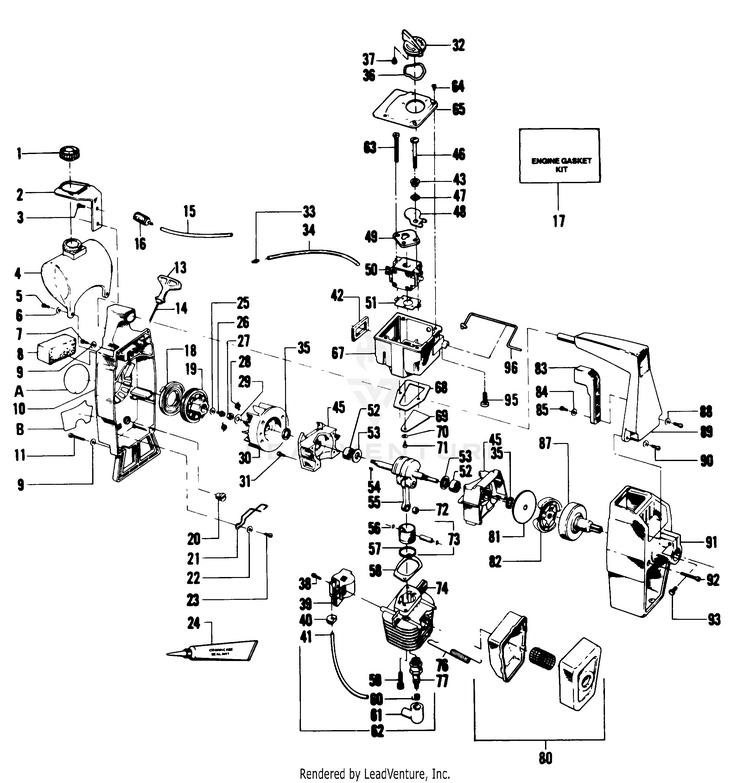

ENGINE BLOCK, & SHROUD

...
...
1
Assy-Fuel Cap PLN-530014347
...
2
Bracket-Fuel Line PLN-530025377
...
3
Screw PLN-530016107
...
4
Fuel Tank Ass'y. (Inc. #1, 15 & 16) PLN-530010887
...
5
Screw-Fuel Tank Fan Hsg. (#10x1") PLN-530015509
...
6
Washer PLN-530015123
...
7
Screw-Fan Hsg. Top #10-24x5/8" Fil. hd. PLN-530015168
...
8
Air Filter PLN-530024371
...
9
Washer-Flat-#10-Fan hsg. PLN-530015274
...
10
Fan Housing Ass'y. PLN-530010891
...
11
Screw-Fan Housing-Bottom #10-24x1-3/16" Fil. PLN-530015305
...
13
Handle-Starter PLN-530027569
...
14
Rope Kit PLN-530069231
...
15
Line Kit PLN-530069247
...
16
Assy-Fuel Pickup PLN-530095646
...
17
Engine Gasket Kit (Inc.35,42,51,58,68) PLN-530069219
...
18
KIT STARTER SPRING PLN-545008009
...
19
Starter-Pulley PLN-530026048
...
20
Button-Kill Switch PLN-530026679
...
21
Spring-Kill Switch PLN-530026559
...
22
Washer-Kill Switch PLN-530015382
...
23
Screw-Kill Switch (#8-16x3/8") PLN-530015407
...
24
Crankcase Sealant-3 oz. tube (Optional) PLN-530030054
...
25
Washer-Starter Pulley PLN-530015123
...
26
Screw-Starter Pulley (#10-24x3/4" Hex Hd.) PLN-530015479
...
27
Nut-Flywheel PLN-530626605
...
28
Spring-Starter Dog PLN-530023817
...
29
Washer-Flywheel PLN-530015127
...
30
Flywheel-Ass'y. (Inc. #28) PLN-530039114
...
31
Screw-Crankcase (#10-24x5/8" Fil.) PLN-530015168
...
32
Choke Knob PLN-530027101
...
33
Fitting-Fuel Line PLN-530026981
...
34
Fuel Line-Carburetor PLN-530021073
...
35
Seal-Crankshaft PLN-530019059
...
36
Wave Washer PLN-530015741
...
37
Screw PLN-530015740
...
38
Screw PLN-530015816
...
39
Ignition Module Kit (Inc. 21) PLN-530069181
...
40
Grommet-Plug Wire PLN-530024435
...
41
Lead Wire-High Tension PLN-530039082
...
42
Seal-Carburetor Case PLN-530019105
...
43
Spacer PLN-530015673
...
45
Crankcase Ass'y. (Inc. #35, 52 and Qty 4 of 31) PLN-530010757
...
46
Screw-Carburetor PLN-530015630
...
47
Wave Washer PLN-530015254
...
48
Shutter-Choke PLN-530026772
...
49
Plate-Guide, Choke Wire PLN-530026797
...
50
Carburetor-WA-149 PLN-530035183
...
51
Gasket-Carburetor PLN-530019157
...
52
Bearing-Crankshaft PLN-530032029
...
53
Thrust Washer-Crankshaft PLN-530015351
...
54
Key-Flywheel PLN-530015126
...
55
Crankshaft & Rod Assembly PLN-530010844
...
56
Retainer-Wrist Pin PLN-530015162
...
57
Piston Ring PLN-530026681
...
58
Engine Gasket Kit PLN-530069219
...
59
Screw-Cylinder (#1/4-20x3/4" Soc. Hd.) PLN-530015239
...
60
Spark Plug Boot PLN-507475326
...
61
Boot-Spark plug PLN-530003934
...
62
High Tension - Lead Assembly (Incl. #17, 18 & 19) PLN-502039103
...
xx
HIGH TENSION LEAD NLA PLN-530039103
...
63
Screw-Carburetor PLN-530015674
...
64
Screw-Carburetor Cover (#8-18x9/16") PLN-530015235
...
65
Cover-Carburetor Case PLN-530027100
...
67
Carburetor Case Ass'y. PLN-530027189
...
68
Gasket-Carburetor Case Crankcase PLN-530019108
...
69
Reed Valve PLN-530024438
...
70
Washer-Reed Valve PLN-530023367
...
71
Screw-Reed Valve (#6-19x5/16") PLN-530015241
...
72
Bearing-Wrist Pin PLN-530032057
...
73
Piston Kit (Inc. 56, 57, & Pin) PLN-530069241
...
74
Cylinder PLN-530012191
...
76
Muffler Spring PLN-530036409
...
77
Spark Plug (CJ-14) PLN-530030077
...
80
Muffler Ass'y. PLN-530069243
...
81
Kit-Washer-Clutch PLN-530069196
...
82
Kit-Clutch-Assembly (Inc. Washer) PLN-530069194
...
83
Trigger-Throttle PLN-530025342
...
84
Washer-Throttle PLN-530015382
...
85
Screw-Throttle (#8-16x3/8") PLN-530015407
...
87
Drum and Coupling Assembly PLN-530010796
...
88
Washer-Flat-#10 Shroud PLN-530015274
...
89
Handle PLN-530025704
...
90
Screw-Shroud (Top)-#10-24x7/8" PLN-530015163
...
91
Shroud PLN-530012096
...
92
Screw-Shroud (Bottom)-#10-24x1-1/2" Fil. PLN-530015376
...
93
BOLT PLN-530093802
...
xx
HAND GUARD PLN-506093802
...
95
Screw PLN-530015723
...
96
Throttle Wire PLN-530027190
...
A
Decal-Starting Instructions PLN-530027312
...
B
Decal-Choke/OFF PLN-530027638
...
xx
Decal-Shroud (Right) 1700A w/ Blade Not Shown. PLN-530027693
...
xx
Decal-Shroud (Right) 1700A w/o Blade Not Shown. PLN-530027656
...
xx
Decal-Shroud (Left) 1700A w/ Blade Not Shown. PLN-530027694
...
xx
Decal-Shroud (Left) 1700A w/o Blade Not Shown. PLN-530027657

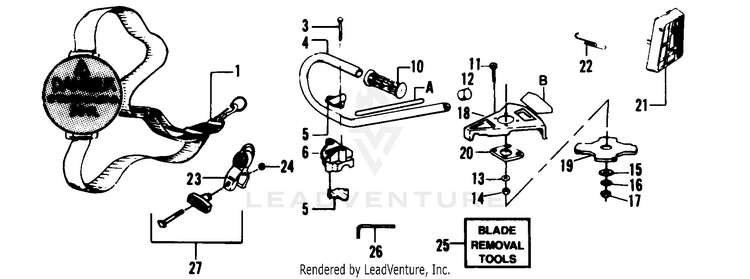

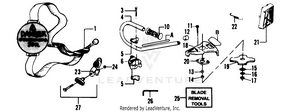

WEED BLADE ADAPTER KIT #701566

...
...
1
Shoulder Strap (Inc. Key Ring) PLN-530094417
...
3
Bolt-1/4-20x2" Hex PLN-530015791
...
4
Barrier Handlebar PLN-530093169
...
5
Handlebar Bracket PLN-530094572
...
6
Handlebar Clamp PLN-530012207
...
10
Grip-Handlebar PLN-530092086
...
11
Screw-#1/4-20x1" Hex PLN-530625509
...
12
End Cap Handlebar PLN-530092192
...
13
Washer-1/4" Flat PLN-530001503
...
14
Nut-Deflector to Brg. Hsh. (#1/4-20) PLN-530001615
...
15
Washer-Flat PLN-530093751
...
16
Washer--Belleville PLN-530016240
...
17
Flange Nut PLN-530093748
...
18
Shield-Aluminum PLN-530094576
...
19
Blade-4 Tooth Weed PLN-952701546
...
20
Shield Retention Plate PLN-530027615
...
21
Muffler Guard PLN-530024855
...
22
Muffler Guard Spring PLN-530024932
...
23
Clamp Harness Ass'y. PLN-530094686
...
24
Nut PLN-530015197
...
25
Blade Removal Tools PLN-530031130
...
26
Hex Wrench (5/32) PLN-530031159
...
27
HANDLE KIT PLN-530069347
...
A
Decal-Handlebar Warning PLN-530026229
...
B
Decal-Blade Rotation Warning PLN-530027621
