Weed Eater 1700 Gas Trimmer

Model: 1700 Gas Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

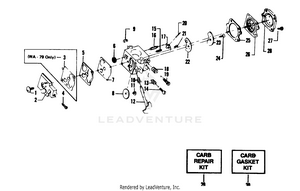

CARBURETORS WA-79 & 149

...
...
1
Screw - Pump Cover PLN-530035017
...
2
WA-79 PLN-530035154
...
2
WA-149 (#35183) PLN-530035191
...
3
Diaphragm - Pump (WA-79 Only) PLN-530035135
...
4
Screw - Idle Adjustment PLN-530035156
...
5
WA-79 PLN-530035009
...
5
GASKET PLN-504130906
...
6
Screen Inlet Included in Carburetor Kwik Repair Kit. PLN-530035178
...
7
WA-79 PLN-530035152
...
7
PUMP DIAPHRAGM PLN-504130807
...
8
Valve - Throttle PLN-530035133
...
9
Clip - Throttle Shaft PLN-530035007
...
10
Spring - Throttle Return PLN-530035138
...
11
Screw - Throttle Valve Included in Carburetor Kwik Repair Kit. PLN-530035015
...
12
Shaft Assembly - Throttle PLN-530035132
...
13
Spring - Idle Needle PLN-530035023
...
14
Needle - Idle PLN-530035141
...
15
WT-141 - T1 Included in Carburetor Kwik Repair Kit. PLN-530035188
...
16
Needle Included in Carburetor Kwik Repair Kit. PLN-503117001
...
17
Metering Lever Included in Carburetor Kwik Repair Kit. PLN-505520127
...
18
Spring - Hi Speed Needle PLN-530035036
...
19
H-NEEDLE PLN-501782201
...
20
Pin Included in Carburetor Kwik Repair Kit. PLN-505520125
...
21
Screw - Metering Lever Pin PLN-530035016
...
22
GASKET PLN-501781301
...
23
Plate - Circuit PLN-530035042
...
24
Screw - Circuit Plate PLN-530035137
...
25
Gasket - Metering Diaphragm PLN-530035151
...
26
DIAPHRAGM PLN-503896701
...
27
Screw Ass'y - Metering Cover & Throttle Shaft Clip PLN-530035153
...
28
Cover - Metering Diaphragm PLN-530035149
...
29
WA-79 PLN-530035144
...
29
WA-149 (#35183) PLN-530035185
...
30
WA-79 PLN-530035145
...
30
Gasket Diaphragm Kit PLN-530069844

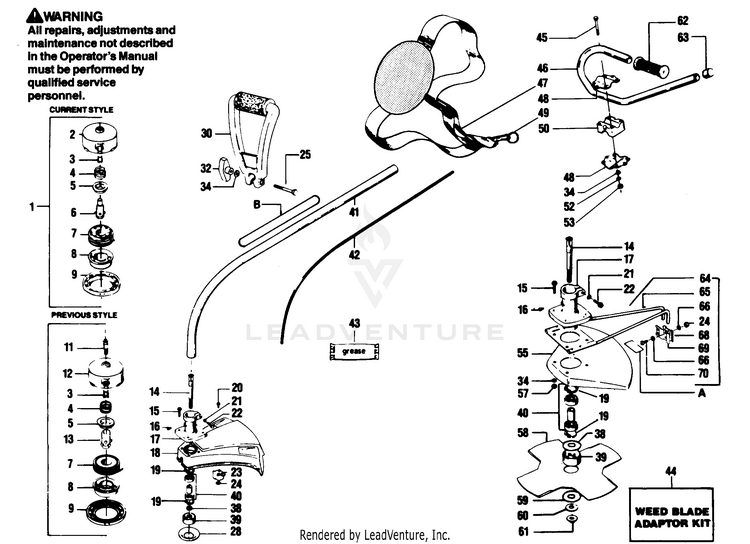

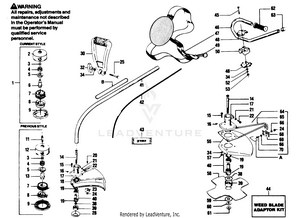

CUTTING HEAD & DRIVE SHAFT

...
...
1
Cutting Head Assembly - Current Style (Inc. #2-9) PLN-530093894
...
2
Hub PLN-530071295
...
3
Line Saver PLN-530093898
...
4
Spring PLN-530340007
...
5
Cap Spring PLN-530328929
...
6
Drive Gear - Current Style PLN-530093897
...
7
Spool w/Line PLN-952701523
...
8
Tap Button PLN-530401183
...
9
Cover PLN-530092133
...
11
Bolt - Drive Adaptor - Previous Style PLN-530092064
...
12
Hub w/Line Saver-Previous Style PLN-530092131
...
13
Drive Gear - Previous Style PLN-530092069
...
14
Arbor Shaft PLN-530093846
...
15
Screw blade. PLN-530016107
...
15
Screw w/Blade Model 1700 blade. PLN-530625509
...
16
Screw - #10 - 16 x 1/4" - Self Tapping PLN-530015518
...
17
Bearing Housing Ass'y (Inc. #14,19,21,22, 38,39,40) PLN-530093214
...
18
Shield Assembly - 18" (Inc. #20,23,24) PLN-530093885
...
19
Retainer - Bearing PLN-530091783
...
20
Screw - #10 - 24x5/8" - Hex Hd.-Line Limiter PLN-530015037
...
21
Washer - #1/4 Int. Tooth Lock PLN-530092227
...
22
Screw - Pinch Clamp - #1/4-20 x 1" PLN-530625509
...
23
Line Limiter PLN-530093853
...
24
Nut PLN-530403094
...
25
Hex Bolt PLN-530015737
...
28
WASHER PLN-530092218
...
xx
SCREW PLN-920092218
...
32
Knob - #1/4 - 20 PLN-530092059
...
34
Washer - #1/4 Flat PLN-530015149
...
38
Washer - #3/8 - Dust Cup PLN-530092216
...
39
Dust Cup PLN-530092359
...
40
Bearings & Spacer Kit PLN-530069086
...
41
Drive Shaft Housing PLN-530093845
...
42
Flexible Drive Shaft PLN-530093831
...
43
LUBE, FLEX SHAFT NLA PLN-952708514
...
44
Weed Blade Adaptor Kit - 1700 w/o Blade (Inc.45-70) blade. PLN-952701566
...
45
Bolt - #1/4 - 20x2" Hex PLN-530015405
...
46
Barrier Handlebar PLN-530093169
...
47
Shoulder Strap PLN-530094417
...
48
Clamp - Handlebar PLN-530092079
...
49
Key Ring - Shoulder Strap PLN-530092231
...
50
Block - Handlebar PLN-530092081
...
52
Washer - #1/4 Lock PLN-530001642
...
53
Nut - #1/4 - 20 Hex PLN-530015197
...
55
Shield - Aluminum PLN-530010724
...
57
Nut - Deflector to Brg. Hsg. (#1/4-20) PLN-530001615
...
58
Blade - 4 Tooth Weed PLN-952701546
...
59
Washer - #3/8 Flat PLN-530093751
...
60
Washer--Belleville PLN-530016240
...
61
Flange Nut - #3/8-24 PLN-530093748
...
62
Grip - Handlebar PLN-530092086
...
63
End Cap - Handlebar PLN-530092192
...
64
Line Limiter Ass'y. (Inc. #65-70) PLN-530092244
...
65
Line Limiter Bracket PLN-530092226
...
66
Washer PLN-530015123
...
68
Clamp - Line Limiter Front PLN-530092224
...
69
Clamp - Line Limiter Rear (Inc. Blade) PLN-530092234
...
70
Screw - #10 - 24 x 3/8" PLN-530015557
...
A
Decal - Blade Rotation Warning PLN-530024886
...
B
Decal - Safety Label Upper PLN-530027429
...
B
Decal - Safety Label Lower PLN-530027404
...
xx
Tap-N-Go Repair Kit for Old Style - Optional (Inc. #4-6,8-9 & 13) Not Shown. PLN-952701569
...
xx
Operator's Manual 1700 w/o Blade Not Shown. PLN-530066913
...
xx
Operator's Manual 1700 w/Blade Not Shown. PLN-530066917
...
xx
Carton (Not a serviceable part) Not Shown. PLN-530060768

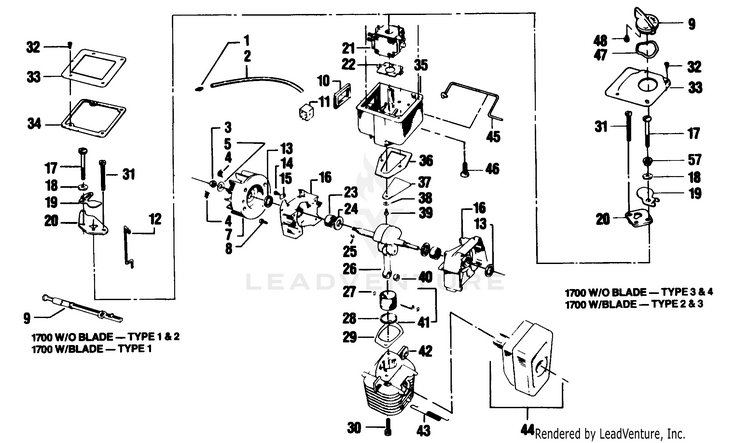

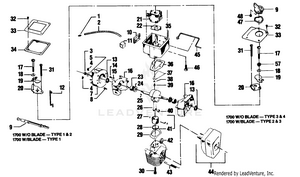

ENGINE BLOCK

...
...
1
1700 w/o Blade - Type 1 & 2 1700 w/Blade - Type 1 PLN-530025472
...
1
1700 w/o Blade - Type 3 & 4 1700 w/Blade - Type 2 & 3 PLN-530026981
...
2
1700 w/o Blade - Type 1 & 2 1700 w/Blade - Type 1 PLN-530021044
...
2
1700 w/o Blade - Type 3 & 4 1700 w/Blade - Type 2 & 3 PLN-530021073
...
3
Nut - Flywheel (5/16 x 24) PLN-530626605
...
4
Spring-Starter Dog PLN-530023817
...
5
Washer - Flywheel PLN-530015127
...
7
Flywheel Ass'y (Inc. #5) PLN-530039114
...
8
Screw - Crankcase PLN-530015369
...
9
1700 w/o Blade - Type 1 & 2 1700 w/Blade - Type 1 PLN-530024303
...
9
1700 w/o Blade - Type 3 & 4 1700 w/Blade - Type 2 & 3 PLN-530027101
...
10
Seal - Carburetor Case PLN-530019105
...
11
Boot - Choke Wire PLN-530023373
...
12
1700 w/o Blade - Type 2; 1700 w/Blade - Type1 PLN-530026236
...
13
Seal - Crankshaft PLN-530019059
...
14
Screw - Clamp PLN-530015004
...
15
Clamp - Choke Wire PLN-530024651
...
16
Crankcase Ass'y (Inc. #13,23 & Qty. 10 of #8) PLN-530010757
...
17
1700 w/o Blade - Type 1 & 2; 1700 w/Blade - Type 1 PLN-530015404
...
17
1700 w/o Blade - Type 3 & 4; 1700 w/Blade - Type 2 & 3 PLN-530015630
...
18
Wave Washer PLN-530015254
...
19
1700 w/o Blade - Type 1 & 2; 1700 w/Blade - Type 1 PLN-530024558
...
19
1700 w/o Blade - Type 3 & 4; 1700 w/Blade - Type 2 & 3 PLN-530026772
...
20
1700 w/o Blade - Type 2; 1700 w/Blade - Type1 PLN-530026237
...
20
1700 w/o Blade - Type 3 & 4; 1700 w/Blade - Type 2 & 3 PLN-530026797
...
21
Carburetor (for Type 1) - See Service Ref. 2. PLN-530035183
...
22
Gasket - Carburetor PLN-530019115
...
23
Bearing - Crankshaft PLN-530032029
...
24
Thrust Washer - Crankshaft PLN-530015351
...
25
Key - Flywheel PLN-530015126
...
26
1700 w/o Blade - Type 1,2 & 3; 1700 w/Blade - Type 1 & 2 PLN-530026675
...
26
1700 w/o Blade - Type 4; 1700 w/Blade - Type3 PLN-530010844
...
27
Retainer - Wrist Pin PLN-530015162
...
28
1700 w/o Blade - Type 1 PLN-530024302
...
28
1700 w/o Blade - Type 2 & 3; 1700 w/Blade - Type 1 & 2 PLN-530024929
...
28
1700 w/o Blade - Type 4; 1700 w/Blade - Type 3 PLN-530026681
...
29
Engine Gasket Kit PLN-530069219
...
30
Screw - Cylinder (#1/4 - 20 x 3/4" Socket Hd) PLN-530015239
...
31
1700 w/o Blade - Type 1 & 2; 1700 w/Blade - Type 1 PLN-530015379
...
31
1700 w/o Blade - Type 3 & 4; 1700 w/Blade - Type 2 & 3 PLN-530015674
...
32
Screw - Carburetor Cover - #8 - 18x9/16" PLN-530015235
...
33
1700 w/o Blade - Type 2; 1700 w/Blade - Type 1 PLN-530026029
...
33
1700 w/o Blade - Type 3 & 4; 1700 w/Blade - Type 2 & 3 PLN-530027100
...
34
Gasket - Carburetor Case Cover - See Service Ref. 4. PLN-530019112
...
35
Carburetor Case Assembly PLN-530010453
...
36
Gasket - Carburetor Case/Crankcase PLN-530019108
...
37
Reed Valve PLN-530024438
...
38
Washer - Reed Valve PLN-530023367
...
39
Screw - Reed Valve - (#6 - 19 x 5/16") PLN-530015241
...
40
1700 w/o Blade - Type 1,2 & 3; 1700 w/Blade - Type 1 & 2 PLN-530032057
...
40
1700 w/o Blade - Type 4; 1700 w/Blade - Type 3 PLN-530032092
...
41
1700 w/o Blade - Type 1 PLN-530022198
...
41
1700 w/o Blade - Type 2 & 3; 1700 w/Blade - Type 1 & 2 PLN-530022238
...
41
1700 w/o Blade - Type 4; 1700 w/Blade - Type 3 PLN-530069241
...
42
1700 w/o Blade - Type 1 PLN-530012070
...
42
1700 w/o Blade - Type 2,3 & 4; 1700 w/Blade - Type 1,2 & 3 PLN-530012071
...
42
1700 w/Blade & 1700 w/o Blade PLN-530012191
...
43
Muffler Spring PLN-530036409
...
45
Throttle Wire - 1700 w/o Blade - Type 3 & 4; 1700 w/Blade - Type 2 & 3 PLN-530027190
...
46
Screw - 1700 w/o Blade - Type 3 & 4; 1700 w/Blade - Type 2 & 3 PLN-530015723
...
47
Wave Washer - 1700 w/o Blade - Type 3 & 4; 1700 w/Blade - Type 2 & 3 PLN-530015741
...
48
Screw 1700 w/o Blade - Type 3 & 4 1700 w/Blade - Type 2 & 3 PLN-530015740
...
57
Spacer - 1700 w/o Blade - Type 3 & 4; PLN-530015673
...
58
Engine Gasket Kit (Inc.10,13,22,29,34,36,) PLN-530069219

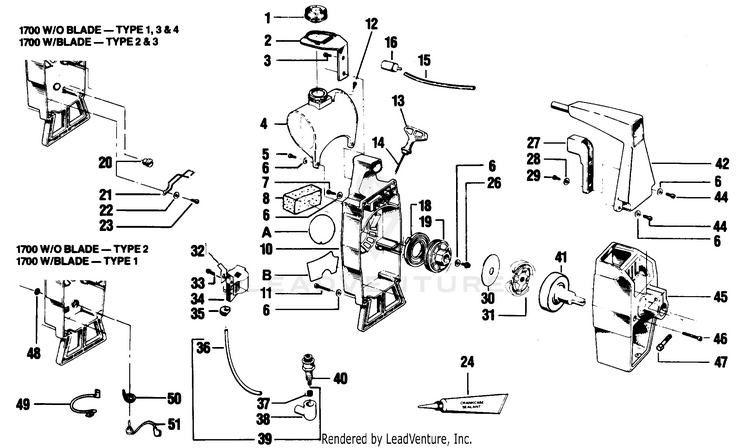

STARTER, & SHROUD

...
...
1
Assy-Fuel Cap PLN-530014347
...
2
Bracket - Fuel Tank PLN-530025377
...
3
Screw PLN-530016107
...
4
Fuel Tank Ass'y. 1700 w/o Blade - Type 1 & 2 PLN-530010771
...
4
Fuel Tank Ass'y. 1700 w/Blade - Type 1 PLN-530010771
...
4
Fuel Tank Ass'y. 1700 w/o Blade - Type 3 & 4 PLN-530010887
...
4
Fuel Tank Ass'y. 1700 w/Blade Type 2 & 3 PLN-530010887
...
5
Screw - Fuel Tank/Fan Hsg.-(#10x1") PLN-530015509
...
6
Washer PLN-530015123
...
7
Screw - Fan Hsg. Top-#10-24x5/8" Fil. PLN-530015168
...
8
Air Filter PLN-530024371
...
10
Fan Housing 1700 w/o Blade - Type 1 & 2 PLN-530011909
...
10
Fan Housing 1700 w/Blade - Type 1 PLN-530011909
...
10
Fan Housing 1700 w/o Blade - Type 3 & 4 PLN-530010891
...
10
Fan Housing 1700 w/Blade - Type 2 & 3 PLN-530010891
...
11
Screw - Fan Housing - Bottom-#10-24x1-3/16" Fil. PLN-530015305
...
12
Check Valve - Duck Bill PLN-530026119
...
13
Handle-Starter PLN-530027569
...
14
Rope Kit PLN-530069232
...
15
Fuel Line - 1700 w/o Blade - Type 1 & 2 PLN-530021045
...
15
Fuel Line - 1700 w/Blade - Type 1 PLN-530021045
...
15
Fuel Line - 1700 w/o Blade - Type 3 & 4 PLN-530069247
...
15
Fuel Line - 1700 w/Blade - Type 2 & 3 PLN-530069247
...
16
Fuel Pick-Up Ass'y. 1700 w/o Blade - Type 1 & PLN-530091878
...
16
Fuel Pick-Up Ass'y. 1700 w/Blade - Type 1 PLN-530091878
...
16
Assy-Fuel Pickup PLN-530095646
...
16
Assy-Fuel Pickup PLN-530095646
...
18
KIT STARTER SPRING PLN-545008009
...
19
Starter - Pulley 1700 w/o Blade - Type 2,3,4 PLN-530026048
...
20
Button - Kill Switch PLN-530026679
...
22
Washer - Kill Switch PLN-530015382
...
23
Screw - Kill Switch (#8 - 16x3/8) - See Service Ref. 6. PLN-530015407
...
24
Crankcase Sealant - 3 oz. Tube PLN-530030054
...
26
Screw - Starter Pulley (#10-24 x 3/4" - Hex Head) PLN-530015479
...
27
Trigger - Throttle PLN-530025342
...
28
Washer - Throttle PLN-530015382
...
29
Screw - Throttle - #8 - 16 x 3/8" PLN-530015407
...
30
Kit - Washer - Clutch PLN-530069196
...
31
Kit - Clutch Ass'y - See Service Ref. 1 & 7 PLN-530069194
...
32
Electrical Tab 45 degree - 1700 w/o Blade - Type 2; 1700w/Blade - Type 1 PLN-530025995
...
33
Screw PLN-530015816
...
34
Ignition Module Kit PLN-530069181
...
35
Grommet - Plug Wire PLN-530024435
...
36
Lead Wire - High Tension PLN-530039082
...
37
Spark Plug Boot PLN-507475326
...
38
Boot - Spark Plug PLN-530003934
...
39
High Tension Lead Ass'y (Inc. #32,37 & 38) PLN-502039103
...
40
Spark Plug (CJ-14) PLN-530030077
...
41
Drum and Coupling Ass'y. PLN-530010796
...
42
Handle PLN-530025704
...
43
Washer - Flat - Shroud PLN-530015123
...
44
Screw - Shroud (Top) #10 - 24 x 7/8" PLN-530015163
...
45
Shroud PLN-530011778
...
47
Bolt,Pinch Clamp (#1/4 - 20 x 1" - Hex Cap) PLN-530625509
...
48
Switch- Plate and Nut PLN-530002582
...
49
Wire Lead - Grounding Switch PLN-530039122
...
50
Washer - Grounding Switch PLN-530015412
...
51
Grounding Switch Kit - (Inc. #32,48,49 & 50) PLN-530069182
...
A
Decal - Starting Instructions 1700 w/o Blade Type 1 Not Shown. PLN-530025708
...
A
Decal - Starting Instructions 1700 w/o Blade Type 2; 1700 w/Blade - Type 1 Not Shown. PLN-530026104
...
A
Decal - Starting Instructions 1700 w/o Blade Type 3 & 4 Not Shown. PLN-530027312
...
A
Decal - Starting Instructions 1700 w/Blade Type 2 & 3 Not Shown. PLN-530027311
...
B
Decal - Choke/Off 1700 w/o Blade - Type 1 PLN-530026745
...
B
Decal - Choke/Off 1700 w/o Blade - Type 2 PLN-530026604
...
B
Decal - Choke/Off 1700 w/o Blade - Type 3 PLN-530027116
...
B
Decal - Choke/Off 1700 w/o Blade - Type 4 PLN-530027457
...
B
Decal - Choke/Off 1700 w/Blade Type 1 PLN-530026745
...
B
Decal - Choke/Off 1700 w/Blade Type 2 PLN-530027113
...
B
Decal - Choke/Off 1700 w/Blade Type 3 PLN-530027116
...
xx
Decal - Shroud (Right) Not Shown. PLN-530025712
...
xx
Decal - Shroud (Left) Not Shown. PLN-530025713
...
...
...
Processing
