Weed Eater 1600T Gas Trimmer

Model: 1600T Gas Trimmer

Back To Assemblies

Save Part Not Listed?
product name

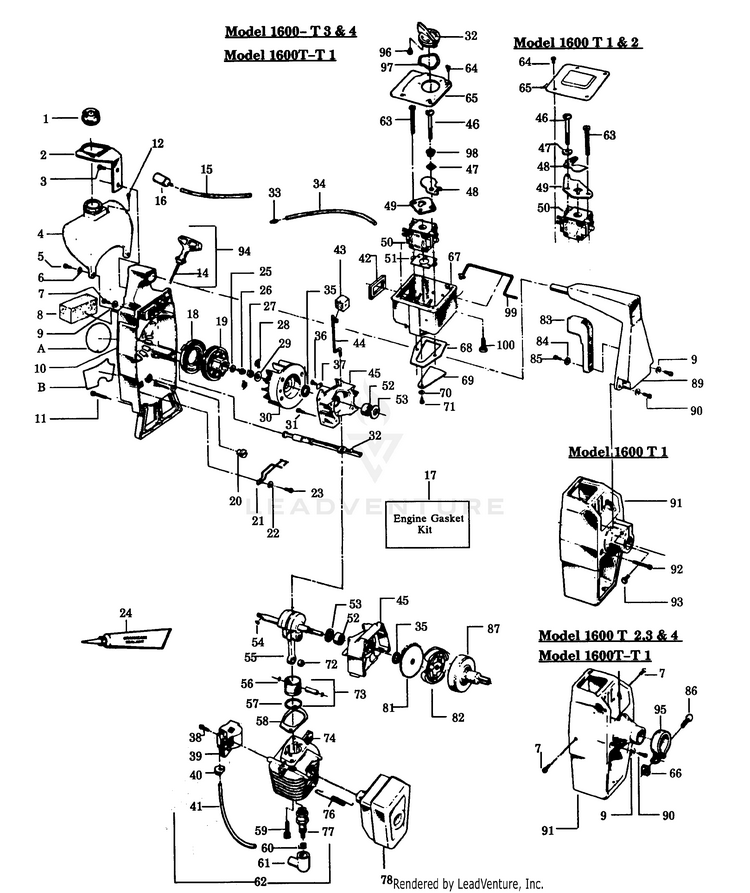

POWER UNIT

...
...
1
Assy-Fuel Cap (Incl. "O" Ring) PLN-530014347
...
2
Fuel Tank Bracket PLN-530025377
...
3
Screw PLN-530016107
...
4
Fuel Tank Ass'y. (Inc.1,12,15 & 16) PLN-530010887
...
5
Screw #10x1 PLN-530015509
...
6
Washer PLN-530015123
...
7
1600 G.TRIMMER-T1 PLN-530015168
...
7
1600 G.TRIMMER-T2,3 & 4; 1600T-T1 PLN-530015590
...
8
Air Filter PLN-530024371
...
9
Washer #10-1600 G.TRIMMER-T1 Only PLN-530015274
...
10
Fan Housing PLN-530010891
...
11
1600 G.TRIMMER-T1 PLN-530015305
...
11
1600 G.TRIMMER-T2,3, & 4; 1600T-T1 PLN-530015594
...
12
Check Valve - Duck Bill PLN-530026119
...
14
Rope Kit PLN-530069232
...
15
Fuel Line-1600 G.TRIMMER-T1 & 2 PLN-530021045
...
15
Line Kit - 1600 G.TRIMMER-T 3 & 4; 1600T-T1 PLN-530069247
...
16
1600 G.TRIMMER-T1 & 2 PLN-530091878
...
16
Assy-Fuel Pickup PLN-530095646
...
17
Engine Gasket Kit (*Indicates Contents) PLN-530069219
...
18
KIT STARTER SPRING PLN-545008009
...
19
Starter Pulley PLN-530026048
...
20
Kill Switch Button PLN-530026679
...
21
Kill Switch Spring PLN-530026559
...
22
Washer PLN-530015382
...
23
Screw #8x3/8 PLN-530015407
...
24
Crankcase Sealant - 3 oz. tube PLN-530030054
...
25
Washer #10 PLN-530015123
...
26
Screw #10-3/4 PLN-530015479
...
27
Flywheel Nut PLN-530626605
...
28
Spring-Starter Dog PLN-530023817
...
29
Washer PLN-530015127
...
30
Flywheel Ass'y. (Inc.28) PLN-530039114
...
31
Screw PLN-530015369
...
32
1600 G.TRIMMER-T1 & 2 PLN-530024303
...
32
1600 G.TRIMMER-T3 & 4; 1600T-T1 PLN-530027101
...
33
1600 G.TRIMMER-T1 & 2 PLN-530025472
...
33
1600 G.TRIMMER-T3 & 4; 1600T-T1 PLN-530026981
...
34
Carburetor Fuel Line PLN-530021073
...
35
Crankshaft Seal Included in Engine Gasket Kit. PLN-530019059
...
36
Screw - 1600 G.TRIMMER-T1 & 2 Only PLN-530015004
...
37
Choke Wire Clamp - 1600 G.TRIMMER-T1 & 2 PLN-530024651
...
38
Screw PLN-530015816
...
39
Ignition Module Kit PLN-530069181
...
40
Plug Wire Grommet PLN-530024435
...
41
High Tension Lead Wire PLN-530039082
...
42
Carburetor Case Seal Included in Engine Gasket Kit. PLN-530019105
...
43
Choke Wire Boot - 1600 G.TRIMMER-T1 & 2 Only Included in Engine Gasket Kit. PLN-530023373
...
44
Choke Wire - 1600 G.TRIMMER-T1 & 2 Only PLN-530026236
...
45
Crankcase Ass'y (Inc.35,52 and Qty. 1 of #31) PLN-530010757
...
46
1600 G.TRIMMER-T1 & 2 PLN-530015404
...
46
1600 G.TRIMMER-T3 & 4; 1600T-T1 PLN-530015630
...
47
Wave Washer PLN-530015254
...
48
1600 G.TRIMMER-T1 & 2 PLN-530024558
...
48
1600 G.TRIMMER-T3 & 4; 1600T-T1 PLN-530026772
...
49
1600 G.TRIMMER-T1 & 2 PLN-530026237
...
49
1600 G.TRIMMER-T3 & 4; 1600T-T1 PLN-530026797
...
50
Carburetor (WA-149) PLN-530035183
...
51
Carburetor Gasket Included in Engine Gasket Kit. PLN-530019157
...
52
Crankshaft Bearing PLN-530032029
...
53
Crankshaft Thrust Washer PLN-530015351
...
54
Flywheel Key PLN-530015126
...
55
1600 G.TRIMMER-T1 & 2 PLN-530026675
...
55
1600 G.TRIMMER-T3 PLN-530010858
...
55
1600 G.TRIMMER-T4; 1600T-T1 PLN-530010844
...
56
Wrist Pin Retainer PLN-530015162
...
57
1600 G.TRIMMER-T1,2 & 3 PLN-530024302
...
57
1600 G.TRIMMER-T4; 1600T-T1 PLN-530027369
...
58
Engine Gasket Kit Included in Engine Gasket Kit. PLN-530069219
...
59
Screw #1/4-20x3/4 PLN-530015239
...
60
Spark Plug Boot PLN-507475326
...
61
Spark Plug Boot PLN-530003934
...
62
High Tension Lead Ass'y.(Inc.41,60,61) PLN-530039103
...
63
1600 G.TRIMMER-T1 & 2 PLN-530015379
...
63
1600 G.TRIMMER-T3 & 4; 1600T-T1 PLN-530015674
...
64
Screw PLN-530015235
...
65
1600 G.TRIMMER-T1 & 2 PLN-530026029
...
65
1600 G.TRIMMER-T3 & 4; 1600T-T1 PLN-530027100
...
66
Nut #12-24 PLN-530015610
...
67
1600 G.TRIMMER-T1 & 2 PLN-530010453
...
67
1600 G.TRIMMER-T3 & 4;1600T-T1 PLN-530027189
...
68
Carburetor Case Crankcase Gasket Included in Engine Gasket Kit. PLN-530019108
...
69
Reed Valve PLN-530024438
...
70
Reed Valve Washer PLN-530023367
...
71
Screw #6-19x5/16 PLN-530015241
...
72
1600 G.TRIMMER-T1, 2 & 3 PLN-530032057
...
72
1600 G.TRIMMER-T4; 1600T-T1 PLN-530032092
...
73
1600 G.TRIMMER-T1,2 & 3 PLN-530022198
...
73
1600 G.TRIMMER-T4; 1600T-T1 PLN-530069240
...
74
Cylinder PLN-530012190
...
76
Muffler Spring PLN-530036409
...
77
Spark Plug (CJ-14) PLN-530030077
...
78
1600T PLN-530069243
...
81
Clutch Washer Kit PLN-530069196
...
82
Clutch Ass'y. Kit (Incl. Clutch Washer) PLN-530069194
...
83
Throttle Trigger PLN-530025342
...
84
Throttle Washer PLN-530015382
...
85
Screw #8-16x3/8 PLN-530015407
...
86
Screw 1/4-20x9/16 - 1600 G.TRIMMER-T2,3 & 4; 1600T-T1 PLN-530015609
...
87
1600 G.TRIMMER-T1 PLN-530010796
...
87
1600 G.TRIMMER-T2,3 & 4; 1600T-T1 PLN-530010797
...
89
Handle PLN-530025704
...
90
Screw #10-24x7/8 PLN-530015163
...
91
1600 G.TRIMMER-T1 PLN-530012096
...
91
1600 G.TRIMMER-T2,3 & 4; 1600T-T1 PLN-530026547
...
92
Screw #10-24x1-1/2 - 1600 G.TRIMMER-T1 Only PLN-530015376
...
93
Pinch Clamp Bolt-1600 G.TRIMMER-T1 Only PLN-530625509
...
95
Clamp-1600 G.TRIMMER-Type 2,3 & 4 1600T-T1 PLN-530026560
...
96
Screw PLN-530015740
...
97
Washer-1600 G.TRIMMER-T 3 & 4;1600T-T1 PLN-530015741
...
98
Spacer-1600 G.TRIMMER-T 3 & 4; 1600T-T 1 PLN-530015673
...
99
Throttle Wire-1600 G.TRIMMER-T3,4; 1600T-T1 PLN-530027190
...
100
Screw-1600 G.TRIMMER-T3 & 4; 1600T-T1 PLN-530015723
...
A
1600 G.TRIMMER-T1 & 2 PLN-530025708
...
A
1600 G.TRIMMER-T3 & 4; 1600T-T1 PLN-530027312
...
B
1600 G.TRIMMER-T1 & 2 PLN-530026421
...
B
1600 G.TRIMMER-T3 & 4;1600T-T1 PLN-530027116
