Weed Eater 1216 Electric Trimmer

Model: 1216 Electric Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

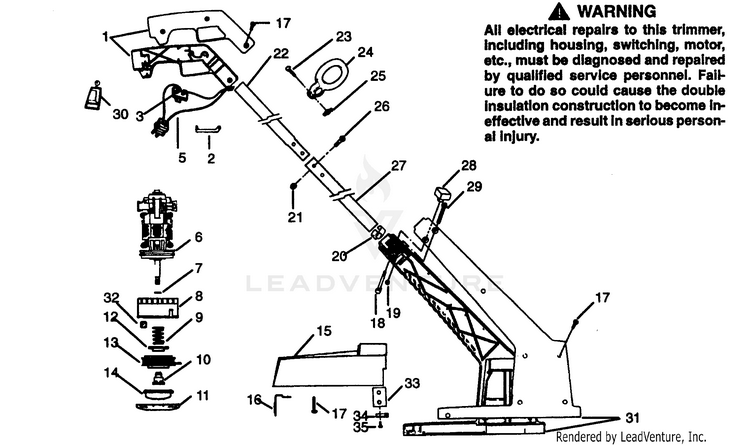

TRIMMER ASSEMBLY

...
...
1
Upper Handle Set US & Can Model 1214,1216 PLN-530347598
...
1
HANDLE-UPPER PLN-530402060
...
2
Trigger PLN-530347654
...
3
On-Off Switch PLN-530347897
...
5
Wiring Harness (Incl. 3) PLN-530401654
...
6
Motor Assembly Model 1214 PLN-530400507
...
6
Motor Assembly Model 1216 PLN-530400508
...
7
Washer PLN-530016030
...
8
Hub Assembly w/line Saver PLN-530347956
...
9
Spring PLN-530340007
...
10
Drive Gear Assembly PLN-530350365
...
11
Lock Ring PLN-530092133
...
12
Cap Spring PLN-530328929
...
13
Spool w/Line Model 1214 PLN-952701519
...
13
Spool w/Line Model 1216 PLN-952701523
...
14
Tap Button PLN-530401182
...
15
Shield Type 2 & 3 Model 1214 PLN-530351806
...
15
Shield Type 1 & 2 Model 1216 PLN-530347595
...
15
Type 3 & Model 1216 PLN-530351807
...
16
Line Limiter Blade Model 1214 Type 1 PLN-530350362
...
16
Line Limiter Blade Type 2-3 & Model 1216 PLN-530350362
...
17
Screw PLN-530352036
...
18
Screw PLN-530348051
...
19
Nut PLN-534790500
...
20
Snap Button PLN-530401555
...
21
Nut PLN-530403094
...
22
Upper Tube PLN-530401283
...
23
Bolt PLN-530340228
...
24
Assist Handle Model 1214 PLN-530326261
...
24
Assist Handle Model 1216 PLN-530351817
...
25
Wing Nut PLN-530400013
...
26
Screw PLN-530346034
...
27
Lower Tube English PLN-530400276
...
27
Lower Tube French/English PLN-530401366
...
28
Knob PLN-530347898
...
29
Screw PLN-530348050
...
30
Cord Retainer PLN-530347653
...
31
Motor Housing Set Type 2-3 Model 1214 PLN-530351810
...
31
Motor Housing Set Type 1, 3, & Model 1216 PLN-530347570
...
31
Motor Housing Set Type 2 Model 1216 PLN-530351811
...
32
Foam Counterweight Model 1216 PLN-530350017
...
33
Line Limiter - Type 2-3 Model 1214 PLN-530351802
...
33
Line Limiter - Type 2 Model 1216 PLN-530351802
...
34
Blade Cover - Type 2-3 Model 1214 PLN-530351801
...
34
Blade Cover - Type 2 Model 1216 PLN-530351801
...
35
Screw Type 2-3 Model 1214 PLN-530351800
...
35
Screw Type 2 Model 1216 PLN-530351800
...
xx
Warning Decal English Not Shown. PLN-530400274
...
xx
Warning Decal French/English Not Shown. PLN-530380773
...
xx
Warning Decal Model 1216 Not Shown. PLN-530402288
...
xx
Carton Contents Bag Model 1214 Not Shown. PLN-530400191
...
xx
Carton Contents Bag Model 1216 Not Shown. PLN-530400192
...
xx
Operator's ManualUS Model 1214,1216 Not Shown. PLN-530083585
...
xx
Operator's ManualCan. Model 1214,1216 Not Shown. PLN-530081439
...
xx
Operator Manual, XT14 Not Shown. PLN-530083585
...
...
...
