Weed Eater 1000 G.TRIMMER Gas Trimmer

Model: 1000 G.TRIMMER Gas Trimmer

Back To Assemblies

Save Part Not Listed?
product name

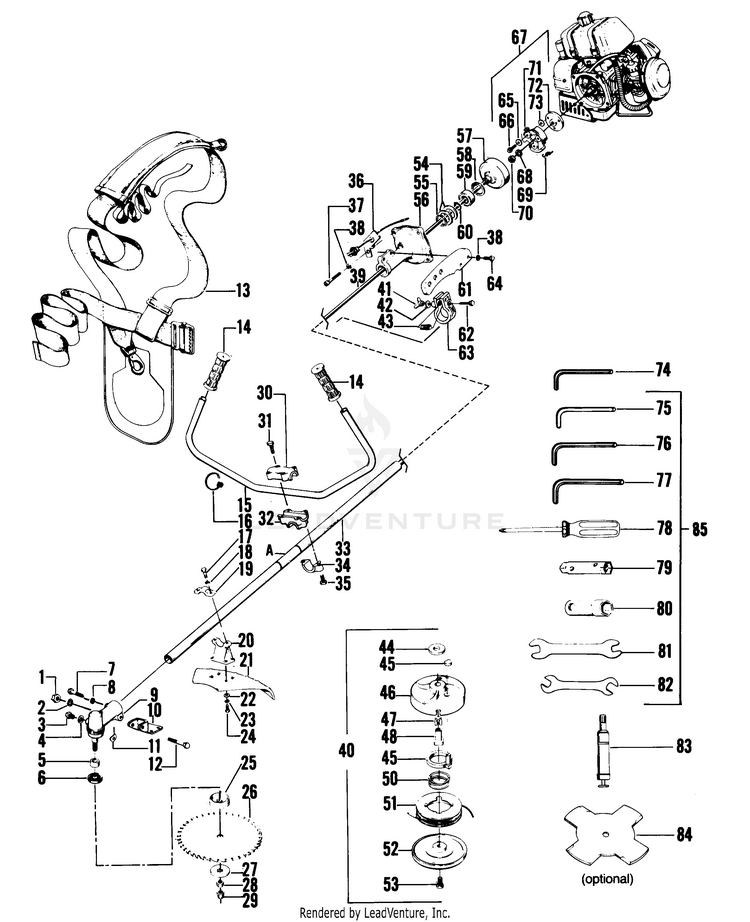

DRIVE SHAFT

...
...
1
Nut - 6mm - Housing (Gear Box) PLN-530093703
...
2
Lockwasher - 6mm - Housing (Gear Box) PLN-530091578
...
3
Plug - Oil Hole PLN-530091581
...
4
Washer PLN-530091582
...
5
Collar Shaft PLN-530091591
...
6
Oil Seal PLN-530091589
...
7
Bolt, Housing - 6 x 12mm PLN-530091579
...
8
Lockwasher, Bearing Housing PLN-530091578
...
9
Gear Box Assembly PLN-530092417
...
10
Bracket Shield/Gear Box See Service Ref.1 PLN-530093706
...
11
Filter, Washer PLN-530091584
...
12
Bolt, Gear Box - 6mm x 34mm PLN-530093704
...
13
Shoulder Strap Assembly PLN-530092117
...
14
Grip, Handlebar PLN-530091402
...
15
Handiebar PLN-530092248
...
16
Throttle Cable Tie Strap PLN-530024675
...
17
Bolt, Bracket Shield Assembly PLN-530091616
...
18
Washer, Bracket Shield Assembly PLN-530091615
...
19
Upper Cap Bracket, Shield Assembly PLN-530092414
...
20
Lower Bracket, Shield Assembly PLN-530092415
...
21
Shield PLN-530093743
...
22
Flat Washer PLN-530091622
...
23
Lock Washer PLN-530091623
...
24
Screw, Shield PLN-530093705
...
25
Upper Blade Adaptor PLN-530092143
...
26
10" Brush Blade PLN-952701547
...
27
Blade Adaptor (Lower) PLN-530091594
...
28
Nut PLN-530091596
...
29
Cap Nut PLN-530091595
...
30
Upper Cap, Handle Clamp Assembly PLN-530092411
...
31
Screw, Handlebar Clamp Assembly PLN-530092409
...
32
Middle Block, Handlebar Clamp Assembly PLN-530092412
...
33
Drive Shaft Housing Assembly PLN-530092402
...
34
Lower Cap, Handlebar Clamp Assembly PLN-530092413
...
35
Screw, Handlebar Clamp Assembly PLN-530093165
...
36
Run/Stop Switch Assembly PLN-530010395
...
37
Bolt, Motor Leg PLN-530092368
...
38
Lockwasher PLN-530092369
...
39
Drive Shaft PLN-530092401
...
40
Cutting Head Ass'y, (Incl. #44-53 & 74) PLN-530093954
...
41
Wing Nut PLN-530092422
...
42
Washer PLN-530092423
...
43
Spring PLN-530092424
...
44
Spacer PLN-530091664
...
45
Release Button Ass'y, (Incl. Lock Ring) PLN-530093602
...
46
Hub PLN-530091656
...
47
Line Saver PLN-530091425
...
48
Drive Adaptor PLN-530091423
...
50
Spring PLN-530091657
...
51
Spool w/line PLN-952701526
...
52
Cover, Cutting Head PLN-530091424
...
53
Screw, Cover PLN-530091662
...
54
Spacer, Clutch Housing PLN-530092396
...
55
Snap Ring, Clutch Housing PLN-530092397
...
56
Clutch Housing PLN-530092398
...
57
Drum, Clutch PLN-530092393
...
58
Snap Ring, Clutch Housing PLN-530092394
...
59
Bearing, Clutch Housing PLN-530092395
...
60
Snap Ring, Clutch Housing PLN-530091592
...
61
Bracket, Shoulder Harness PLN-530092399
...
62
Bolt PLN-530092421
...
63
Clamp - Tension PLN-530092419
...
64
Bolt, Shoulder Harness Bracket PLN-530089008
...
65
Washer, Clutch Shoe PLN-530092385
...
66
Bolt, Clutch Shoe PLN-530092389
...
67
Clutch Assembly (Inc.65,66,69,71,72,73) PLN-530092092
...
68
Washer, Clutch Assembly PLN-530092391
...
69
Spring, Clutch PLN-530092388
...
70
Nut, Clutch Assembly PLN-530092392
...
71
Clutch Shoe PLN-530092387
...
72
Clutch Rotor PLN-530092384
...
73
Washer, Clutch Shoe PLN-530092386
...
74
Allen Wrench - Cutting Head PLN-530091663
...
75
Head Removal Tool PLN-530091357
...
76
Wrench - 5 mm Hex PLN-530092259
...
77
Wrench - 4 mm Hex PLN-530092258
...
78
Screwdriver - Phillips PLN-530092425
...
79
Wrench - 10 mm & 12 mm Socket PLN-530092256
...
80
Wrench - Spark Plug Socket PLN-530092257
...
81
Wrench - 14 mm & 17 mm PLN-530091361
...
83
Grease Gun PLN-530091413
...
84
Weed Blade (Optional) PLN-952701546
...
85
Tool Kit (Incl.#75-82) PLN-530092255
...
A
Decal - Handlebar Locator PLN-530024693
...
xx
Operator's Manual Not Shown. PLN-530064344
