Walbro Carburetor WYP-4-1

Model: Carburetor WYP-4-1

Save Part Not Listed?
product name

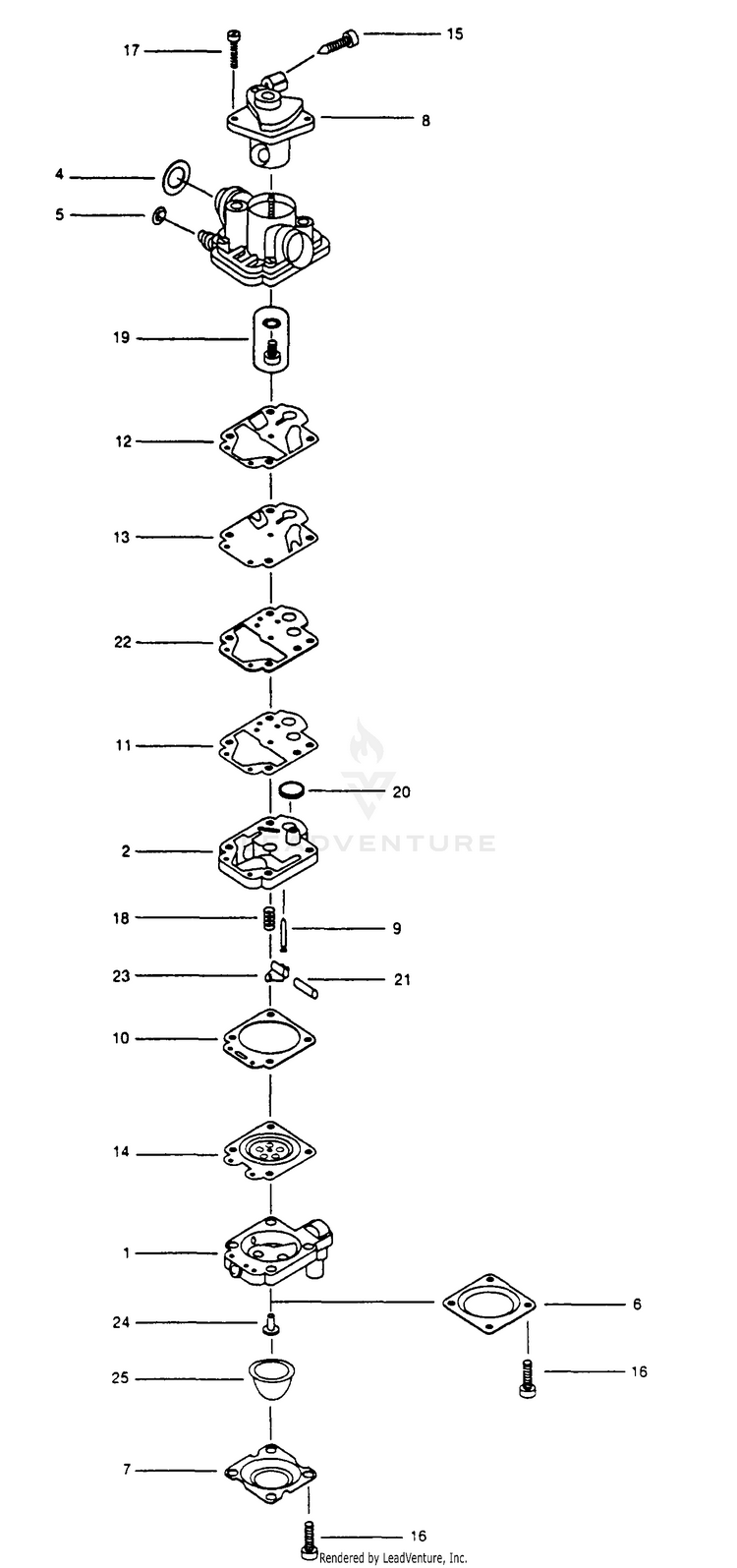

WYP-4-1 PARTS LIST

...
...
xx
Venturi (mm) WLB-12.2
...
xx
Kit - Repair Contents in Repair Kit WLB-K20-WYMP
...
xx
Kit - Gasket/Diaphragm Contents in Gasket/Diaphragm Kit WLB-D20-WYMP
...
2
Body Assembly - Pump WLB-5-2431
...
6
Cover - Metering Diaphragm WLB-21-158
...
8
Valve Assembly - Throttle WLB-34-562
...
9
Valve - Inlet Needle Contents in Repair Kit WLB-82-82
...
10
Gasket - Metering Diaphragm Contents in Gasket/Diaphragm Kit WLB-92-251
...
11
Gasket - Plate Contents in Gasket/Diaphragm Kit WLB-92-317
...
12
Gasket - Pump Contents in Gasket/Diaphragm Kit WLB-92-316
...
13
Diaphragm - Pump Contents in Gasket/Diaphragm Kit WLB-95-117
...
14
Diaphragm Ass'y - Metering Contents in Gasket/Diaphragm Kit WLB-95-526
...
16
Screw - Pump Cover - WLB-96-325
...
17
Screw - Throttle Collar - WLB-96-364
...
18
Spring - Metering Lever WLB-98-350
...
19
Jet Kit WLB-112-601
...
20
Screen - Fuel Inlet Contents in Repair Kit WLB-140-70
...
21
Pin - Metering Lever WLB-144-77
...
22
Plate - Pump WLB-157-317
...
23
Lever - Metering Contents in Repair Kit WLB-166-48
Schematic Image Zoomed
