Walbro Carburetor WYM-4-1

Model: Carburetor WYM-4-1

Save
Part Not Listed?Part Not Listed?
product name

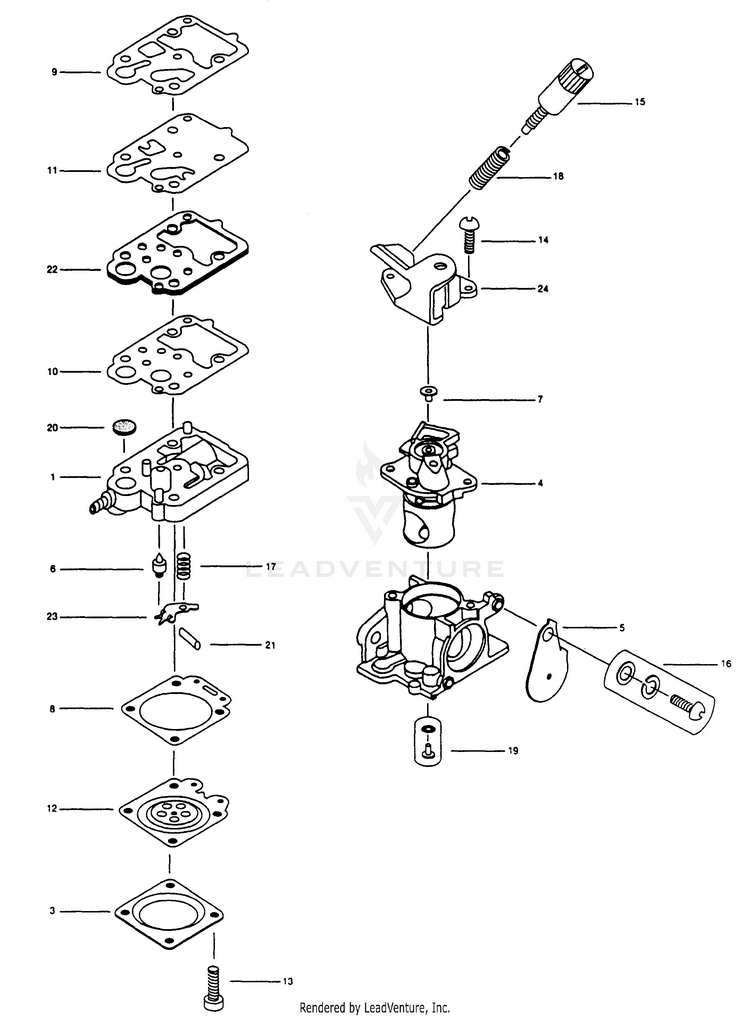

WYM-4-1 PARTS LIST

...
...
xx
Kit - Repair Contents in Repair Kit WLB-K20-WYMP

...
xx
Kit-Gasket/Diaphragm Contents in Gasket/Diaphragm Kit WLB-D20-WYMP

...
1
Body Assembly - Pump WLB-5-2541-1

...
3
Cover - Metering Diaphragm WLB-21-158

...
4
Valve Assembly - Throttle WLB-34-604

...
5
Valve - Choke WLB-62-145

...
6
Valve - Inlet Needle Contents in Repair Kit WLB-82-82

...
8
Gasket - Metering Diaphragm Contents in Gasket/Diaphragm Kit WLB-92-251

...
9
Gasket - Pump Contents in Gasket/Diaphragm Kit WLB-92-316

...
10
Gasket - Plate Contents in Gasket/Diaphragm Kit WLB-92-317

...
11
Diaphragm - Pump Contents in Gasket/Diaphragm Kit WLB-95-117

...
12
Diaphragm Ass'y - Metering Contents in Gasket/Diaphragm Kit WLB-95-526

...
13
Screw - Cover - WLB-96-325

...
14
Screw - Bracket - WLB-96-374

...
15
Screw - Idle Adjust WLB-96-376

...
16
Screw - Valve WLB-96-601

...
17
Spring - Metering Lever WLB-98-350

...
18
Spring - Idle Adjust Screw WLB-98-3075

...
19
Jet - Kit WLB-112-601

...
20
Screen - Fuel Inlet Contents in Repair Kit WLB-140-70

...
21
Pin - Metering Lever WLB-144-77

...
22
Plate - Pump WLB-157-317

...
23
Lever - Metering Contents in Repair Kit WLB-166-48

...
24
Bracket - Idle Adjust WLB-167-109
...
...
...
