Walbro Carburetor WYF-9-1

Model: Carburetor WYF-9-1

Save
 Part Not Listed?Part Not Listed?
product name

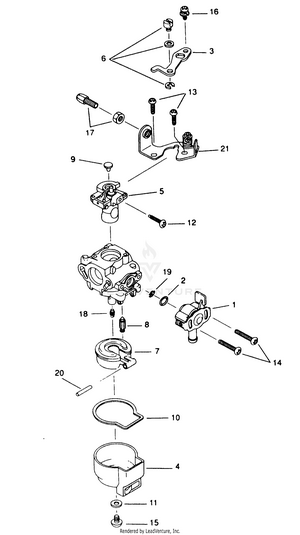

WYF-9-1 PARTS LIST

...
...
xx
Kit - Repair Contents in Repair Kit WLB-K10-WYF
...
xx
Kit-Gasket/Diaphragm Contents in Gasket/Diaphragm Kit WLB-D10-WYF
...
4
Bowl Assembly - Fuel WLB-20-693
...
5
Valve Assembly - Throttle WLB-34-635
...
6
Swivel Kit WLB-52-552
...
7
Float WLB-75-21
...
8
Valve - Inlet Needle Contents in Repair Kit WLB-82-85
...
10
Gasket - Bowl Contents in Gasket/Diaphragm Kit WLB-92-342
...
11
Gasket - Bowl Screw Contents in Gasket/Diaphragm Kit WLB-92-353
...
12
Screw - Idle Adjust WLB-96-314.
...
13
Screw - Throttle Return WLB-96-323
...
14
Screw - Shut Off Body WLB-96-456
...
15
Screw - Bowl Retainer WLB-96-403
...
17
Screw & Nut Kit (cable) WLB-96-693
...
18
Jet WLB-112-269
...
19
Screen - Fuel Inlet WLB-140-70
...
20
Pin - Float Contents in Repair Kit WLB-144-60
...
21
Bracket Assembly - Cable WLB-167-112
...
xx
Valve - Shut Off (Not Shown) WLB-176-550
...
...
...
