Walbro Carburetor WYF-4-1

Model: Carburetor WYF-4-1

Save Part Not Listed?
product name

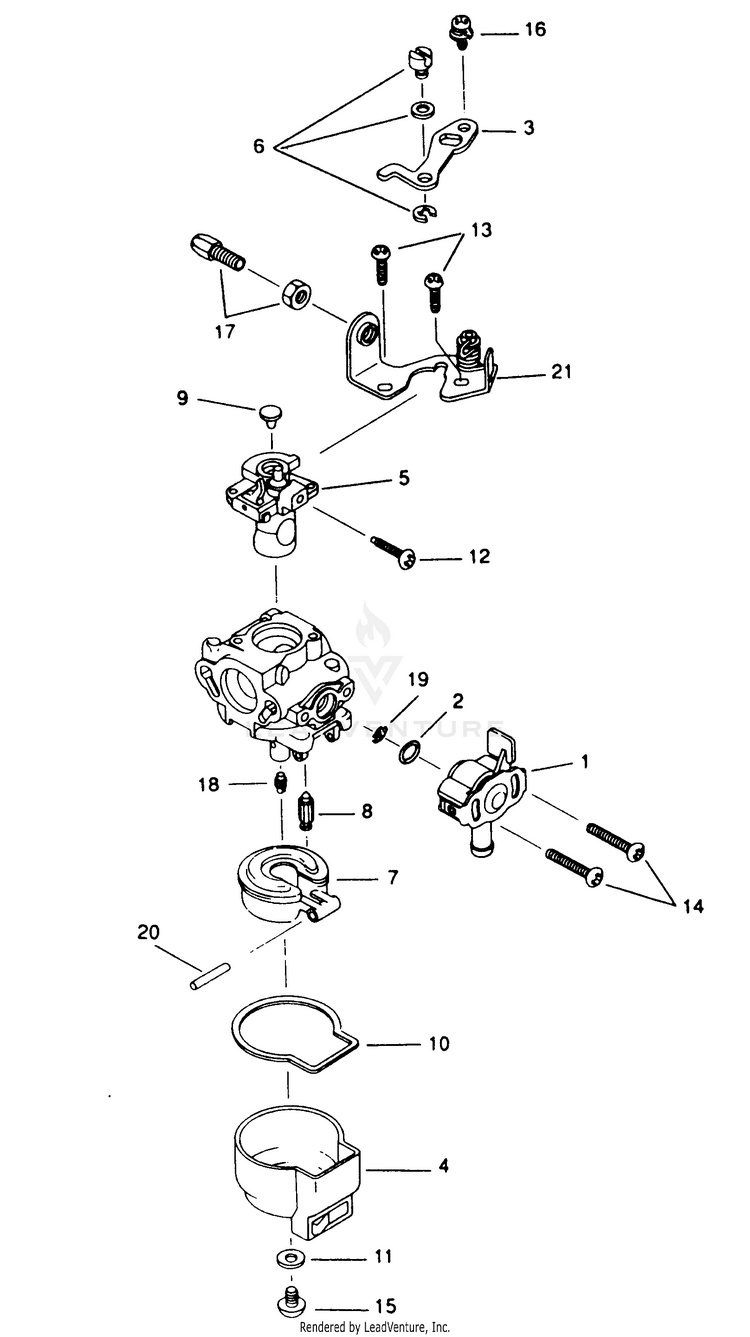

WYF-4-1 PARTS LIST

...
...
xx
Kit - Repair Contents in Repair Kit WLB-K10-WYF
...
xx
Kit-Gasket/Diaphragm Contents in Gasket/Diaphragm Kit WLB-D10-WYF
...
2
O'Ring - Shut Off Contents in Repair Kit WLB-16-183
...
3
Lever - Throttle WLB-18-3044
...
4
Bowl Assembly - Fuel WLB-20-164
...
5
Valve Assembly - Throttle WLB-34-611
...
7
Float WLB-75-21
...
8
Valve - Inlet Needle Contents in Repair Kit WLB-82-85
...
9
Plug - Dust WLB-88-169
...
10
Gasket - Bowl Contents in Gasket/Diaphragm Kit WLB-92-342
...
11
Gasket - Bowl Screw Contents in Gasket/Diaphragm Kit WLB-92-343
...
12
Screw - Idle Adjust WLB-96-314.
...
13
Screw - Throttle Return WLB-96-323
...
14
Screw - Shut Off Body WLB-96-364
...
15
Screw - Bowl Retainer WLB-96-403
...
16
Screw - Lever WLB-96-682
...
17
Screw & Nut Kit (cable) WLB-96-683
...
18
Jet WLB-112-354
...
19
Screen - Fuel Inlet WLB-140-70
...
20
Pin - Float Contents in Repair Kit WLB-144-60
...
21
Bracket Assembly - Cable WLB-167-537
