Walbro Carburetor WTA-18-1

Model: Carburetor WTA-18-1

Save Part Not Listed?
product name

Popular Parts

Popular Parts

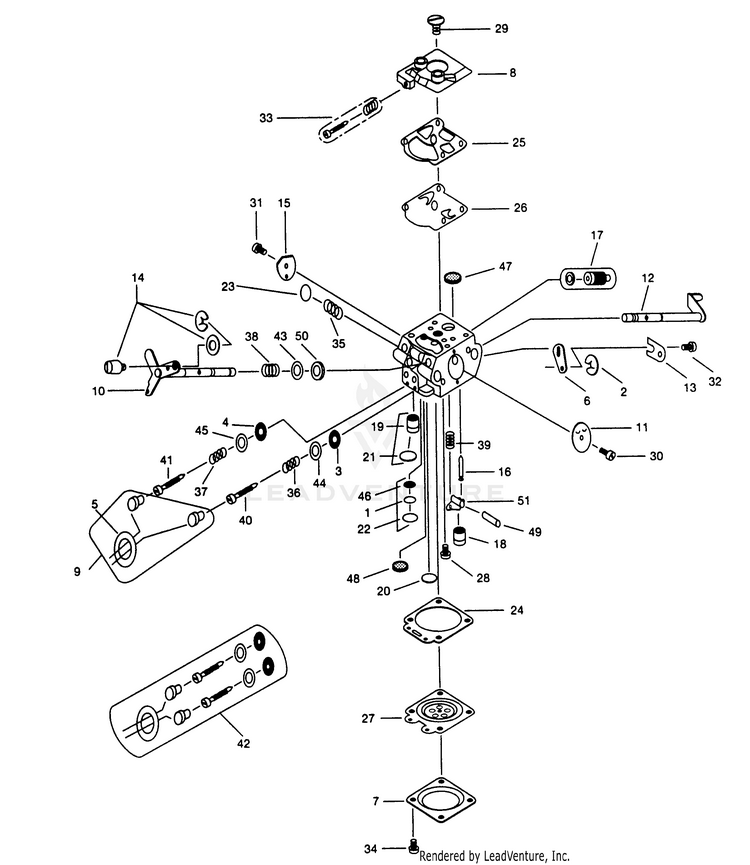

WTA-18-1 PARTS LIST

...
...
xx
Venturi (mm) WLB-.953
...
xx
Kit - Repair Contents in Repair Kit WLB-K20-WTA
...
xx
Kit - Gasket/Diaphragm Contents in Gasket/Diaphragm Kit WLB-D10-WTA
...
1
Ring - Screen Retainer Contents in Repair Kit WLB-16-42
...
6
Lever-throttle WLB-18-3043
...
7
Cover - Metering Diaphragm WLB-21-158
...
8
Cover - Fuel Pump WLB-21-3159
...
10
Shaft Assembly - Throttle WLB-30-1245
...
11
Valve - Throttle WLB-34-323
...
12
Shaft Assembly - Choke WLB-40-984
...
15
Valve - Choke WLB-62-94
...
16
Valve - Inlet Needle Contents in Repair Kit WLB-82-75
...
18
Seat Assembly - Check Valve WLB-84-613
...
20
Plug - Welch 5/16 Contents in Repair Kit WLB-88-171
...
21
Plug - Welch Contents in Repair Kit WLB-88-119
...
23
Ball - Choke Friction WLB-89-13
...
24
Gasket - Metering Diaphragm Contents in Gasket/Diaphragm Kit WLB-92-251
...
25
Gasket - Fuel Pump Contents in Gasket/Diaphragm Kit WLB-92-225
...
26
Diaphragm - Fuel Pump Contents in Gasket/Diaphragm Kit WLB-95-118
...
27
Diaphragm Ass'y - Metering Contents in Gasket/Diaphragm Kit WLB-95-526
...
28
Screw - Metering Lever Pin WLB-96-156
...
29
Screw - Pump Cover WLB-96-166
...
30
Screw - Throttle Valve WLB-96-142
...
31
Screw - Choke Valve WLB-96-142
...
33
Screw - Idle Adjust Kit WLB-96-647
...
34
Screw - Metering Cover - WLB-96-589
...
35
Spring - Choke Friction WLB-98-162
...
36
Spring - Needle (idle) WLB-98-404
...
37
Spring - Needle (power) WLB-98-405
...
38
Spring - Throttle Return WLB-98-3175
...
39
Spring - Metering Lever WLB-98-387
...
40
Needle - Idle Contents in Needle Kit WLB-102-428
...
41
Needle - Power Contents in Needle Kit WLB-102-425
...
43
Washer - Throttle Shaft WLB-136-90
...
46
Screen - Check Valve Contents in Repair Kit WLB-140-69
...
47
Screen - Fuel Inlet Contents in Repair Kit WLB-140-70
...
49
Pin - Metering Lever WLB-144-77
...
51
Lever - Metering Contents in Repair Kit WLB-166-48
