Walbro Carburetor WT-66-1

Model: Carburetor WT-66-1

Save Part Not Listed?
product name

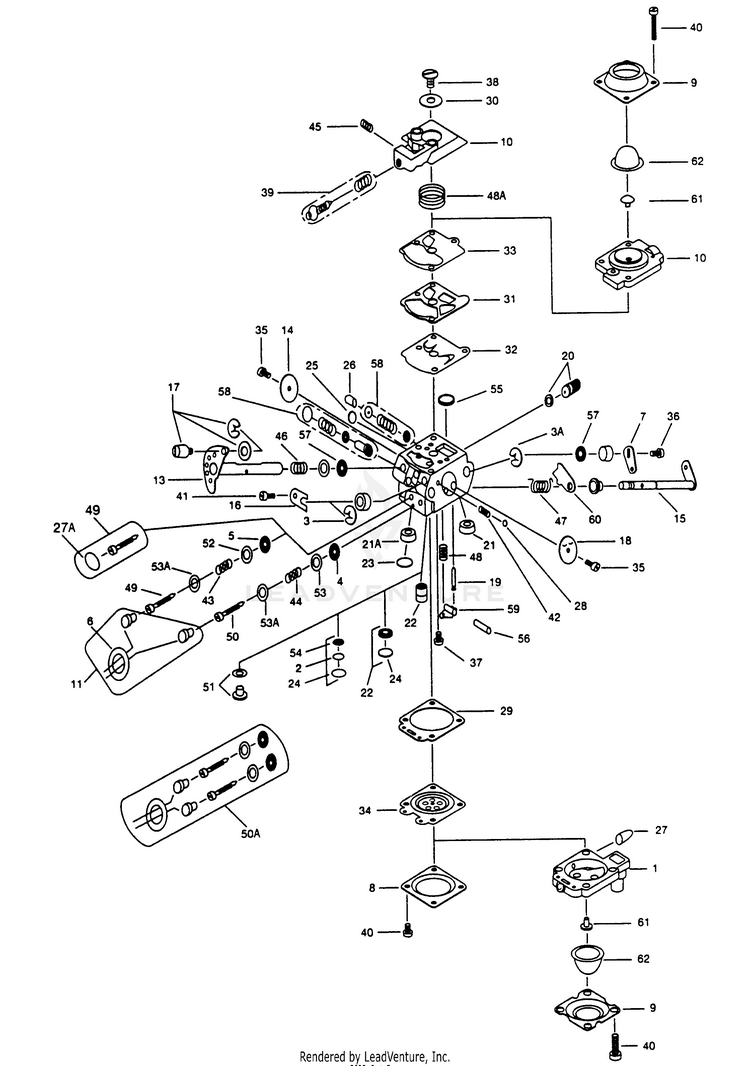

WT-66-1 PARTS LIST

...
...
xx
Venturi (mm) WLB-.953
...
xx
Kit - Repair Contents in Repair Kit WLB-K10-WAT
...
xx
Kit - Gasket/Diaphragm Contents in Gasket/Diaphragm Kit WLB-D10-WAT
...
2
Ring - Screen Retainer Contents in Repair Kit WLB-16-42
...
3
Ring - Shaft Retainer WLB-16-73
...
7
Lever - Throttle WLB-18-488
...
8
Cover - Metering Diaphragm WLB-21-158
...
10
Cover - Fuel Pump WLB-21-420
...
13
Shaft - Assembly Throttle WLB-30-864
...
14
Valve - Throttle WLB-34-158
...
19
Valve - Inlet Needle Contents in Repair Kit WLB-82-75
...
23
Plug - Welch Contents in Repair Kit WLB-88-171
...
24
Plug - Welch or Cup Contents in Repair Kit WLB-88-119
...
29
Gasket - Metering Diaphragm Contents in Gasket/Diaphragm Kit WLB-92-251
...
31
Gasket - Fuel Pump Contents in Gasket/Diaphragm Kit WLB-92-225
...
32
Diaphragm - Fuel Pump Contents in Gasket/Diaphragm Kit WLB-95-118
...
34
Diaphragm - Assembly Metering Contents in Gasket/Diaphragm Kit WLB-95-526
...
35
Screw - Throttle Valve WLB-96-207
...
37
Screw - Metering Lever Pin WLB-96-156
...
38
Screw - Pump Cover WLB-96-166
...
39
Screw - Idle Adjust Kit WLB-96-635
...
40
Screw - Metering Cover - WLB-96-589
...
43
Spring - Needle (idle) WLB-98-404
...
44
Spring - Needle (power) WLB-98-405
...
46
Spring - Throttle Return WLB-98-234
...
48
Spring - Metering Lever WLB-98-304
...
49
Needle - Idle Contents in Needle Kit WLB-102-3063
...
50
Needle - Power Contents in Needle Kit WLB-102-332
...
54
Screen - Check Valve Contents in Repair Kit WLB-140-69
...
55
Screen - Fuel Inlet Contents in Repair Kit WLB-140-70
...
56
Pin - Metering Lever Contents in Repair Kit WLB-144-77
...
59
Lever - Metering Contents in Repair Kit WLB-166-48
