Walbro Carburetor WPF-2-1

Model: Carburetor WPF-2-1

Save Part Not Listed?
product name

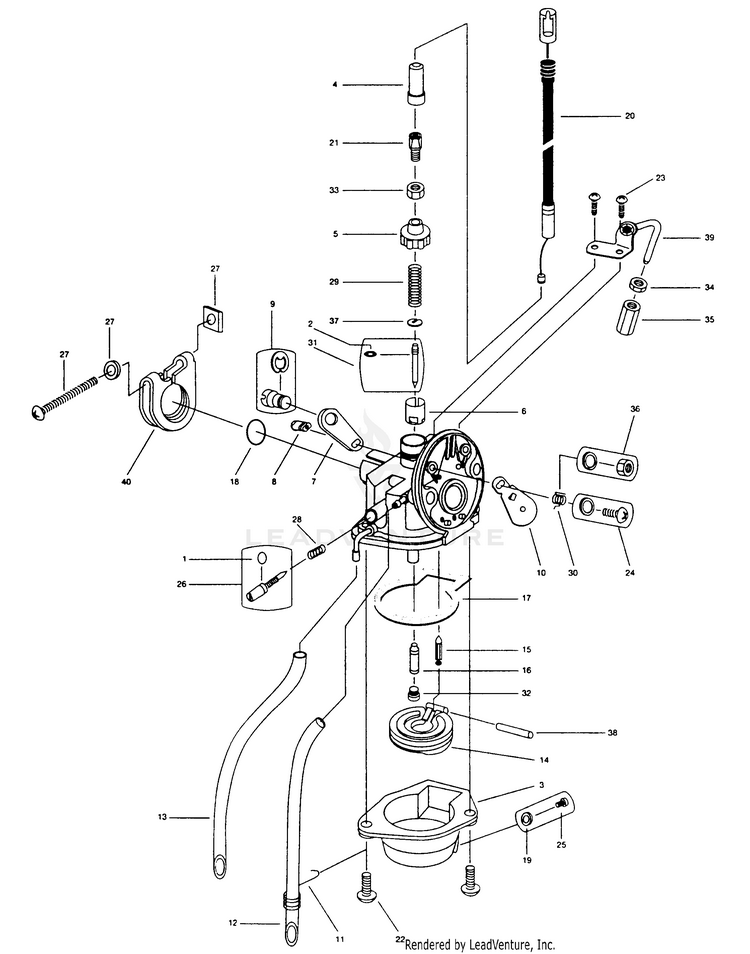

WPF-2-1 PARTS LIST

...
...
xx
Venturi (mm) WLB-10.0
...
xx
Kit - Repair Contents in Repair Kit WLB-K10-WPF
...
2
Clip - Needle WLB-16-255
...
3
Bowl-Float WLB-20-173
...
4
Cover - Cable Adj. WLB-21-3202
...
5
Cover - Top WLB-21-3203
...
6
Valve - Throttle WLB-34-354
...
7
Lever - Choke WLB-42-300
...
8
Shaft - Choke WLB-44-3087
...
10
Valve - Choke WLB-62-200
...
14
Float WLB-75-21
...
15
Valve - Inlet Needle Contents in Repair Kit WLB-82-542
...
16
Nozzle WLB-86-3051
...
17
Gasket - Float Bowl Contents in Repair Kit WLB-92-342
...
18
Gasket - Mounting Contents in Repair Kit WLB-92-373
...
19
Gasket - Bowl Drain Contents in Repair Kit WLB-92-374
...
21
Screw - Cable Adj. WLB-96-412
...
22
Screw - Bowl - WLB-96-471
...
25
Screw/Washer - Bowl Drain WLB-96-707
...
26
Screw - Idle Adj. Kit WLB-96-712
...
27
Screw - Clamp Kit WLB-96-711
...
28
Spring - Idle Adjust Screw WLB-98-404
...
29
Spring - Throttle Return WLB-98-3230
...
31
Needle - Idle Kit WLB-102-605
...
32
Jet - Main WLB-112-453-054
...
33
Nut - Cable Adjust Screw WLB-134-57
...
36
Nut/Washer - Choke Shaft WLB-134-501
...
37
Washer - Spring Support WLB-136-235
...
38
Pin - Float Contents in Repair Kit WLB-144-60
...
40
Clamp WLB-195-44
