Walbro Carburetor WHL-19-1

Model: Carburetor WHL-19-1

Save Part Not Listed?

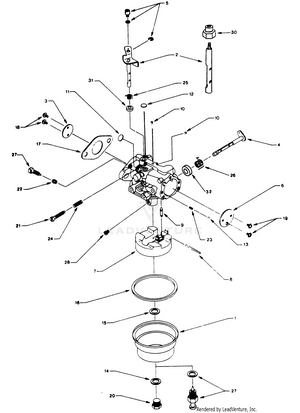

Popular Parts

Venturi (mm) WLB-.8125

Kit - Repair Contents in Repair Kit WLB-K1-WHL

Bowl - Fuel WLB-20-135

Shaft Assembly - Throttle WLB-30-1194

Valve - Throttle WLB-34-286

Shaft Assembly - Choke WLB-40-954

Valve - Choke WLB-62-130

Float Assembly WLB-75-566

Shaft - Float Assembly Contents in Repair Kit WLB-78-41

Valve - Inlet Needle Contents in Repair Kit WLB-82-529

Plug - Cup - WLB-88-14

Plug - Welch (3/8) Contents in Repair Kit WLB-88-180

Plug - Welch (5/16) Contents in Repair Kit WLB-88-54

Ball - Choke Friction WLB-89-13

Gasket - Bowl Retainer Contents in Repair Kit WLB-92-300

Gasket - Bowl Ring Contents in Repair Kit WLB-92-301

Gasket - Flange Contents in Repair Kit WLB-92-44

Screw - Throttle Valve - WLB-96-263

Screw - Choke Valve - WLB-96-263

Screw - Bowl Retainer WLB-96-340

Screw - Throttle Adjust WLB-96-349

Spring - Needle (idle) WLB-98-14

Spring - Choke Friction WLB-98-162

Spring - Throttle Adjust Screw WLB-98-3059

Needle - Idle WLB-102-434

Jet - 10/32 thread WLB-114-0430

Seal - Throttle Shaft WLB-156-40

Model: 1AHF08390

$16.00

In Stock

Replaced By :
