Walbro Carburetor WHG-16-1

Model: Carburetor WHG-16-1

Save
 Part Not Listed?Part Not Listed?
product name

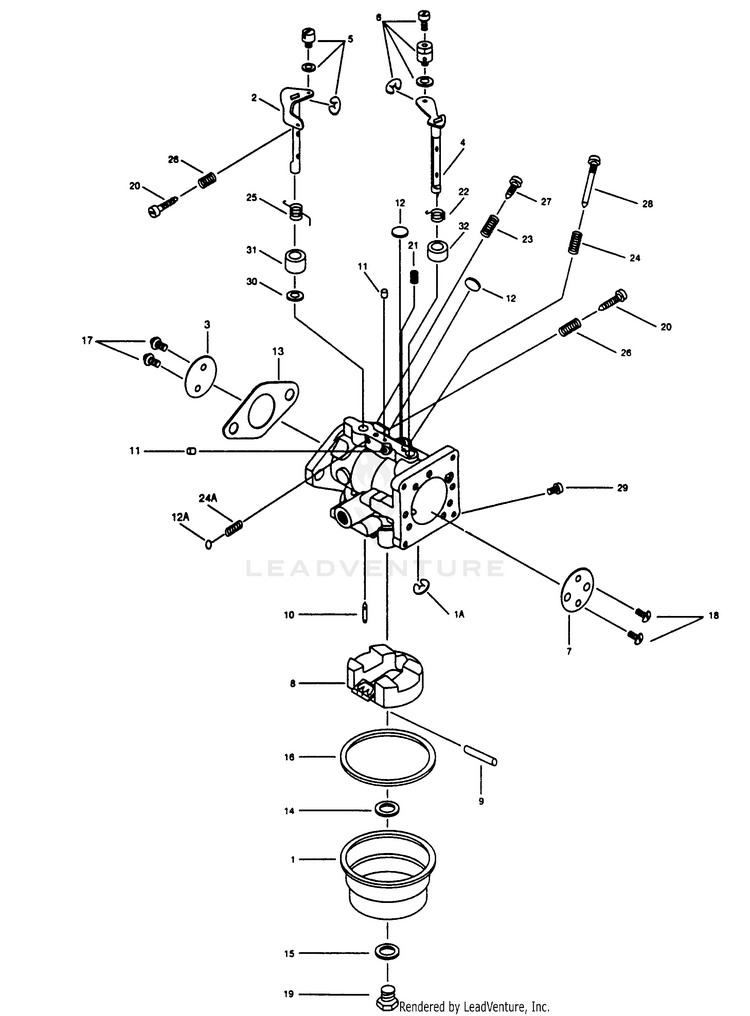

WHG-16-1 PARTS LIST

...
...
xx
Venturi (mm) WLB-1.000
...
xx
Kit - Repair Contents in Repair Kit WLB-K1-WHG
...
1
Bowl - Fuel WLB-20-180
...
2
Shaft Assembly - Throttle WLB-30-1034
...
3
Valve - Throttle WLB-34-18
...
4
Shaft Assembly - Choke WLB-40-877
...
7
Valve - Choke WLB-62-124
...
8
Float Assembly WLB-75-566
...
9
Shaft - Float Contents in Repair Kit WLB-78-41
...
10
Valve - Inlet Needle Contents in Repair Kit WLB-82-529
...
11
Plug - Cup - WLB-88-14
...
12
Plug - Welch - Contents in Repair Kit WLB-88-180
...
13
Gasket - Mounting Flange Contents in Repair Kit WLB-92-152
...
15
Gasket - Bowl Retainer Contents in Repair Kit WLB-92-300
...
16
Gasket - Body to Bowl Contents in Repair Kit WLB-92-301
...
17
Screw - Throttle Valve - WLB-96-207
...
18
Screw - Choke Valve - WLB-96-207
...
19
Screw - Bowl Retainer WLB-96-340
...
20
Screw - Throttle Adjust WLB-96-349
...
21
Spring - Choke Stop WLB-98-13
...
23
Spring - Needle (idle) WLB-98-14
...
25
Spring - Throttle Return WLB-98-3102
...
26
Spring - Choke Return WLB-98-3059
...
27
Needle - Idle WLB-102-51
...
29
Jet 10/32 thread WLB-114-0600
...
31
Seal - Throttle Shaft WLB-156-57
...
32
Seal - Choke Shaft WLB-156-18
...
...
...
