Walbro Carburetor WGA-9-1

Model: Carburetor WGA-9-1

Save Part Not Listed?
product name

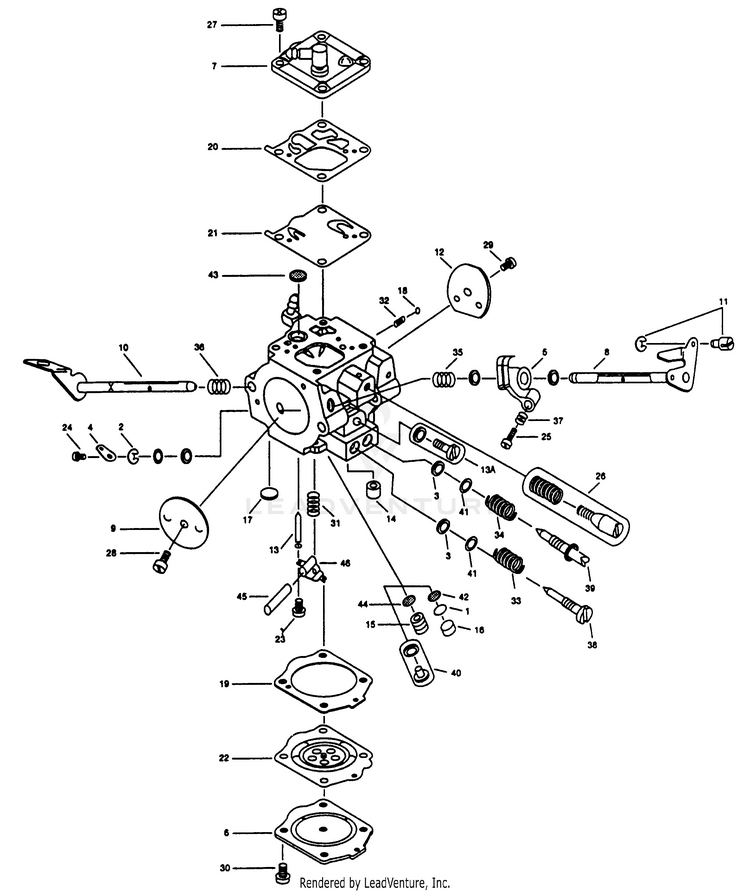

WGA-9-1 PARTS LIST

...
...
xx
Venturi (mm) WLB-22.82
...
xx
Kit - Repair Contents in Repair Kit WLB-K21-WGA
...
xx
Kit - Gasket/Diaphragm Contents in Gasket/Diaphragm Kit WLB-D10-WGA
...
2
Ring - Shaft Retainer - WLB-16-73
...
3
O'Ring - Needles - WLB-16-325
...
6
Cover - Metering Diaphragm WLB-21-3299
...
7
Cover - Fuel Pump WLB-21-3027
...
xx
Cap - Limiter (Not Shown) WLB-25-524
...
8
Shaft Assembly - Throttle WLB-30-1165
...
9
Valve - Throttle WLB-34-272
...
10
Shaft Assembly - Choke WLB-40-942
...
12
Valve - Choke WLB-62-158
...
13
Valve - Inlet Needle Contents in Repair Kit WLB-82-75
...
13A
Governor Kit WLB-84-603
...
14
Nozzle Assembly - Check Valve WLB-96-736
...
17
Plug - Welch (5/16) Contents in Repair Kit WLB-88-171
...
18
Ball - Choke Friction WLB-89-13
...
19
Gasket - Metering Diaphragm Contents in Gasket/Diaphragm Kit WLB-92-94
...
20
Gasket - Fuel Pump Contents in Gasket/Diaphragm Kit WLB-92-293
...
21
Diaphragm - Fuel Pump Contents in Gasket/Diaphragm Kit WLB-95-120
...
22
Diaphragm Assy - Metering Contents in Gasket/Diaphragm Kit WLB-95-537
...
23
Screw - Metering Lever Pin WLB-96-156
...
26
Screw - Idle Adjust Kit WLB-96-449
...
27
Screw - Fuel Pump Cover - WLB-96-543
...
28
Screw - Throttle Valve WLB-96-207
...
29
Screw - Choke Valve WLB-96-207
...
30
Screw - Metering Cover - WLB-96-589
...
31
Spring - Metering Lever WLB-98-192
...
32
Spring - Choke Friction WLB-98-162
...
33
Spring - Needle (idle) WLB-98-368
...
34
Spring - Needle (power) WLB-98-368
...
35
Spring - Throttle Return WLB-98-3062
...
38
Needle - Idle WLB-102-748
...
39
Needle - Power WLB-102-749
...
41A
Washer - Shaft - WLB-136-194
...
43
Screen - Fuel Inlet Contents in Repair Kit WLB-140-70
...
45
Pin - Metering Lever Contents in Repair Kit WLB-144-60
...
45A
Seal -Throttle Shaft WLB-156-31
...
46
Lever - Metering Contents in Repair Kit WLB-166-55
