product name

Walbro Carburetor WG-10-1

Model: Carburetor WG-10-1

Save Part Not Listed?
product name

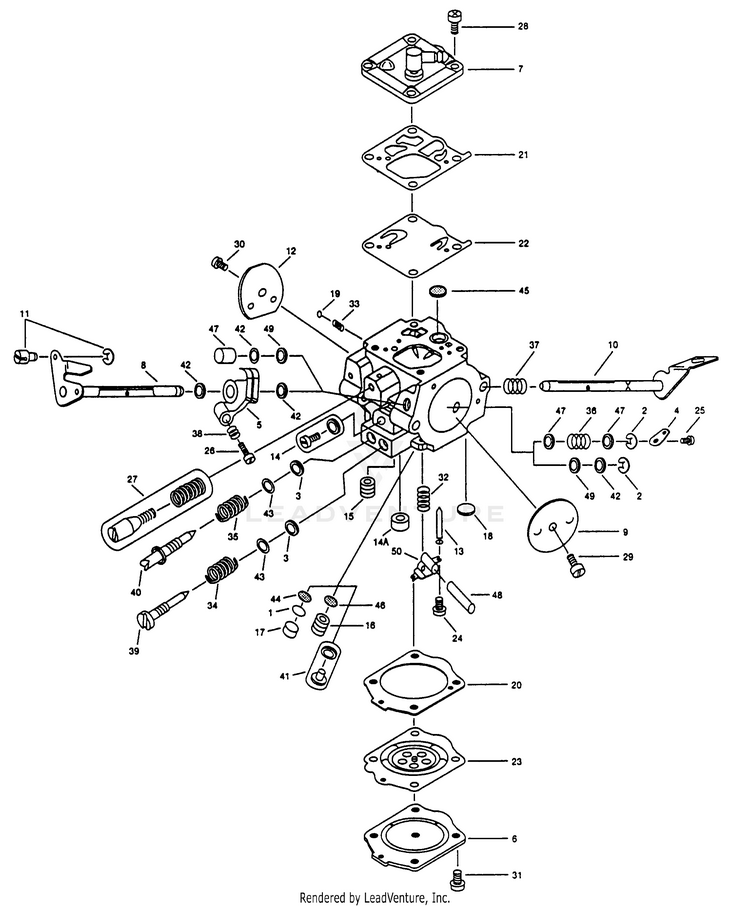

WG-10-1 PARTS LIST

...
...
xx
Venturi (mm) WLB-22.82
...
xx
Kit - Repair Contents in Repair Kit WLB-K12-WG
...
xx
Kit - Gasket/Diaphragm Contents in Gasket/Diaphragm Kit WLB-D12-WG
...
3
O'Ring - Needles - WLB-16-75
...
4
Lever - Throttle WLB-18-242
...
5
Lever - Throttle (inner) WLB-18-469
...
6
Cover - Metering Diaphragm WLB-21-199
...
7
Cover - Fuel Pump WLB-21-3004
...
8
Shaft Assembly - Throttle WLB-30-1136
...
9
Valve - Throttle WLB-34-305
...
10
Shaft Assembly - Choke WLB-40-1121
...
12
Valve - Choke WLB-62-166
...
13
Valve - Inlet Needle Contents in Repair Kit WLB-82-82
...
14A
Seat Assembly - Check Valve WLB-84-607
...
15
Nozzle Assembly - Check Valve WLB-86-804
...
18
Plug - Welch (5/16) Contents in Repair Kit WLB-88-171
...
19
Ball - Choke Friction WLB-89-13
...
20
Gasket - Metering Diaphragm Contents in Gasket/Diaphragm Kit WLB-92-94
...
21
Gasket - Fuel Pump Contents in Gasket/Diaphragm Kit WLB-92-293
...
22
Diaphragm - Fuel Pump Contents in Gasket/Diaphragm Kit WLB-95-120
...
23
Diaphragm Assy - Metering Contents in Gasket/Diaphragm Kit WLB-95-569
...
24
Screw - Metering Lever Pin WLB-96-156
...
25
Screw - Lever Retainer WLB-96-142
...
26
Screw - Lever Tension WLB-96-394
...
27
Screw - Idle Adjust WLB-96-680
...
28
Screw - Fuel Pump Cover - WLB-96-543
...
29
Screw - Throttle Valve WLB-96-207
...
30
Screw - Choke Valve WLB-96-207
...
31
Screw - Metering Cover - WLB-96-603
...
32
Spring - Metering Lever WLB-98-320
...
33
Spring - Choke Friction WLB-98-162
...
34
Spring - Needle (idle) WLB-98-368
...
36
Spring - Throttle Return WLB-98-3144
...
39
Needle - Idle WLB-102-3072
...
42
Washer - Shaft - WLB-136-181
...
43
Washer - Needle - WLB-136-106
...
45
Screen - Fuel Inlet Contents in Repair Kit WLB-140-70
...
47
Bushing - shaft - WLB-148-69
...
48
Pin - Metering Lever Contents in Repair Kit WLB-144-60
...
50
Lever - Metering Contents in Repair Kit WLB-166-55
