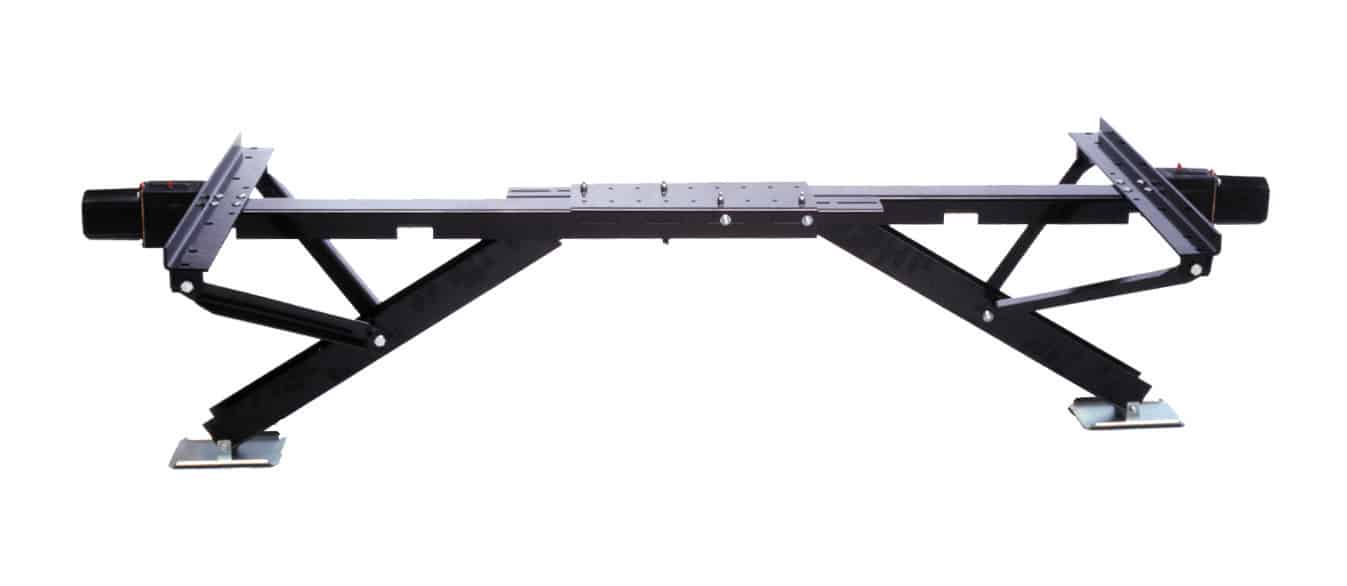

Ultra-Fab 39-941705-7 Ultra Power Twin Ii-30-22

Model: 39-941705-7

Save Part Not Listed?
product name

Ultra-Fab 39-941705-7

...
...
xx
Powert'Vvln 11-22 Leg Assembly ULT-39-841709
...
xx
Powertvin 11-30 Legassembly(Only) ULT-39-841700
...
1
Main Channel Ptil-30 ULT-39-841649
...
1
Main Channel Pt11-22 ULT-39-841660
...
2
Mounting Pla Tept11-22 ULT-39-841659
...
2
Mounting Plate Ptil-30 ULT-39-841647
...
3
Jack Screw Ptil-30 ULT-39-841636
...
3
Jack Screw Pt11-22 ULT-39-841658
...
4
Collar ULT-17-741051
...
5
Bearing ULT-39-143463
...
6
Acme Screw Pin ULT-17-741064
...
7
Jack Screw Nut ULT-39-741606
...
8
Main Leg Pt11-22 ULT-39-841661
...
8
Main Leg Ptil-30 ULT-39-841653
...
9
Flatwasher 13/16 Idx 1.5 Od ULT-17-113402
...
10
Leg Spacer ULT-39-841655
...
11
Plastic Washer ULT-39-114006
...
12
Retaining Plate ULT-39-841652
...
13
Support Arm Ptil-30 ULT-39-841632
...
13
Supportarm Pt11-22 ULT-39-841657
...
14
Bolt-M8-1.25X25Mmcarrlage ULT-39-010121
...
15
Nut-M8X1.25 Nylock ULT-42-001084
...
16
Bolt-M12-1.75X30Mm Hex ULT-39-010011
...
17
Nut-M12X1.75 Nylock ULT-39-001025
...
18
Bolt-M12-1.75X100Mm Hex ULT-39-010146
...
19
Footpad ULT-39-841654
...
20
Bolt-Mio-I.5X100Mm ULT-39-114007
...
21
Nut-Miox1S Nylock ULT-39-020090
...
22
Motor/Gear Sox Assy ULT-39-750009
...
23
Motor Housing ULT-39-741622
...
24
Bolt-M6-1.Ox110Mm Hex ULT-39-113369
...
25
Washer-Ms Flat ULT-17-111025
...
26
Washer-Ms Lock ULT-17-111026
...
27
Housing Gasket ULT-17-141008.003
...
28
Fuse 30A Slow Blow ULT-17-101066
...
29
Fuse Holder ULT-17-101265
...
30
Motorswitch W Wire Leads ULT-17-101014
...
31
Bootseal ULT-17-143097
...
32
Switch Housing ULT-17-741024
...
33
Switch Cover Gasket ULT-17-741026
...
34
Connecting Bracket ULT-39-841642
...
35
Washer-Ms Flat ULT-38-751156
...
36
Bolt-M8-1.25X25Mm Hex ULT-39-010120
...
37
Hand Crank ULT-39-841641

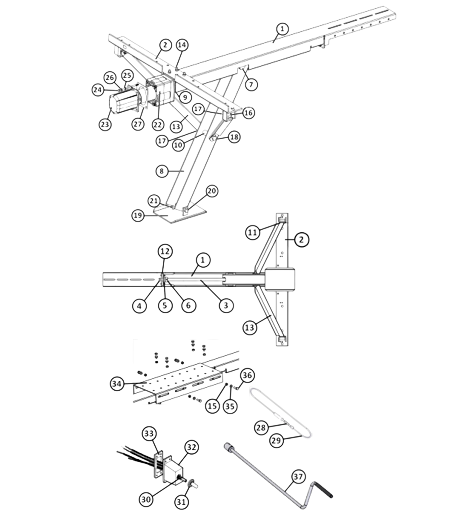

Schematic Image Zoomed
