Ultra-Fab 38-944017 Ultra 3500/3502/3002 Electric Tongue Jack

Model: 38-944017

Save Part Not Listed?
product name

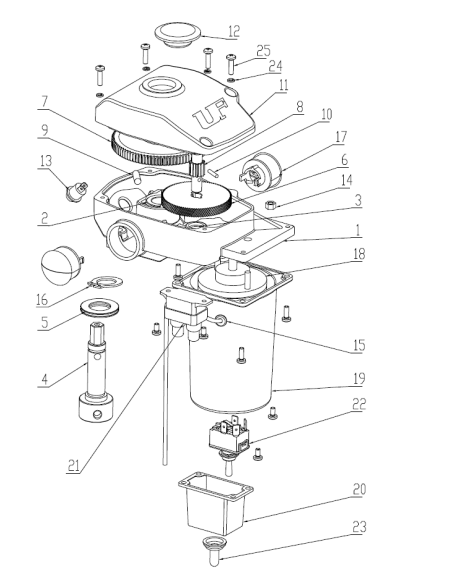

Ultra-Fab 38-944017

...
...
XX
xx . Socket 11Mm Deep Well Manual Override ULT-38-760025
...
1
Gear Housing Base ULT-38-760001
...
2
Bushing 16 ULT-38-760002
...
3
Bushing 9.5 ULT-38-760003
...
4
Collar Hex Head ULT-38-760004
...
5
Thurst Bearing ULT-38-760005
...
6
Spur Gear ULT-38-760006
...
7
Main Gear ULT-38-760007
...
8
Pinion Gear 12T ULT-38-760008
...
9
Pin 6X18 ULT-38-760009
...
10
Pin 3X14 ULT-38-760010
...
11
Gear Housing Cover ULT-38-760011
...
12
Rubber Plug ULT-38-760012
...
13
Light Switch ULT-38-760013
...
14
M5 ULT-38-751152
...
15
Grommet ULT-38-760015
...
16
Snap Ring ULT-38-760016
...
17
Light ULT-38-760017
...
18
Motor ULT-38-760018
...
19
Motor Housing ULT-38-760019
...
20
Switch Housing ULT-38-760020
...
21
Circuit Breaker ULT-38-760021
...
22
Motor Switch ULT-38-760022
...
23
Switch Boot ULT-38-760023
...
24
Lock Washer M4.1 ULT-38-760024
...
25
Screw M4X12 ULT-38-751010

Ultra-Fab 38-944017

...
...
xx
Lower Stem Assembly (Includes 38-760102 And 38-760113) ULT-38-760114
...
1
Tube Outer 2" ULT-38-760102
...
2
Serrated Washer 8 ULT-38-114452
...
3
Washer M8 ULT-38-760103
...
4
Bolt M8X25 ULT-38-760104
...
5
Rubber Band ULT-33-760105
...
6
Footpad Std 2" ULT-38-760107
...
7
Wire Lock Pin ULT-38-141023
...
8(A-E)
Tube Inner 1.75" Assy ULT-38-760113
...
8A
Collar Hex Head ULT-38-760004
...
8B
Retaining Pin 1 ULT-38-760109
...
8C
Thrust Bearing ULT-33-760005
...
8D
Grease Zerk 6-1.0Mm ULT-17-753230
...
8E
Tube Inner 1.75" ULT-33-760115
...
9
Upper Pin ULT-38-751127
...
10
Cotter Pin ULT-38-760111
