Turf Trac 139-658-015 (1989) Lawn Tractor

Model: 139-658-015 (1989)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

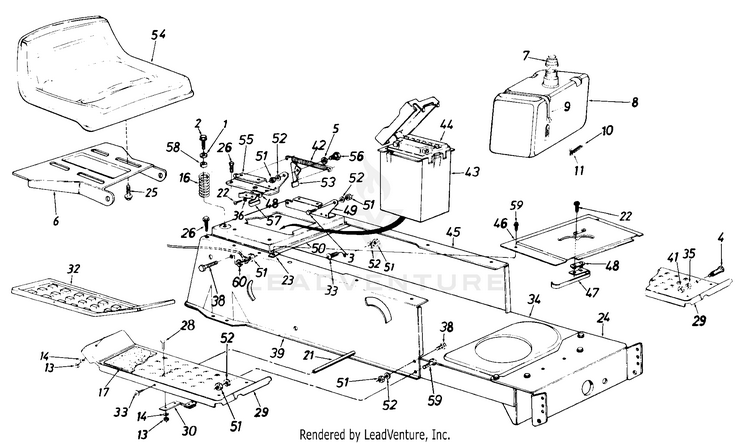

Parts03

...
...
1
Fl-Wash. .344" I.D. x .875" MTD-736-0159
...
2
Hex Wash. Hd. Tap Scr. 5/16-18 x 1.0" Lg. MTD-710-0602
...
3
Shoulder Bolt MTD-938-0155
...
4
Shld. Bolt .50" Dia. x .84" MTD-738-0145
...
5
Spr. Wash. 7/16" I.D. MTD-936-0141
...
6
SEAT PIVOT BRACKET MTD-783-0039A
...
7
GAUGE-GAS MTD-723-0333
...
8
KIT-FUEL TANK W/CA MTD-753-0503
...
9
Cable Tie MTD-726-0230
...
10
Fuel Line MTD-751-0173A
...
11
HOSE CLAMP MTD-726-0207
...
13
HEX NUT 1/4-20 MTD-912-0287
...
14
L-Wash. 1/4" I.D. MTD-936-0329
...
16
COMPRESSION SPRING MTD-732-0548
...
17
FOOT PAD (Optional Part) MTD-723-0360
...
21
ROD-RUNNING BOARD MTD-738-0526
...
22
Hex Wash. Hd. AB-Tap Scr. #8 x .50" Lg. MTD-710-0227
...
23
Speed Nut #10Z MTD-726-0139
...
24
Front Pivot Brkt. MTD-14619
...
25
Hex Tap Scr. 3/8-16 x .75" MTD-710-0623
...
26
Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg. MTD-710-0726
...
28
Carriage Bolt 1/4-20 x .62" MTD-710-0134
...
29
Running Board (R.H. & L.H.) MTD-14604E
...
30
Blade Brake Ass'y. (Refer to Deck Breakdown) MTD-NA
...
32
FOOT PAD (Optional Part) MTD-731-0909
...
xx
FOOT PAD (Optional Part) MTD-735-0689A
...
33
Truss Mach. Scr. 5/16-18 x .75" Lg. MTD-710-0323
...
34
FRAME-LOWER MTD-15930B
...
35
L-Wash. 3/8" I.D. MTD-736-0169
...
36
WASHER-FIBER MTD-736-0426
...
38
Hex Bolt 5/16-18 x 75n Lg. MTD-710-0118
...
39
FRAME-SIDE (RH) MTD-14602G-0637
...
41
Hex Nut 3/8-16 Thd. MTD-712-0798
...
42
Extension Spring MTD-932-0581B
...
43
BATTERY BOX MTD-731-0871B
...
44
BATTERY MTD-753-0607
...
45
L.H. SIDE FRAME MTD-14603G
...
46
Shift Cover (Refer to Style Sheet) MTD-NA
...
47
SAFETY SWITCH KIT MTD-725-0759
...
48
Insulatop Nut Plate MTD-926-0320
...
49
BRACKET-SE MTD-17243
...
50
HITCH PLATE MTD-17225
...
51
HEX NUT 5/16-18 MTD-712-3010
...
52
Lock Wash. 5/16" I.D. MTD-936-0119
...
53
BRACKET-SEAT LIFT MTD-17239C
...
54
LOW BACK SEAT BLACK W/SWITCH MTD-957-0378
...
xx
SEAT MTD-957-0360A
...
55
BRACKET-SE MTD-17244
...
56
Shld. Bolt .437" Dia. x .268" MTD-738-0296
...
57
Outer Seat Spring Switch MTD-925-1303
...
58
RUBBER BUSHING .318IDX.930OD MTD-722-0160
...
59
SCREW 5/16-18 x 1 MTD-710-0971
...
60
External L-Wash. 5/16" I.D. MTD-736-0607
...
...
...
...
...
