Turf Pro 145Q849H009 (1995) Garden Tractor

Model: 145Q849H009 (1995)

Back To Assemblies

Save Part Not Listed?
product name

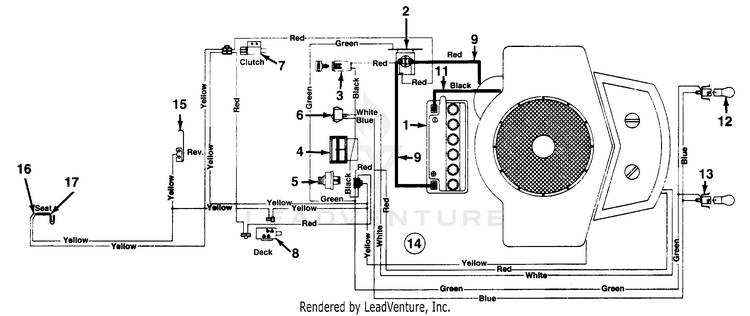

Electrical/Switches

...
...
1
BATTERY 275CCA 275 Cold Crank Amps MTD-725-1635
...
2
Solenoid MTD-925-1426A
...
3
Fuse 7.5 Amp MTD-725-1625
...
4
Ammeter Optional Part MTD-925-0925
...
5
Ignition Switch MTD-925-0267B
...
6
Light Switch Optional Part MTD-925-0634
...
7
Safety Switch MTD-925-1657A
...
8
Safety Switch MTD-925-0465A
...
9
WIRE ASSEMBLY (RED W/BOOT) (#6 X14) MTD-629-0705
...
11
6 GA. BLACK WIRE MTD-725-0996
...
12
Miniature Lamp 12V Socket Type MTD-925-0963
...
13
HEADLIGHT SOCKET (1/4 TURN) Style 0, 5, 6 MTD-925-1649A
...
xx
SHORT LAMP SOCKET Style 4, 8, 9 MTD-925-1650
...
14
WIRE HARNESS Used w/Ammeter & Light Switch MTD-629-0114
...
xx
WIRE HARNESS Used w/o Ammeter & Light Switch MTD-629-0112
...
15
Spring Switch (Reverse) MTD-725-1643
...
16
Outer Seat Spring Switch MTD-925-1303
...
17
Spring Switch (Seat) MTD-725-1439
