Turf Pro 132-520B196 (1992) Lawn Tractor

Model: 132-520B196 (1992)

Back To Assemblies

Save Part Not Listed?
product name

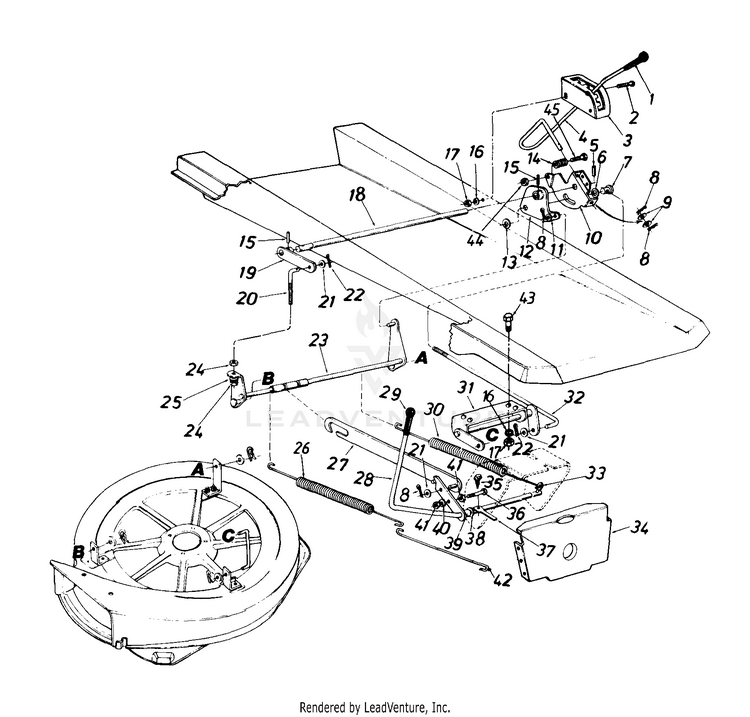

Deck Assembly

...
...
1
Grip MTD-720-0223
...
2
Truss Mach. Scr. 5/16-18 x .75" Lg. MTD-710-0323
...
3
BRACKET-DECK INDEX MTD-16397
...
4
DECK LIFT HANDLE MTD-747-0651
...
5
SPRING PIN3/16 x 1.50 MTD-915-0134
...
6
Fl-Wash..385" I.D. x .87" O.D. MTD-736-0187
...
7
FERRULE MTD-711-0749
...
8
Cotter Pin 1/8" Dia. x 1.0" MTD-714-0115
...
9
Fl-Wash. .531" I.D. x .930" O.D. MTD-736-0160
...
10
RETAINER-DECK HAND New part MTD-16401A
...
11
Fl-Wash. .385" I.D. x .87" O.D. MTD-736-0300
...
12
BRACKET ASSY-LIFT-LH MTD-15578
...
13
Fl-Wash. .635" I.D. x 1.04" O.D. MTD-736-0162
...
14
COMPRESSION SPRING MTD-732-0711
...
15
Spring Pin Spir. 1/4" Dia. x 1.50" Lg. MTD-715-0114
...
16
Lock Wash. 5/16" I.D. MTD-936-0119
...
17
HEX NUT 5/16-18 MTD-712-3010
...
18
SHAFT-HGT ADJ-RR MTD-738-0550
...
19
LIFT BRACKET ASSEMBLY (RH) MTD-15609A
...
20
SCREW-DECK ADJ 3/8-16 THD MTD-710-0866
...
21
Fl-Wash. .385" I.D. x .87" O.D. MTD-736-0300
...
22
Intern. Cotter Pin 1/2" Dia. MTD-714-0145
...
23
Deck Link Ass'y. - Rear MTD-15600A
...
24
Hex Nut 3/8-16 Thd. MTD-712-0798
...
25
L-Wash. 3/8" I.D. MTD-736-0169
...
26
EXTENSION SPRING MTD-732-0540
...
27
DECK DRIVE CONTROL BRACKET MTD-15644A
...
28
LEVER ASSEMBLY-BLADE E New Part MTD-15568A
...
29
Grip MTD-720-0223
...
30
EXTENSION SPRING MTD-732-0540
...
31
LIFT ASSEMBLY- MTD-15573A
...
32
CONNECTING ROD MTD-747-0426
...
33
CLEVIS PIN MTD-711-0753
...
34
PIVOT BAR BRACKET New Part MTD-15613A
...
35
Hex TT-Tap Scr. #12-24 x .5" Lg. New Part MTD-710-3243
...
36
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
37
ACTUATOR-SWITCH MTD-732-0435
...
38
Fl-Wash. .531" I.D. x .930" O.D. MTD-736-0160
...
39
SPACER MTD-750-0760
...
40
Lock Wash. 5/16" I.D. MTD-936-0119
...
41
HEX NUT 5/16-18 MTD-712-3010
...
42
HOOK SPRING MTD-732-0451B
...
43
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
44
Hex Cent. L-Nut 1/4-20 Thd. MTD-712-0291
...
45
Hex Bolt 1/4-20 x 1.25" Lg. MTD-710-0106
