Turf Pro 123-848C009 (765392) (1993) Self-Propelled Walk-Behind Mower

Model: 123-848C009 (765392) (1993)

Save Part Not Listed?
product name

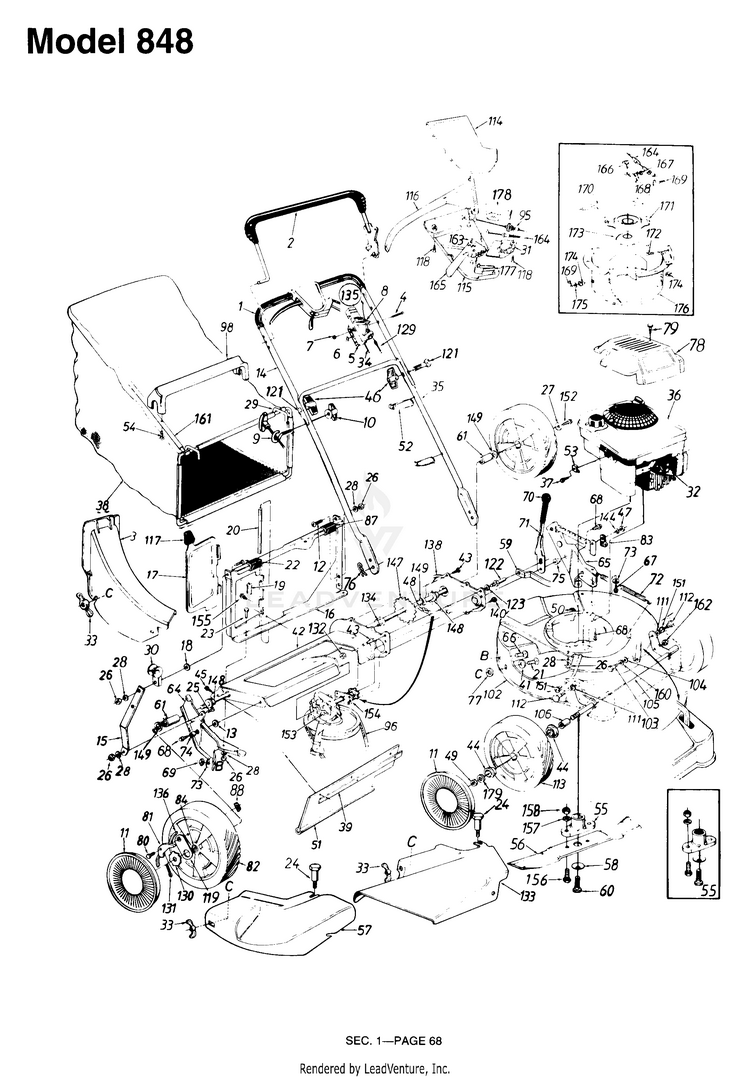

Handle And Wheel Assembly

...
...
1
FOAM GRIP - 9" MTD-720-0294A
...
2
Std. Control Handle MTD-747-0824B-0637
...
3
CHUTE ASSEMBLY MTD-731-1023
...
4
Oval C-Sunk Scr. MTD-710-0605
...
5
Throttle Body MTD-946-0875
...
6
Curved Spring Wash. .66" I.D. MTD-936-0501
...
7
Hex L-Nut 1/4-20 Thd. MTD-712-0324
...
8
Throttle Lever MTD-946-0876
...
9
Rope Guide MTD-710-1205
...
10
Wing Nut MTD-712-0397A
...
11
HUBCAP-SPOKE YELLOW MTD-731-1426B
...
12
Truss Mach. Scr. 1/4-20 x .62" Lg. MTD-710-0946
...
13
Fl-Wash..383" I.D. x 1" O.D. MTD-736-0258
...
14
Upper Handle MTD-749-0439E-0637
...
15
BRACKET-PANEL SUP MTD-16129A-0637
...
16
PANEL ASSEMBLY-CATCHER MTD-16862
...
17
DOOR-TOP DISCHARGE MTD-17095A
...
18
Fl-Wash..285" I.D. x 1.25" O.D. MTD-736-0211
...
19
Torsion Spring MTD-732-0483A
...
20
ROD MTD-747-0514
...
21
Carriage Bolt 1/4-20 x .62" MTD-710-0134
...
22
Truss Mach. Scr. 1/4-20 x.75" Lg. MTD-710-0924
...
23
Hex Bolt 1/4-20 x .50" Lg. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-910-0289
...
24
Shoulder Bolt .312 Dia. x .18 Lg. Special MTD-738-0704
...
25
Hex Bolt 1/4-20 x .62" Lg. MTD-710-0258
...
26
HEX NUT 1/4-20 For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-912-0287
...
27
SPRING WASHER BELL MTD-736-0270
...
28
L-Wash. 1/4" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0329
...
29
Front Grass Catcher Frame MTD-747-0705-0637
...
30
Rope Guide MTD-719-0279
...
31
HOUSING CONTROL KIT MTD-753-0717
...
32
INSULATOR-SPARK PLUG MTD-735-0639
...
33
Wing Nut MTD-712-0397A
...
34
Throttle Wire-58" Lg. MTD-946-0674A
...
35
Lower Handle New Part MTD-749-0907B
...
36
Engine MTD-NA
...
37
Hex Self-Tap Scr, #10-32 x .62" Lg. MTD-710-1237
...
38
GRASS CATCHER BAG MTD-964-0082
...
39
STRIP-RETA MTD-14835
...
41
Fl-Wash..344" I.D. x .62" MTD-736-0204
...
42
AXLE ASSEMBLY-CHAIN MTD-17055B
...
43
Hex 8-Tap Scr. 1/4" x .38" Lg. MTD-710-0352
...
44
BALL BEARING MTD-941-0484
...
45
Hex Screw, 1/4-14 x 0.625" MTD-710-0896
...
46
Hand Knob MTD-920-0276
...
47
HEX LOCK NUT 3/8-2 MTD-912-0296
...
48
#48 CHAIN 1/2 PI MTD-713-0353
...
49
Hex L-Nut 1/2-20 Thd. MTD-712-0346
...
50
PLUG MTD-731-0564
...
51
FLAP-REAR MTD-731-0672A
...
52
Cable Tie MTD-725-0157
...
53
Cable Clamp (B&S) MTD-BS-690798
...
54
SCREW #12 x 14 x 1.250 MTD-710-1025
...
55
KIT-SPINDLE SPACER MTD-753-0488
...
56
21" Mulching Blade New Part MTD-942-0721
...
57
MULCH PLUG MTD-731-1343
...
58
BELL WASHER MTD-936-0453
...
59
ARM-HGT ADJ CONNECT MTD-16863
...
60
Hex Bolt 7/16-20 x 1.5" Lg. (Grade 5) MTD-710-0757
...
61
Spacer .513" I.D. x .703" O.D. x .69" Lg. MTD-748-0190
...
?63
Lock Wash. 5/16" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0119
...
64
BRACKET ASSEMBLY (RH) MTD-16136A
...
65
BRACKET ASSEMBLY (LH) MTD-16137B
...
66
Carriage Bolt 5/16-18 x.62 MTD-710-0260A
...
67
Hex Wash. Hd. B-Tap Scr. 5/16-18 MTD-710-0603
...
68
Hex Wash. Nd. TT-Tap Scr. 3/8-16 MTD-710-0654A
...
69
HEX NUT 5/16-18 For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-712-3010
...
70
Grip MTD-720-0223
...
71
HEIGHT ADJUSTMENT LEVER MTD-732-0606
...
72
EXTENSION SPRING MTD-732-0362
...
73
Bell-Wash. 5/16" I.D. MTD-736-0242
...
74
SPACER MTD-950-0736
...
75
SHOULDER SPACER MTD-750-0624
...
76
Hairpin Clip MTD-714-0104
...
77
Bolt Retainer 1/4 x .50" O.D. MTD-726-0233
...
78
ENGINE SHROUD MTD-731-1402
...
79
Screw #10 x 1.25" Lg. MTD-710-1256
...
80
BOLT, SHOULDER, 1/4-20 x 2.65 LG MTD-738-0137
...
81
PAWL - (LH) MTD-948-0188B
...
82
WHL-YELLOW S WAVE 1/2ID SLEV MTD-734-1791
...
83
CLAMP MTD-726-0175
...
84
Bearing 1/2" I.D. MTD-741-04868
...
87
PANEL BAG CLIP MTD-731-0880
...
88
Weld L-Nut 1/4-20 Thd. MTD-712-0414
...
95
S.P. Cable MTD-946-0710A
...
96
V-Belt MTD-954-0343
...
?97
Hex AB-Tap Scr. 1" Lg. MTD-710-0969
...
98
BAG HANDLE BLACK MTD-731-0801
...
102
21" Deck Ass'y, MTD-16859A
...
103
Shld. Bolt .5" Dia. x .295 MTD-738-0234
...
104
Bell-Wash..515" I.D. x 1.0" O.D. MTD-736-0253
...
105
FRONT AXLE ASSEMBLY MTD-982-7509-0637
...
106
SLEEVE MTD-711-0313
...
111
LOCK WASHER 3/8 X.56 OD MTD-736-0221
...
112
SHOULDER SCREW MTD-938-0705
...
113
WHEEL-YELLOW S WAVE MTD-734-1790
...
114
Self-Propelled Control Cover MTD-737-0904
...
115
HOUSING CONTROL KIT MTD-753-0717
...
116
Drive Control MTD-731-0620A
...
117
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
118
Fl-"C"-Sunk Hd. Tap Scr. #10 x .75" Lg. MTD-710-0841
...
119
Pawl Plate MTD-16855
...
121
Curved Hd. Bolt 5/16-18 x 2" Lg. MTD-710-1174
...
122
SHOULDER PIN 3/8-24X1.43 MTD-711-0805
...
123
L-Wash. 3/8" I.D. MTD-736-0169
...
129
Control Cable 44" Lg. New Part MTD-946-0912
...
130
Wheel Ratchet MTD-948-0318
...
131
Cotter Pin 1/8" Dia. x 1.00" Lg. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-714-0115
...
132
Hex Jam Nut 3/8-24 Thd. MTD-712-0711
...
133
DEFLECTOR-SIDE CHUTE BLACK MTD-731-0884
...
134
Hex Flange Bearing MTD-741-0522
...
135
Throttle Box Comp. (Incl. Ref. 4, 5, 6, 7, 8) MTD-811-0185
...
136
Spring - Nylon MTD-10622B
...
138
COVER-CHAIN MTD-17053A
...
140
Hex Wash. S-Tap Scr. 1/4-20 x .50" Lg. MTD-710-0599
...
144
Fl-Wash..385" I.D. x.87" MTD-736-0300
...
147
REAR SHAFT ASSEMBLY MTD-738-0719A
...
148
Flge Bearing .506 ID x .590 Lg MTD-741-0324A
...
149
Fl-Wash..531" I.D. x .930" MTD-736-0160
...
151
Flanged Nyliner Brg. MTD-741-0491
...
152
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
153
TRANSMISSION MTD-917-0417B
...
154
CUP BEARING HEX MTD-16500A-0637
...
155
Hex B-Tap Scr. #10 x .38" MTD-910-0429
...
156
SCREW 3/8-24 C 1.00 GR5 MTD-710-1055
...
157
L-Wash. 3/8" I.D. MTD-736-0169
...
158
Hex Nut 3/8-24 Thd. MTD-712-0241
...
160
Fl-Wash..51" I.D. x .75" O.D. MTD-736-0108
...
161
Rear Grass Catcher Frame MTD-749-0764A-0637
...
162
JAM LOCK NUT MTD-712-0266A
...
163
Gear Insert MTD-913-0397
...
164
CABLE-SPEED CONTROL MTD-746-0706
...
165
6 SPEED SHIFT LEVER MTD-731-0924
...
166
BRACKET-ADJ CABLE MTD-17070-0637
...
167
SPRING WASHER BELL MTD-736-0270
...
168
Hex Cent. L-Nut 1/4-20 Thd. MTD-712-0291
...
169
Cot-Pin 3/32" Dia. x .75" Lg. MTD-714-0507
...
170
SHIFT ROD (LH) MTD-747-0684
...
171
MOVEABLE PULLEY ASSEMBLY MTD-741-0500A
...
172
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
173
MOVABLE PULLEY MTD-756-0503
...
174
FLANGED BUSHING MTD-931-1137
...
175
Fl-Wash..328" I.D. x.68" O.D. MTD-736-0278
...
176
BRACKET AS MTD-17073
...
177
Shift Lever Spring MTD-732-0627A
...
178
6-Speed Rack Cable Brkt. MTD-16864
...
179
UNKNOWN MTD-NA

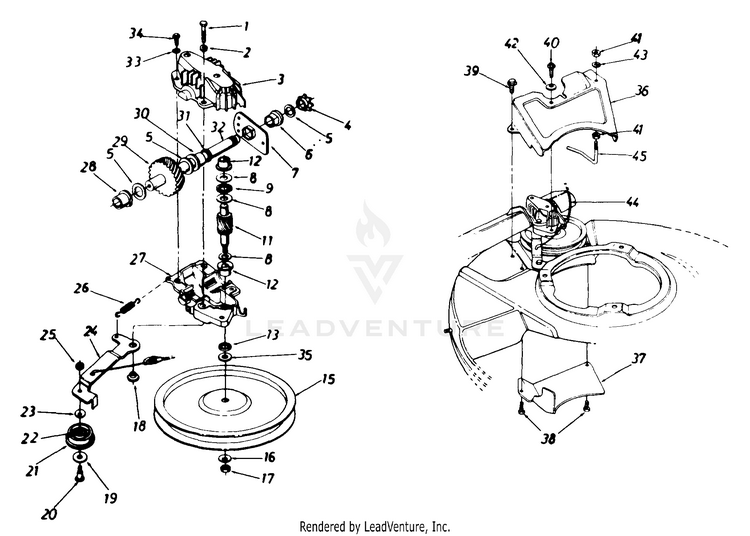

Transmission Complete

...
...
1
Hex Bolt 1/4-20 x 1.25" Lg. w/Patch For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-710-1062
...
2
L-Wash. 1/4" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-726-0329
...
3
HOUSING HALF UPPER MTD-717-0418A
...
4
SPROCKET-7T MTD-713-0400
...
5
FLAT WASHER MTD-936-0336
...
6
Hex Flange Brg..631" I.D. MTD-741-0413
...
7
Flex Bearing Cup MTD-165004
...
8
Thrust Wash..382" I.D. x .70" O.D. MTD-736-0314
...
9
Thrust Bearing .375" I.D. x .812" O.D. MTD-741-0479
...
11
PINION SHAFT 11T MTD-917-1216
...
12
Flange Bearing MTD-748-0208A
...
13
OIL SEAL -.375 ID MTD-721-0212
...
15
PULLEY Not Part of Transmission Complete MTD-756-0330A
...
16
SPRING WASHER BELL Not Part of Transmission Complete MTD-736-0270
...
17
Jam Nut, 1/4-28, LH Not Part of Transmission Complete MTD-712-04326
...
18
Shld. Spacer .375" Dia. x .170 Not Part of Transmission Complete MTD-738-0440
...
19
Fl-Wash..390" I.D. x 1.0" Not Part of Transmission Complete MTD-736-0344
...
20
Shld. Bolt .375" Dia. x .40" Not Part of Transmission Complete MTD-738-0826
...
21
Fl-ldler Plastic 1.50" Dia. Not Part of Transmission Complete MTD-956-0558
...
22
Needle Brg..375" x .31" Not Part of Transmission Complete MTD-741-0556
...
23
SPRING WASHER BELL Not Part of Transmission Complete MTD-736-0270
...
24
IDLER BRACKET ASSEMBLY Not Part of Transmission Complete MTD-17052A
...
25
Hex Patch L-Nut 1/4-28 Thd. Not Part of Transmission Complete MTD-712-0138
...
26
Extension Spring 1.12" Lg. Not Part of Transmission Complete MTD-732-0357A
...
27
HOUSING HALF-LOWER MTD-717-0419A
...
28
Flange Bearing .566 ID MTD-941-0415
...
29
SHAFT & GEAR AS MTD-717-0422A
...
30
Flange Bearing .629 Dia. MTD-741-0414
...
31
Oil Seal .625 Dia. MTD-721-0213
...
32
SHAFT & GEAR AS MTD-738-0607A
...
33
L-Wash. #10 I.D. MTD-736-0722
...
34
Hex Wash. Hd. Self-Tap Scr. MTD-710-0651
...
35
FLAT WASHER .260x.880x.040:HD Not Part of Transmission Complete MTD-736-0410
...
36
BELT GUARD MTD-17718
...
37
BELT COVER Not Part of Transmission Complete MTD-17065A-0637
...
38
Hex B-Tap Scr. 1/4 x .38" Lg. Not Part of Transmission Complete MTD-710-0352
...
39
Hex AB-Tap Scr. 1/4 x .50" Lg. Not Part of Transmission Complete MTD-710-0599
...
40
Hex B-Tap Scr. 1/4 x .62" Lg. MTD-710-0896
...
41
HEX NUT 1/4-20 Not Part of Transmission Complete; For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-912-0287
...
42
SPRING WASHER BELL Not Part of Transmission Complete MTD-736-0270
...
43
L-Wash. 1/4" I.D. Not Part of Transmission Complete; For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0329
...
44
S.P. Cable Not Part of Transmission Complete MTD-946-0710A
...
45
BELT GUARD Not Part of Transmission Complete MTD-747-0549
...
xx
TRANSMISSION MTD-917-0417B
