Turf Pro 11A-050A709 (1997) Push Walk-Behind Mower

Model: 11A-050A709 (1997)

Save Part Not Listed?
product name

Engine Shrouds

...
...
751B281439
SHROUD MTD-751B281439
...
751B281440
SHROUD MTD-751B281440
...
751B281443
SHROUD MTD-751B281443
...
710-1256
Screw MTD-710-1256
...
731-1395A
ENGINE SHROUD RED MTD-731-1395A
...
731-1396A
ENGINE SHROUD BLACK MTD-731-1396A
...
731-1397A
ENGINE SHROUD BLACK MTD-731-1396A
...
710-1256
Screw MTD-710-1256
...
731-1587A
SHRD-ENG-QUATRO-52 MTD-731-1587A
...
731-1603A
ENGINE SHROUD - YELLOW MTD-731-1603A
...
731-1610A
ENGINE SHROUD PEWT MTD-731-1610A
...
710-1184
PAN SCREW 10-32 x 2.00 MTD-710-1184
...
731-1561
ENGINE SHROUD BLK TEC MTD-731-1561
...
7510042823
SHOULDER SCREW MTD-7510042823
...
710-1256
Screw MTD-710-1256
...
731-1402
ENGINE SHROUD MTD-731-1402
...
710-1258
SCREW THUMB ADJ 5/16-18 x .63 MTD-710-1258
...
7510014208
Engine Shroud - Black MTD-7510014208
...
7510042823
SHOULDER SCREW MTD-7510042823
...
731-1585B
SHRD-ENG-VECTOR-BL MTD-731-1585B
...
710-1274
SCREW-PAN #10-32X1 MTD-910-1274
...
731-1586B
SHRD-ENG-VECTOR-S2 MTD-731-1586B
...
731-1612
ENGINE SHROUD - RED MTD-731-1612
...
7510042823
SHOULDER SCREW MTD-7510042823

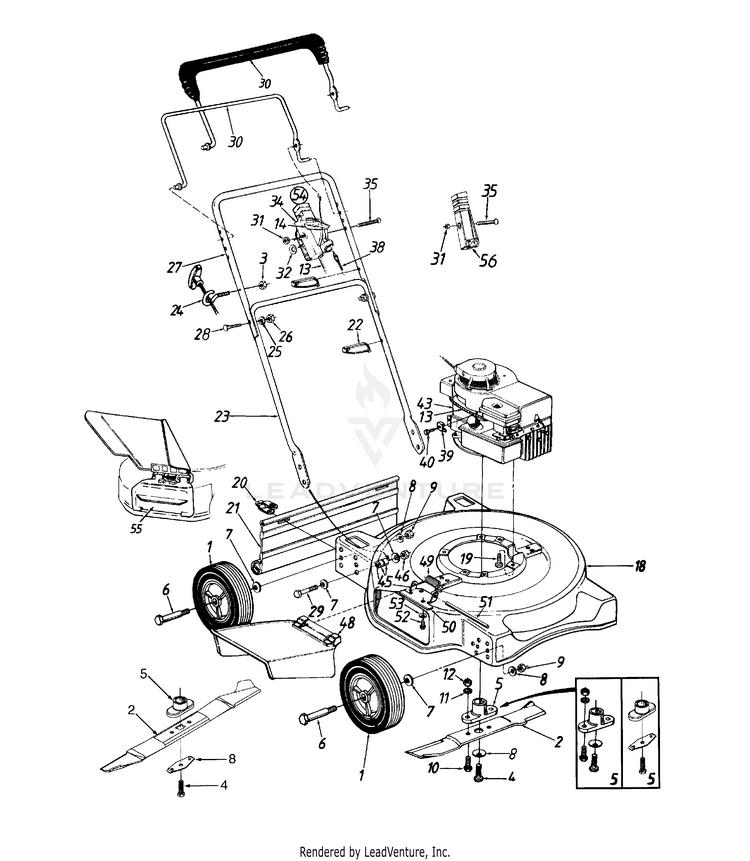

General Assembly

...
...
1
Wheel Ass'y. For model (050 Series) MTD-734-1779A
...
xx
Wheel, 8" For model (060 Series) MTD-734-04585
...
2
20" BLADE (POWDER BLACK) Blade secured with 1 bolt MTD-742-0640-0637
...
xx
20" BLADE Blade secured with 2 bolts MTD-742-0620
...
xx
Standard Blade 22-inch Blade secured with 1 bolt MTD-942-0642A
...
xx
22" BLADE Blade secured with 2 bolts MTD-742-0622
...
xx
Blade Blade secured with 1 bolt MTD-742-0742A-0637
...
xx
22" Mulching Blade Blade secured with 2 bolts MTD-942-0722
...
3
Hex L-Nut 1/4-20 Thd. MTD-712-0324
...
4
Hex Bolt 3/8-24 x 1.5" Lg. MTD-710-1044
...
5
Blade Adapter Kit (Incl. Ref. 13-15) Blade secured with 1 bolt MTD-753-06315
...
xx
Blade Adapter Kit Blade secured with 2 bolts MTD-753-0484
...
6
SCREW:SHLDR:0.498X1.630:3/8-16 MTD-738-0533
...
7
Bell-Wash. .380" I.D. x .88" MTD-736-0105
...
8
Bell-Wash. .39" I.D. x 1.13" MTD-736-0331
...
xx
BLADE BELL SUPPORT MTD-736-0524B-1
...
9
Hex Nut 3/8-16 Thd. MTD-712-0798
...
10
SCREW 3/8-24 C 1.00 GR5 Blade secured with 2 bolts MTD-710-1055
...
11
L-Wash. 3/8" I.D. Blade secured with 2 bolts MTD-736-0169
...
12
Hex Nut 3/8-24 Thd. Blade secured with 2 bolts MTD-712-0241
...
13
Throttle Wire 55" Lg. For models (050A, 052E, 060A, 062A); Optional part MTD-946-0671A
...
xx
THROTTLE CABLE - 39" For models (061A, 061B); Optional part MTD-746-0844
...
14
Throttle Lever Optional part MTD-946-0876
...
18
20" Deck Ass'y. MTD-17038
...
xx
DECK ASSEMBLY-22IN MTD-97046
...
xx
22" Special Deck Ass'y. MTD-17040A
...
19
Hex Wash. Hd. Scr. 3/8-16 x 1" Lg. MTD-710-0654A
...
20
HINGE CLIP MTD-17098P
...
21
Rear Flap For model (050 Series) MTD-731-0872B
...
xx
FLAP ASSEMBLY For model (060 Series) MTD-731-1029
...
22
Cable Tie MTD-725-0157
...
23
Lower Handle MTD-749-0928A-0637
...
24
Rope Guide MTD-710-1205
...
25
Lock Wash. 5/16" I.D. MTD-936-0119
...
26
HEX NUT 5/16-18 MTD-712-3010
...
27
UPPER HANDLE MTD-749-0538C
...
28
Curved Carr. Bolt 5/16-18 x 1" Lg. MTD-710-1250
...
29
Hex Cap Screw 3/8-24 x 1.5 MTD-710-0459A
...
30
Std. Control Handle MTD-747-0824B-0637
...
xx
Std. Control Handle (Deluxe) MTD-747-0824B-0637
...
31
Hex L-Nut 1/4-20 Thd. MTD-712-0324
...
32
Curved Spring Wash. .66" I.D. Optional part MTD-936-0501
...
34
Throttle Body Optional part MTD-946-0875
...
35
Oval C-Sunk Scr. (Use w/Ref. #34) MTD-710-0605
...
xx
SCREW 1/4-20 x 1.310 (Use w/Ref. #56) MTD-710-1270
...
38
Control Cable For models (050A, 052E) MTD-946-0553
...
xx
Control Cable 39" For models (060A, 062A) MTD-946-0550
...
xx
Control Cable - 49" For models (051A, 061A, 061B) MTD-946-0552
...
39
Cable Clamp (B&S) MTD-BS-690798
...
xx
CLIP-CONDUIT MTD-TC-27793
...
40
Hex Wash. Hd. Scr. #10-32 x .62 Lg MTD-710-1237
...
xx
SCREW #10-32 x .38 MTD-710-0871
...
43
Engine MTD-NA
...
45
SPACER MTD-750-0910
...
46
Hex L-Nut 3/8-24 Thd. MTD-912-0355
...
48
CHUTE DEFLECTOR MTD-931-1034B
...
49
Torsion Spring MTD-932-0593
...
50
PLATE-ADAPTER MTD-17032A
...
51
Hinge Pin MTD-747-0710A
...
52
Hex Self-Tap Scr. 1/4-20 x .5" MTD-710-0599
...
53
SPRING WASHER BELL MTD-736-0270
...
54
Throttle Box Comp. (Incl. Ref. 14,31,32,34,35; Optional part MTD-811-0185
...
55
MULCH PLUG For model (060 Series); Optional part MTD-731-1386D
...
56
Control Cable Box Optional part MTD-746-0883
...
xx
KIT MULCH Optional MTD-190-102-000
...
xx
Mulching Kit (20") Optional MTD-190-114-000
...
xx
22" MULCHING KIT Optional MTD-190-100-000
...
xx
Mulching Kit (22") Optional MTD-190-115-000
