Turf Power Mdl 210-405-145 Tiller

Model: Turf Power Mdl 210-405-145

Save Part Not Listed?
product name

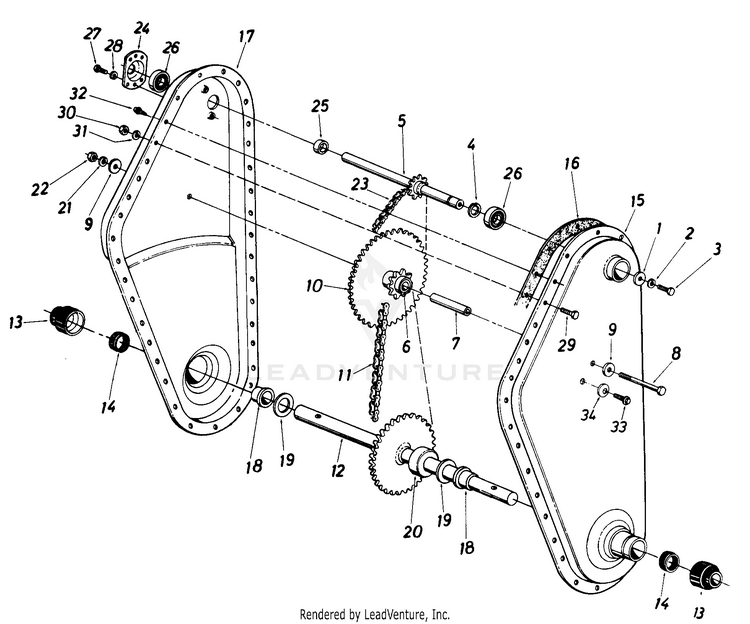

Chain Case

...
...
1
Fl-Wash. 1/4" I.D. x .93" O.D. x .1 20 MTD-736-0176
...
2
L-Wash. 1/4" I.D. MTD-936-0329
...
3
BOLT 1/4-28 X .625 GR8 MTD-710-0513A
...
4
Snap Ring MTD-916-0131
...
5
INPUT SHAFT MTD-04956
...
6
BEARING MTD-741-0304
...
7
HUB-SPROCKET MTD-750-0275
...
8
SCREW 3/8-24 x 2.75 GR.5 MTD-710-0629
...
9
Fl-Wash. 3/8" I.D. x 1.25" O.D. x .10 MTD-736-0258
...
10
SPROCKET ASSEMBLY (8T & 40T) MTD-713-0331
...
11
#50 Chain 5/8" Pitch x 46 0 Links-Endless MTD-913-0328
...
12
TINE SHAFT ASSEMBLY MTD-14986
...
13
Dust Cap MTD-931-0487
...
14
SEAL MTD-721-0175
...
15
ASS'Y. TILLER HOUSING (RH) MTD-14984
...
16
GASKET MTD-721P0170
...
17
ASS'Y. TILLER HOUSI NG L.H. MTD-14985
...
18
Bearing MTD-931-0374
...
19
Fl-Thrust Wash. 1.0" I.D. x .03Thk. MTD-736-0163
...
20
Step Spacer MTD-950-0570
...
21
L-Wash. 3/8" I.D. MTD-736-0169
...
22
Hex Nut 3/8-24 Thd. MTD-712-0711
...
23
#35 CHAIN 3/8 PITCH MTD-913-0327
...
24
BEARING HOUSING MTD-05034A
...
25
SPACER MTD-750-0471
...
26
Bearing .62" I.D. x 1.38" O.D. x .437" Thk. MTD-941-0155
...
27
Hex Wash. SF-Tap Scr. 1/4-20 x .50" Lg. MTD-710-0599
...
28
L-Wash. 1/4" I.D. MTD-936-0329
...
29
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
30
HEX NUT 5/16-18 MTD-712-3010
...
31
Lock Wash. 5/16" I.D. MTD-936-0119
...
32
Hex Wash. SF-Tap Scr. 1/4-20 x.50" Lg. MTD-710-0599
...
33
Hex Wash. Hd. Tap Scr. 1/4-20 x .38n Lg. MTD-710-0653
...
34
SPRING WASHER BELL MTD-736-0270
...
xx
Grease, Benalene 8 oz tube (12 OZ.) MTD-737-0300A

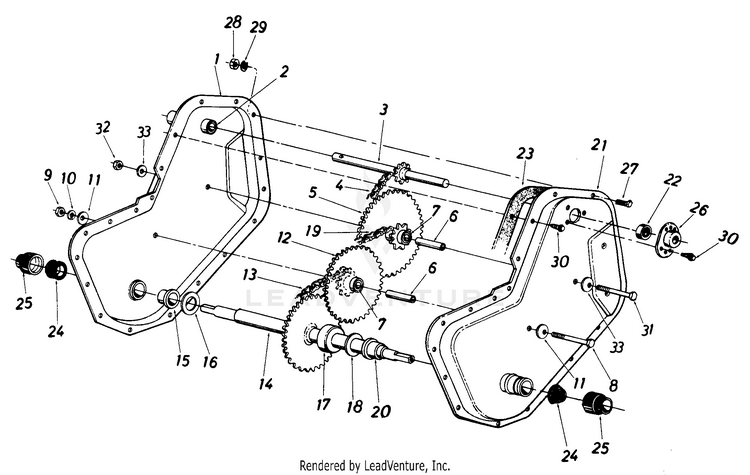

Chain Case, (wheels)

...
...
1
HOUSING-CH MTD-14962
...
2
BEARING MTD-748-0154
...
3
SHAFT ASSEMBLY MTD-14960
...
4
CHAIN 3/8 MTD-713-0325
...
5
Sprocket and Hub Ass'y. MTD-713-0316
...
6
SLEEVE .623 OD x .380 ID x 1.5 LG MTD-750-0351
...
7
BEARING MTD-741-0228
...
8
Hex Bolt 3/8-24 x 2.50" Lg. MTD-710-0369
...
9
Hex Ins. L-Nut 3/8-24 Thd. MTD-712-0116
...
10
L-Wash. 3/8" I.D. MTD-736-0169
...
11
Bell-Wash. .400" I.D. x 1.13" O.D. MTD-936-0219
...
12
SPROCKET & HUB ASSEMBLY (9T & 22T) MTD-713-0330
...
13
#420 CHAIN 1/2 P MTD-713-0326
...
14
SHAFT ASSEMBLY-WHEEL MTD-784-0126A
...
15
Flange Bearing MTD-741-0227
...
16
FLAT WASHER .88 x 1.50 x .030 MTD-736-0265
...
17
SPACER MTD-750-0354A
...
18
FLAT WASHER .88 x 1.50 x .030 MTD-736-0265
...
19
#420 CHAIN 1/2 PIT MTD-713-0267
...
20
Flange Bearing MTD-741-0227
...
21
WHEEL CHAIN CASE ASSY - LH MTD-15797
...
22
Bearing .62" I.D. x 1.38" O.D. x .437" Thk. MTD-941-0155
...
23
GASKET MTD-921-0156A
...
24
SEAL MTD-721-0157
...
25
DUST CAP MTD-731-0486
...
26
BEARING HOUSING MTD-05034A
...
27
HEX SCREW 1/4-28 x .62 MTD-910-0195
...
28
Hex Nut 1/4-28 Thd. MTD-712-0138
...
29
L-Wash. 1/4" I.D. MTD-936-0329
...
30
Hex Wash. S-Tap Scr. 1/4-20x.50" Lg. MTD-710-0599
...
31
Hex Bolt 5/16-18 x 2.5" Lg. MTD-710-0378
...
32
Hex Cent. L.-Nut 5/16-18 Thd. MTD-912-0158
...
33
Fl-Wash. 5/16" I.D. MTD-736-0159
...
xx
Grease, Benalene 8 oz tube (10 oz.) MTD-737-0300A
...
xx
CHAIN CASE MTD-16976

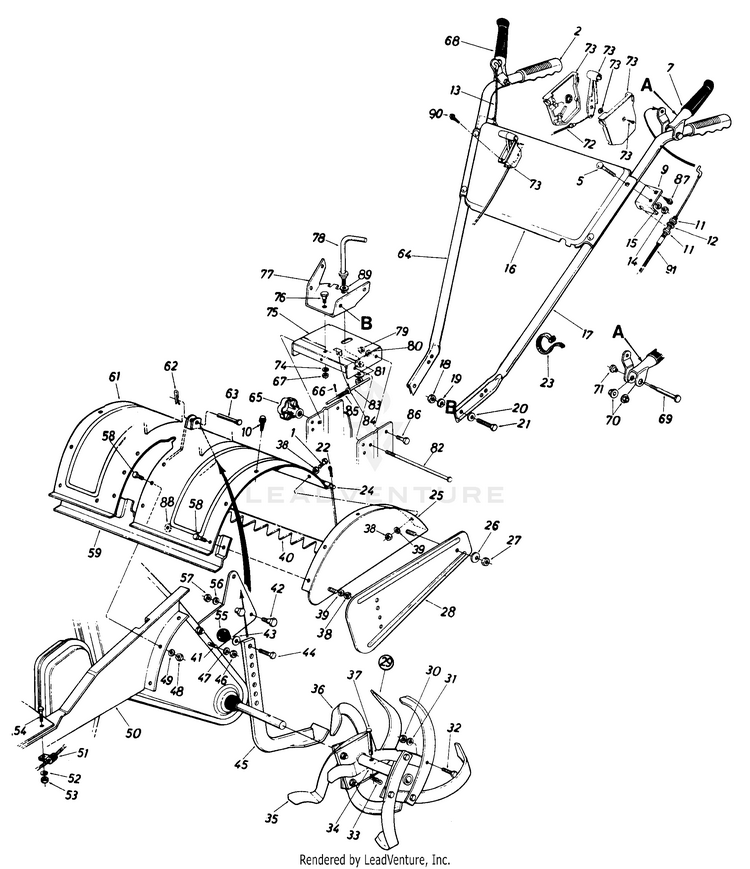

Parts01

...
...
1
Hex Bolt 5/16-18 x 11/4" Lg. MTD-710-0528
...
2
Grip MTD-720-04083
...
5
CARRIAGE BOLT 5/16-18 x 1.75 MTD-710-0458
...
7
GRIP ASSEMBLY-CLUTCH (LH) (Tines) MTD-784-0031
...
9
BRACKET-CL MTD-15093C
...
10
Hex Wash. S-Tap Scr. 5/16-18 x .62" Lg. MTD-710-0607
...
11
HEX JAM NUT 5/16-24 MTD-712-0256
...
12
Lock Wash. 5/16" I.D. MTD-936-0119
...
13
Tine Clutch Control Cable MTD-946-0484
...
14
HEX NUT 5/16-18 MTD-712-3010
...
15
Lock Wash. 5/16" I.D. MTD-936-0119
...
16
HANDLE PANEL MTD-784-0036A
...
17
Handle L.H. MTD-749-0637
...
18
Hex Nut 3/8-16 Thd. MTD-712-0798
...
19
L-Wash. 3/8" I.D. MTD-736-0169
...
20
Bell-Wash. 3/8" I.D. MTD-736-0105
...
21
Hex Bolt 3/8-16 x 1" Lg. MTD-710-0514
...
22
Cotter Pin 3/32" Dia. x 3/4" MTD-714-0507
...
23
Cable Tie MTD-725-0157
...
24
Tiller Flap Rod MTD-747-0432
...
25
End Cover Ass'y. L.H. MTD-14989
...
xx
COVER ASSY-END-RH (Not Shown) MTD-14990
...
26
Bell-Wash. 5/16" I.D. MTD-736-0242
...
27
HEX NUT 5/16-18 MTD-712-3010
...
28
483 SIDE SHIELD MTD-15390
...
29
L.H. TINE ASS'Y. COMP. MTD-15397
...
xx
R.H. TINE ASS'Y. COMP. (Not Shown) MTD-15398
...
30
Hex Nut 3/8-24 Thd. MTD-712-0241
...
31
L-Wash. 3/8" I.D. MTD-736-0169
...
32
Hex Bolt 3/8-24 x 1.25" Lg. MTD-710-0191
...
33
Inter. Cotter Pin MTD-714-0149B
...
34
ADAPTER AS MTD-14978
...
35
Tine 12" R.H. MTD-1916946001
...
36
TINE 12 L.H. MTD-742-0105
...
37
Clevis Pin 3/8" Dia. MTD-711-0415
...
38
HEX NUT 5/16-18 MTD-712-3010
...
39
Lock Wash. 5/16" I.D. MTD-936-0119
...
40
Rear Tine Shield MTD-786-0113
...
41
BOLT-HEX 5/16-18X1 MTD-710-0736
...
42
Shld. Bolt 1/2" Dia. x .426" MTD-738-0507B
...
43
Fl-Wash. MTD-936-0117
...
44
Hex Bolt 3/8-16 x 3/4" Lg. MTD-710-0216
...
45
Depth Bar MTD-786-0120-0637
...
46
HEX NUT 5/16-18 MTD-712-3010
...
47
Lock Wash. 5/16" I.D. MTD-936-0119
...
48
HEX NUT 5/16-18 MTD-712-3010
...
49
Lock Wash. 5/16" I.D. MTD-936-0119
...
50
483FRAME RAIL-L.H. MTD-14975
...
51
CLAMP MTD-726-0175
...
52
Lock Wash. 5/16" I.D. MTD-936-0119
...
53
HEX NUT 5/16-18 MTD-712-3010
...
54
Hex Bolt 5/16-18 x 314" Lg. MTD-710-0118
...
55
Knob MTD-920-0232
...
56
L-Wash. 3/8" I.D. MTD-736-0169
...
57
Hex Nut 3/8-16 Thd. MTD-712-0798
...
58
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
59
BRACKET REINFORCEMENT MTD-15393
...
61
TINE SHIELDCOLOR MTD-784-0026
...
62
Inter. Cotter Pin MTD-714-0149B
...
63
Clevis Pin 3/8" Dia. MTD-711-0415
...
64
HANDLE (RH) MTD-749-0762
...
65
Hand Knob MTD-720-0195
...
66
COTTER PIN-1/16 DIA x .75 MTD-714-0127
...
67
Hex Cent. L-Nut 3/8-16 Thd. MTD-712-0375
...
68
GRIP-CLUTCH (RH) (Wheels) MTD-784-0270
...
69
Shoulder Bolt .374 Dia. x 1.53" Lg. MTD-938-0560
...
70
BEARING-FL MTD-741-0402
...
71
SHOULDER NUT MTD-938-0561
...
72
Throttle Control Wire MTD-946-0502
...
73
Throttle Control Box Ass'y. MTD-831-0823A
...
74
Bell-Wash. .400" I.D. x 1.13" O.D. MTD-936-0219
...
75
BRACKET MTD-784-0022
...
76
Shoulder Bolt MTD-738-0281
...
77
HANDLE MOUNTING BRKT MTD-784-0019
...
78
Adj. Handle Ass'y. MTD-784-0025
...
79
Hex Cent. L-Nut 3/8-16 Thd. MTD-712-0375
...
80
Bell-Wash. .40" I.D. x .88" O.D. MTD-736-0105
...
81
Bell-Wash. 1/2" I.D. x 1.00" O.D. MTD-736-0253
...
82
LOCKING PIN MTD-711-0765
...
83
SLIDING ASSEMBLY-LOWER MTD-784-0023
...
84
Fl-Wash. .291" I.D. x .62" O.D. MTD-736-0463
...
85
Compression Spring .36" O.D. x 1.00" Lg. MTD-732-0145
...
86
SHOULDER SCREW .500 DIA x .170 MTD-738-0147
...
87
Hex Wash. S-Tap Scr. 1/4-20 x .50" Lg. MTD-710-0599
...
88
Bell-Wash. 5/16" I.D. MTD-736-0242
...
89
Fl-Wash. 5/8" I.D. MTD-736-0285
...
90
Self-Tap Scr. #10 x 1/2" Lg. MTD-710-0779A
...
91
Clutch Control Cable MTD-946-0535

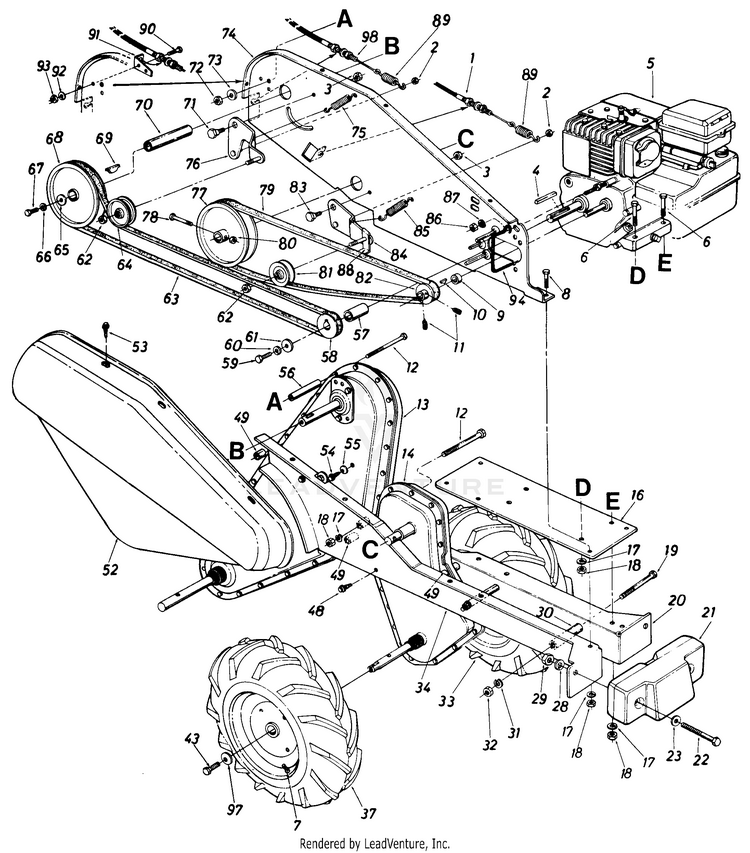

Parts02

...
...
1
Tine Clutch Control Cable (Wheels) MTD-946-0484
...
2
Hex L-Nut 1/4-20 Thd MTD-912-0107
...
3
JAM LOCK NUT MTD-712-0266A
...
4
Sq. Key 3/16" Dia. x .75 MTD-714-0122
...
5
Engine MTD-NA
...
6
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
7
TUBELESS VALVE MTD-934-0255
...
8
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
9
SPACER MTD-711-0494
...
10
KEY-HI-PRO #5-1/8X5/8 DIA MTD-714-0131
...
11
SCREW-SET 1/4-28 x .25 MTD-710-0938
...
12
Hex Bolt 5/16-18 x 3.0" Lg. MTD-710-0189
...
13
CHAIN CASE (TINES) MTD-14981
...
14
Chain Case Ass'y. Comp. Wheels MTD-14963
...
16
483ENGINE MOUNTING PLATE MTD-14973
...
17
Lock Wash. 5/16" I.D. MTD-936-0119
...
18
HEX NUT 5/16-18 MTD-712-3010
...
19
HEX SCREW 3/8-24 x 3.0 LG MTD-710-0830
...
20
483FRAME RAIL-L.H. MTD-14975
...
21
COUNTERWEIGHT MTD-723-0340
...
22
SCREW 1/2-13 X4.0 GR5 MTD-710-0786
...
23
Fl-Wash. 1/2" I.D. x 1.0" O.D. MTD-736-0326
...
28
L-Wash. 1/2" I.D. MTD-736-0921
...
29
HEX NUT MTD-712-0206
...
30
Spacer 3/8" I.D. x 5/8" O.D. x 2.18" Lg. MTD-750-0579
...
31
L-Wash. 3/8" I.D. MTD-736-0169
...
32
Hex Nut 3/8-24 Thd. MTD-712-0241
...
33
WHEEL ASSEMBLY W/TIRE (LH) MTD-734-1377
...
xx
Rim Ass'y. MTD-734-1376
...
xx
TIRE-13X5.0-6 CARLISLE MTD-734-1154-0901
...
34
FRAME RAI I-R.H. MTD-14974
...
37
Comp. Wheel Ass'y. R.H. MTD-734-1378
...
xx
Rim Ass'y. MTD-734-1376
...
xx
TIRE-13X5.0-6 CARLISLE MTD-734-1154-0901
...
43
Hex Bolt 5/16-24 x .62" Lg. MTD-710-0237
...
48
SCREW 5/16-24 x .500 MTD-710-0600
...
49
Spacer 5/16" I.D. x 16 Ga. x.96" Lg. MTD-750-0470
...
52
BELT COVER MTD-14980A
...
53
Hex Wash. S-Tap Scr. 1/4-20 x.50" Lg. MTD-710-0599
...
54
Hex Wash. S-Tap Scr. 1/4-20 x 3/8" Lg. MTD-710-0653
...
55
SPRING WASHER BELL MTD-736-0270
...
56
Spacer 3/8" I.D. x 1/2" O.D. x 2.0" Lg. MTD-750-0219
...
57
SPACER MTD-750-0442
...
58
PULLEY MTD-756-0396
...
59
Hex Bolt 5/16-24 x 1" Lg. MTD-710-0888
...
60
Lock Wash. 5/16" I.D. MTD-936-0119
...
61
Fl-Wash. 5/16" I.D. x 1.25" O.D. MTD-736-0343
...
62
Hex L-Nut 3/8-24 Thd. MTD-712-0116
...
63
V-Belt 1/2" X 54.0" Lg. MTD-954-0195A
...
64
Fl-ldler Pulley 3.75" O.D. x 3/8" 1.D. MTD-756-0405
...
65
Fl-Wash. .25" I.D. x .93" O.D. x .120 MTD-736-0176
...
66
L-Wash. 1/4" I.D. MTD-936-0329
...
67
Hex Bolt 1/4-28 x .75" Lg. MTD-710-0412
...
68
PULLEY MTD-756-0389A
...
69
#61 Hi-Pro Key 3/16 x 5/8 0 Dia. MTD-914-0388
...
70
SPACER MTD-750-0472
...
71
SHOULDER SCREW MTD-738-0183
...
72
HEX NUT 5/16-18 MTD-712-3010
...
73
Lock Wash. 5/16" I.D. MTD-936-0119
...
74
PLATE ASSY-SIDE MTD-14991
...
75
EXTENSION SPRING MTD-732-0445
...
76
Idler Bracket Ass'y. Tines MTD-14971
...
77
Pulley 6" Dia. x 5/8" I.D. MTD-756-0387A
...
78
SCREW 1/4-28 x 1.50 GR5 MTD-710-0698
...
79
V-Belt 1/2" X 43.0" Lg. MTD-954-0109
...
80
HEX NUT MTD-712-0117
...
81
Idler Pulley MTD-756-1035A
...
82
PULLEY MTD-756-0386A
...
83
SHOULDER SCREW .500 DIA x .170 MTD-738-0147
...
84
BRACKET AS MTD-14969
...
85
EXTENSION SPRING MTD-732-0445
...
86
HEX NUT 1/4-20 MTD-912-0287
...
87
SPRING WASHER BELL MTD-736-0270
...
88
BRACKET-BE MTD-15399
...
89
EXTENSION SPRING MTD-732-0387
...
90
Hex Bolt 5/16-18 x .75" MTD-710-0118
...
91
BRACKET-CL MTD-15093C
...
92
Lock Wash. 5/16" I.D. MTD-936-0119
...
93
HEX NUT 5/16-18 MTD-712-3010
...
94
Belt Keeper MTD-747-0507
...
97
Bell-Wash. 5/16" I.D. MTD-736-0242
...
98
Clutch Control Cable (Tines) MTD-946-0535
