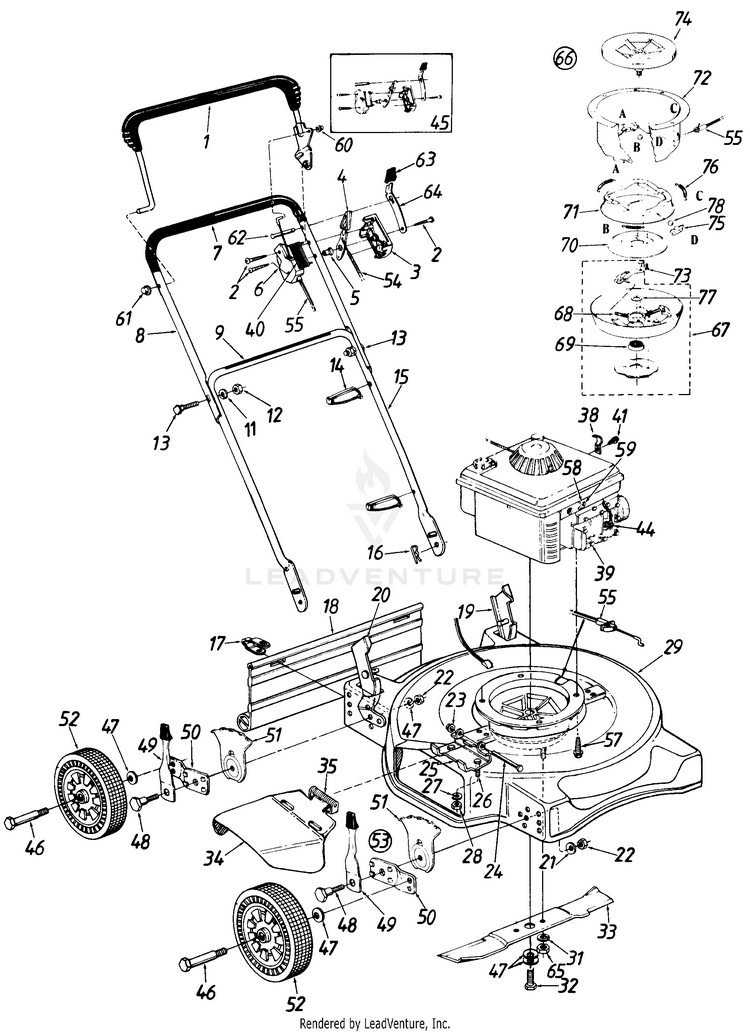

Turf Power Mdl 119-076B145 Push Walk-Behind Mower

Model: Turf Power Mdl 119-076B145

Save Part Not Listed?
product name

Parts

...
...
1
CONTROL HANDLE ASS'Y. MTD-16739
...
2
Truss Mach. Scr. #12 x 1.5" Lg. MTD-710-0796
...
3
PANEL MTD-731-0817
...
4
Throttle Control Lever MTD-931-0972
...
5
CONROL DISC PIN MTD-731-0524
...
6
CIUTCH PANEL HALF MTD-731-0816
...
7
Grip MTD-718-0145
...
8
UPPER HANDLE MTD-749-0754
...
9
Instruction Label-Handle MTD-777-5775
...
11
Lock Wash. 5/16" I.D. MTD-936-0119
...
12
HEX NUT 5/16-18 MTD-712-3010
...
13
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 MTD-710-0671
...
14
Cable Tie MTD-725-0157
...
15
Lower Handle MTD-749-0928A-0637
...
16
Hairpin Cotter MTD-714-0104
...
17
HINGE CLIP MTD-17098P
...
18
Rear Flap MTD-731-0872B
...
19
BRACKET ASSEMBLY-H MTD-17189
...
20
BRACKET ASSY-HDLE-RH MTD-17188
...
21
BELL WASHER MTD-936-0356
...
22
Hex Nut 3/8-16 Thd. MTD-712-0798
...
23
PUSH NUT MTD-726-0106
...
24
PIVOT PIN MTD-711-0555
...
25
ADAPTER PLATE MTD-11130
...
26
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
27
L-Wash. 1/4" I.D. MTD-936-0329
...
28
HEX NUT 1/4-20 MTD-912-0287
...
29
20" DECK ASS'Y. MTD-17039
...
xx
DECK ASSEMBLY-22IN MTD-17047
...
31
L-Wash. 3/8" I.D. MTD-736-0169
...
32
Hex Cent. L-Bolt 3/8-24 x 2.0" Lg. MTD-710-0818
...
33
20" BLADE (079B) MTD-742-0520
...
xx
22" BLADE (089B) MTD-742-0522
...
34
CHUTE DEFLECTOR MTD-931-1034B
...
35
TORSION SPRING MTD-732-0253
...
38
CABLE CLAMP MTD-12894
...
39
Engine MTD-NA
...
40
Control Label-Throttle MTD-777-5772
...
41
Hex B-Tap Scr. #10 x .38" MTD-910-0429
...
44
INSULATOR-SPARK PLUG (Optional) MTD-735-0639
...
45
KIT-THROTTLE CONTROL MTD-753-0431
...
46
Axle Bolt MTD-738-0102
...
47
Bell-Wash. .400" I.D. x .88" MTD-736-0105
...
48
Shoulder Bolt .50" Dia. MTD-738-0507B
...
49
Front Spring Lever MTD-94832
...
50
Pivot Bar MTD-15262B
...
51
Height Adjustment Plate MTD-787-01290A
...
52
8" REAR WHEEL ASS'Y. (STEEL WHEEL) MTD-734-0894
...
53
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
xx
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
54
Throttle Wire 55" Lg. (079B) MTD-946-0671A
...
xx
Throttle Wire 55" Lg. (089B) MTD-946-0671A
...
55
CLUTCH CABLE MTD-746-0402A
...
57
TT Screw, 3/8-16 x 1.00 MTD-710-0654A
...
58
CLIP-CASING MTD-751-0463
...
59
Hex Wash. Hd. Self-Tap Scr. MTD-710-0651
...
60
PUSH CAP MTD-726-0245
...
61
Cap Speed Nut MTD-726-0135
...
62
LOCKING PIN MTD-731-0607
...
63
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
64
SPRING-LOCKOUT MTD-732-0401
...
65
Hex Nut 3/8-24 Thd. MTD-712-0241
...
66
CLUTCH ASSEMBLY-BLADE BRAKE-PUSH MTD-717-0482
...
67
CLUTCH BLADE HOUSING ASS'Y. MTD-14300
...
68
SPRING MTD-732-0396
...
69
BALL BEARING MTD-941-0600
...
70
CLUTCH CONE MTD-14304
...
71
Brake Cup Cone MTD-14305
...
72
Clutch Housing MTD-14306
...
73
Hex Wash. TT-Tap Cl.-Scr. 1/4-20 x .75" Lg. MTD-710-0875
...
74
ADAPTER-FAN MTD-719-0256
...
75
BALL-BLOCK MTD-731-0520
...
76
EXTENSION SPRING MTD-732-0397
...
77
FLAT WASHER .687 x 1.060 x .032 MTD-736-0333
...
78
STEEL BALL MTD-741-0326

Parts

...
...

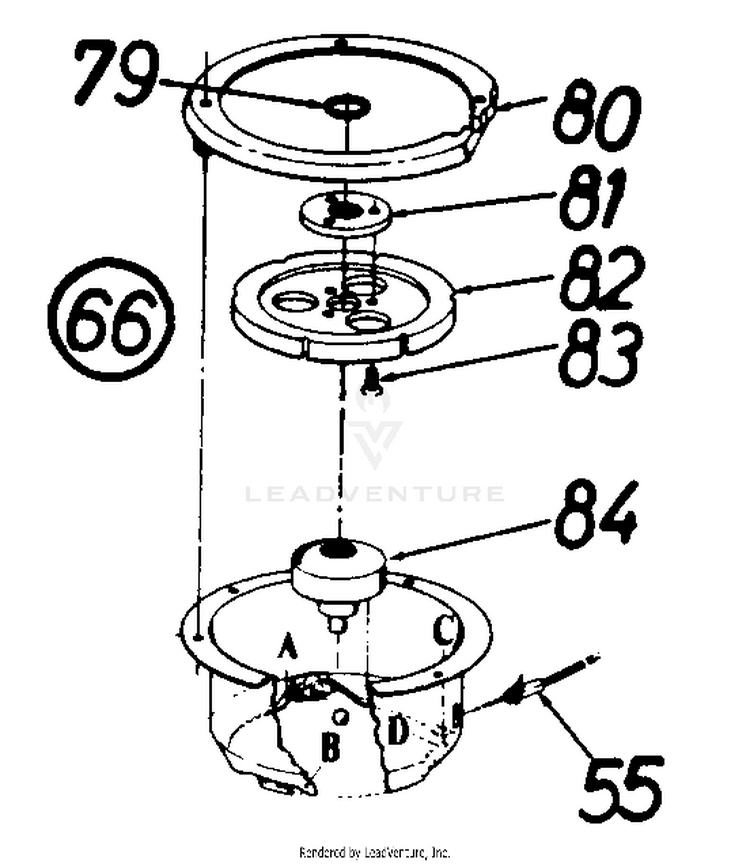

55
CLUTCH CABLE 43 IN MTD-746-0404
...
66
BBC ASS'Y. COMP. MTD-717-0844
...
79
WASHER MTD-736-0405
...
80
Engine Cover Plate MTD-13773
...
81
ADAPTER-FLYWHEEL MTD-748-0320
...
82
FLYWHEEL MTD-748-0319
...
83
SCREW-FL HD TORXB 1/4X20 x .6 MTD-710-0618
...
84
ADAPTER-FIXED PULL MTD-756-0504
