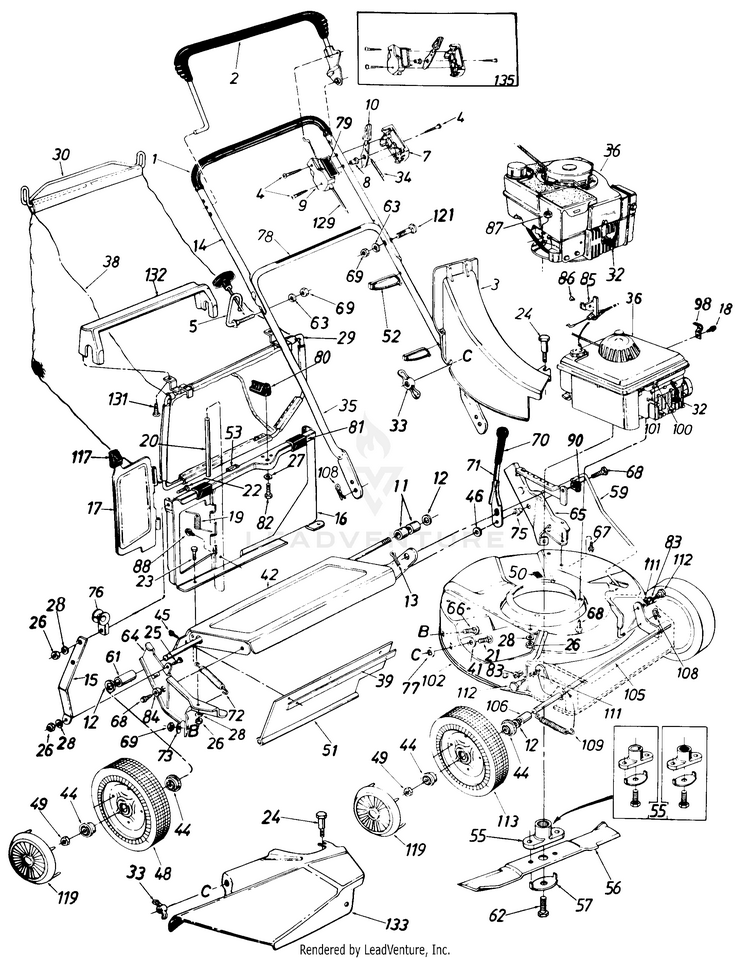

1

Grip Foam (Optional) MTD-720-0295

2

BAIL (LH) MTD-731-0609

3

CHUTE ASSEMBLY-TOP DIS (Top Discharge Models 115R, 116R, 117R and 119R Only) MTD-731-0733A

4

Truss Mach. Scr. #12 x 1.50" Lg. MTD-710-0796

5

SCREW-RECOIL HANDLE GUIDE MTD-710-0842B

7

PANEL MTD-731-0817

8

CONROL DISC PIN MTD-731-0524

9

CIUTCH PANEL HALF MTD-731-0816

10

Throttle Control Lever MTD-931-0972

11

SLEEVE MTD-711-0500

12

Fl-Wash. .510" I.D. x .75" MTD-736-0108

13

Cotter Pin 3/32" Dia. x .75" MTD-714-0507

14

UPPER HANDLE MTD-749-0438D-0637

xx

UPPER HANDLE MTD-749-0438D-0637

15

BRACKET-PANEL SUP (Top Discharge Models 115R, 116R, 117R and 119R Only) MTD-16129A-0637

16

PANEL ASSEMBLY W/OUT CUTOUT (Top Discharge Models 115R, 116R, 117R and 119R Only) MTD-17092A

17

DOOR-TOP DISCHARGE (Top Discharge Models 115R, 116R, 117R and 119R Only) MTD-17095

18

Hex B-Tap Scr. #10 x .38" (1O9R, 116R, 119R) MTD-910-0429

19

Torsion Spring (Top Discharge Models 115R, 116R, 117R and 119R Only) MTD-732-0483A

20

ROD (Top Discharge Models 115R, 116R, 117R and 119R Only) MTD-747-0514

21

Carriage Bolt 1/4-20 x .62" MTD-710-0134

22

Truss Mach. Scr. 1/4-20 x 75" Lg. (Top Discharge Models 115R, 116R, 117R and 119R Only) MTD-710-0225

23

Hex Bolt 1/4-20 x .50" Lg. (Top Discharge Models 115R, 116R, 117R and 119R Only) MTD-910-0289

24

Shoulder Bolt .312 Dia. x .18 Lg. Special MTD-738-0704

25

Hex Bolt 1/4-20 x .62" Lg. MTD-710-0258

26

HEX NUT 1/4-20 MTD-912-0287

27

SPRING WASHER .317 X .625 X .020 (Top Discharge Models 115R, 116R, 117R and 119R Only) MTD-936-0271

28

L-Wash. 1/4" I.D. MTD-936-0329

29

FRAME-GRASSCATCHER (Top Discharge Models 115R, 116R, 117R and 119R Only) MTD-16702B

30

HANDLE-GRASSCATCHE (Top Discharge Models 115R, 116R, 117R and 119R Only) MTD-747-0495

32

INSULATOR-SPARK PLUG MTD-735-0639

33

Wing Nut MTD-712-0397A

34

Throttle Wire 55" Lg. (117R) MTD-946-0671A

xx

Throttle Wire-58" Lg. (109R, 116R, 119R) MTD-946-0674A

xx

Throttle Cable (115R) MTD-946-1115

35

Lower Handle MTD-749-0907B

xx

Lower Handle MTD-749-0907B

36

Engine MTD-NA

38

21" Top Discharge Grass Bag-Black (Top Discharge Models 115R, 116R, 117R and 119R Only) MTD-764-0212B

xx

21" TOP DISCHARGE GRASSBAG-GREY (Top Discharge Models 115R, 116R, 117R and 119R Only) MTD-764-0216B

39

STRIP-RETA MTD-14835

41

Fl-Wash. .344" I.D. x .62" MTD-736-0204

42

AXLE ASSEMBLY- MTD-16131A

44

BALL BEARING MTD-941-0180

45

Hex Screw, 1/4-14 x 0.625" MTD-710-0896

46

Fl-Wash. .38" I.D. x 1.0" MTD-736-0258

48

Wheel Ass'y.-Comp. 8 x 2" MTD-NA

49

Hex L-Nut 1/2-20 Thd. MTD-712-0346

50

PLUG MTD-731-0564

51

FLAP-REAR MTD-731-0671A

52

Cable Tie MTD-725-0157

53

STR.-FOAM PVC 1.1/ (Top Discharge Models 115R, 116R, 117R and 119R Only) MTD-722-0139

55

KIT-BLADE (1O9R, 119R) MTD-753-0462

xx

SPLINED BLADE ADAPTER KIT (115R, 116R, 117R) MTD-753-0485

56

21" Blade (109R, 115R, 116R, 119R) MTD-942-0621

xx

21" Blade (117R) MTD-942-0621

57

KIT-BLADE MOUNTING MTD-753-0525

59

ROD-HGT ADJ 1.50 x 19.42 MTD-747-0510

61

SLEEVE MTD-711-0313

62

Hex Bolt 7/16-20 x 1.5" Lg. (115R, 116R, 117R) MTD-710-0757

xx

Hex Bolt 3/8-24 x 1.5" Lg. (1O9R, 119R) MTD-710-1044

63

Lock Wash. 5/16" I.D. MTD-936-0119

64

BRACKET ASSEMBLY (RH) MTD-16136

65

BRACKET ASSEMBLY (LH) MTD-16137

66

Carriage Bolt 5/16-18 x.62 MTD-710-0260A

67

Hex Wash. Hd. B-Tap Scr. 5/1 6-1 8 MTD-710-0603

68

Hex Wash. Hd. TT-Tap Scr. 3/8-1 6 MTD-710-0654A

69

HEX NUT 5/16-18 MTD-712-3010

70

Grip MTD-720-0223

71

HEIGHT ADJUSTMENT LEVER MTD-732-0473B

72

EXTENSION SPRING MTD-732-0481

73

Bell-Wash. 5/16" I.D. MTD-736-0242

75

SHOULDER SPACER MTD-750-0624

76

Rope Guide (Top Discharge Models 115R, 116R, 117R and 119R Only) MTD-719-0279

77

Bolt Retainer 1/4 x .50" O.D. MTD-726-0233

78

LABEL MTD-777-5776

79

Control Label MTD-777-5774

80

LOCKING KNOB (Top Discharge Models 115R, 116R, 117R and 119R Only) MTD-920-0224

81

PANEL BAG CLIP (Top Discharge Models 115R, 116R, 117R and 119R Only) MTD-731-0880

82

Hex Wash. TT-Tap Scr. 1/4-20 x .75" Lg. (Top Discharge Models 115R, 116R, 117R and 119R Only) MTD-710-0875

83

Flanged Nyliner Brg. MTD-741-0491

84

SPACER MTD-950-0736

85

BRACKET-CA (109R, 116R, 119R) MTD-14924

86

RIVET (109R, 116R, 119R) MTD-728-0171

87

Hex Nut 3/8-16 Thd. (117R) MTD-712-0798

88

Hex B-Tap Scr. #10 x .38" (Top Discharge Models 115R, 116R, 117R and 119R Only) MTD-910-0429

90

CLAMP MTD-726-0175

98

CABLE CLAMP (1O9R, 116R, 119R) MTD-12894

100

Hex Wash. Hd. Self-Tap Scr. (109R, 116R, 119R) MTD-710-0651

101

CLIP-CASING (109R, 116R, 119R) MTD-751-0463

102

21 n Deck Ass'y. MTD-16125

105

Front Axle Ass'y. MTD-10662B

106

SLEEVE MTD-711-0313

108

Intern. Cotter Pin 5/16" Dia. MTD-714-0104

109

EXTENSION SPRING MTD-732-0482

111

LOCK WASHER 3/8 X.56 OD MTD-736-0221

112

SHOULDER SCREW MTD-938-0705

113

Wheel Ass'y. Comp. MTD-NA

xx

WHEEL ASSEMBLY W/TIRE MTD-734-0922

xx

"T" Tread (7 x 1.75") MTD-734-1264

xx

WHEEL ASSEMBLY W/TIRE MTD-734-0924

xx

WHEEL ASSEMBLY W/TIRE-T-TREAD MTD-734-1412

117

HEIGHT ADJUSTMENT KNOB (Top Discharge Models 115R, 116R, 117R and 119R Only) MTD-731-13116-1

119

Huh Cap MTD-NA

xx

HUB CAP MTD-731-0124A

xx

HUB CAP MTD-731-0254A

xx

Black MTD-731-0354A

xx

HUB CAP-GRAY MTD-731-0355A

121

BOLT-CARRIAGE-CURV 5/16-18 x 1.38 MTD-710-0671

129

CONTROL CABLE 55" (115R, 117R) MTD-946-0479A

xx

CABLE-CONTROL (109R, 116R, 119R) MTD-746-0480A

131

Truss Mach. B-Tap Scr. #12 x 1.5" Lg. MTD-710-0969

132

BAG HANDLE BLACK (Top Discharge Models 115R, 116R, 117R and 119R Only) MTD-731-0801

xx

BAG HANDLE BLACK (Top Discharge Models 115R, 116R, 117R and 119R Only) MTD-731-0802

133

CHUTE DEFLECTOR MTD-731-0886

135

CONTROL HOUSING COMP. MTD-753-0430
