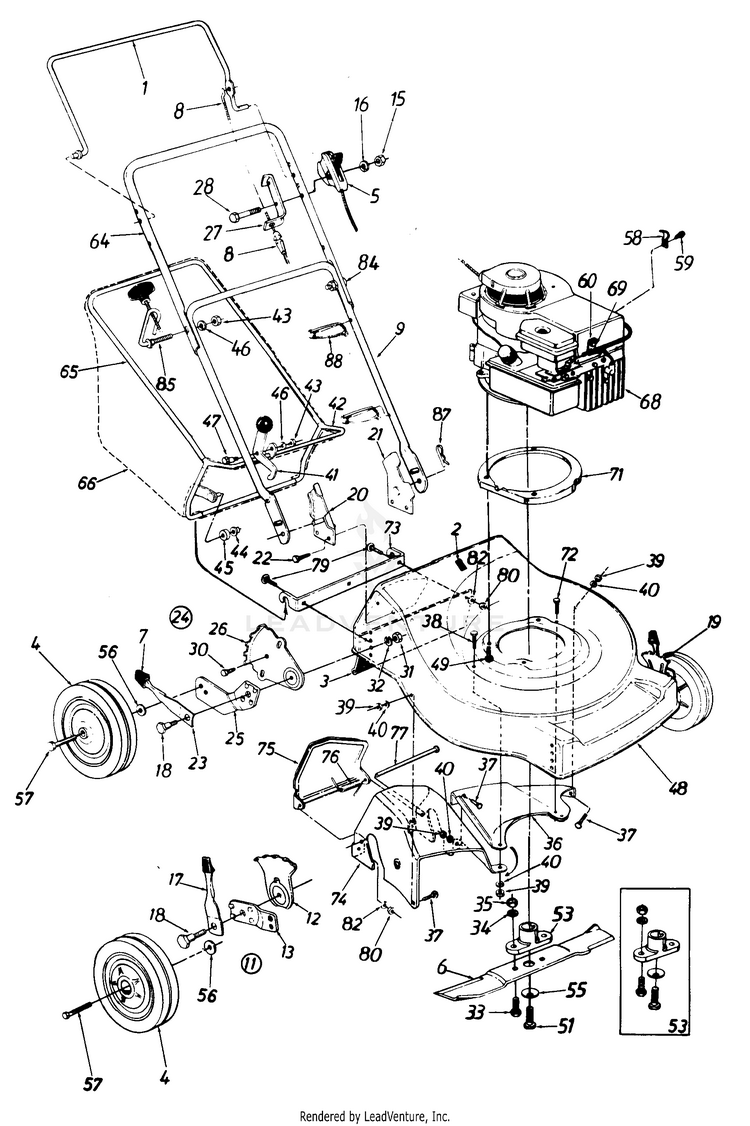

Turf Power Mdl 110-300R145 Push Walk-Behind Mower

Model: Turf Power Mdl 110-300R145

Save Part Not Listed?
product name

Parts

...
...
1
CONTROL HANDLE ASSEMBLY MTD-747-0748
...
2
PLUG MTD-731-0564
...
3
FLAP MTD-731-0665
...
4
Wheel, 8 x 1.7 MTD-734-1855
...
5
Throttle Control Ass'y. Comp.- 0 51 .6211 MTD-946-0802A
...
6
20" BLADE MTD-742-0520
...
7
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
8
Control Cable 43.0" Lg. MTD-946-0551
...
9
Lower Handle MTD-749-0907B
...
11
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
12
Height Adjustment Plate MTD-787-01290A
...
13
Front Pivot Bar MTD-15262B
...
15
HEX NUT 1/4-20 MTD-912-0287
...
16
Spring Wash. .265 I.D. x .562 O.D. MTD-936-0175
...
17
Front Spring Lever MTD-94832
...
18
Shld. Bolt .50" Dia. x .375 MTD-738-0507B
...
19
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
20
BRACKET ASSEMBLY MTD-12296B-0637
...
21
BRACKET ASSEMBLY MTD-12297A
...
22
SCREW 1/4-14 x .625 MTD-710-0892
...
23
SPRING LEVER MTD-732-0417A
...
24
ADJUSTER-H MTD-16106
...
xx
ADJUSTER-H (Not Shown) MTD-16107
...
25
BAR-PIVOT (RH) *ON MTD-14765
...
xx
BAR-PIVOT (LH) *ON (Not Shown) MTD-14766
...
26
Rear Index Plate MTD-14764C
...
27
BRACKET-CA MTD-17174
...
28
Hex Bolt 1/4-20 x 1.75" Lg. MTD-710-0136
...
30
SCREW 1/4-14 x .625 MTD-710-0892
...
31
Hex Nut 3/8-16 Thd. MTD-712-0798
...
32
BELL WASHER MTD-936-0356
...
33
SCREW 3/8-24 C 1.00 GR5 MTD-710-1055
...
34
L-Wash. 3/8" I.D. MTD-736-0169
...
35
Hex Nut 3/8-24 Thd. MTD-712-0241
...
36
BAFFLE-CHU MTD-13405A
...
37
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
38
Hex Bolt 1/4-20 x .88" Lg. MTD-710-0206
...
39
HEX NUT 1/4-20 MTD-912-0287
...
40
L-Wash. 1/4" I.D. MTD-936-0329
...
41
GRIP ASSEMBLY- MTD-13435
...
42
FRAME-CATC MTD-13924
...
43
HEX NUT 5/16-18 MTD-712-3010
...
44
Push Cap 3/8" Rod MTD-726-0100
...
45
ROLLER-PLASTIC MTD-731-0430
...
46
Lock Wash. 5/16" I.D. MTD-936-0119
...
47
Shld. Bolt .437" Dia. x .180" MTD-738-0140
...
48
DECK ASSEMBLY-20IN MTD-16108
...
49
Hex Wash. Hd. TT-Tap Scr. 3/8-16 x 1.0" Lg. MTD-710-0654A
...
51
Hex Bolt 3/8-24 x 1.5" Lg. (Grade 5) MTD-710-1044
...
53
Blade Adapter Kit MTD-753-0484
...
55
Bell-Wash..39" I.D. MTD-736-0452
...
56
Bell-Wash. .400" I.D. x .88" MTD-736-0105
...
57
Axle Bolt MTD-738-0102
...
58
CASING CLAMP MTD-12894A
...
59
Hex B-Tap Scr. #10 x .38" MTD-910-0429
...
60
CLAMP-CONDUIT MTD-751-0369
...
64
UPPER HANDLE MTD-749-0438D-0637
...
65
FRAME-CATCHER-UPR MTD-749-0278
...
66
GRASSBAG MTD-764-0170B
...
68
Engine MTD-NA
...
69
Hex AB-Tap Scr. #8 x .38" Lg. MTD-710-0227
...
71
Engine Mounting Cover MTD-13773A
...
72
Hex Self-Tap Scr. 1/4-20 x .75n MTD-710-0642
...
73
ADAPTER-GR MTD-14012
...
74
BAFFLE-CHU MTD-14235
...
75
CHUTE DOOR MTD-13407
...
76
TORSION SPRING MTD-732-0346
...
77
HINGE PIN MTD-738-0386
...
79
Carr. Bolt 1/4-20 x .75" Lg. MTD-710-0703
...
80
Hex Sems Nut 1/4-20 Thd. MTD-712-0271
...
82
Fl-Wash. .281" I.D. x 1.25" MTD-736-0211
...
84
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 MTD-710-0671
...
85
SCREW-RECOIL HANDLE GUIDE MTD-710-0842B
...
87
Hairpin Cotter MTD-714-0104
...
88
Cable Tie MTD-725-0157
...
xx
GRASSCATCH MTD-190-006-000
