Turf Power 213-390-019 (1993) Tiller

Model: 213-390-019 (1993)

Back To Assemblies

Save Part Not Listed?
product name

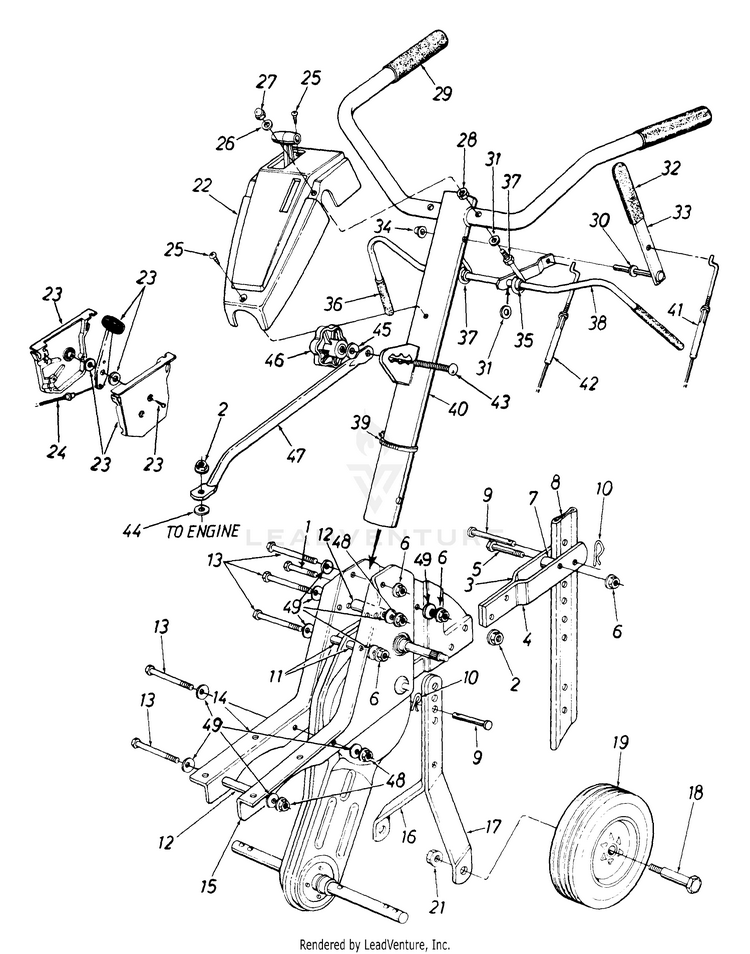

Handle And Wheel Assembly

...
...
1
Hex Bolt 5/16-18 x 1.25" Lg. MTD-710-0874
...
2
HEX FLANGE NUT MTD-712-3004A
...
3
Tail Piece Brkt. (R.H.) MTD-786-0004-0637
...
4
Tail Piece Brkt. (L.H.) MTD-786-0003-0637
...
5
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
6
HEX FLANGE NUT MTD-712-3004A
...
7
Spacer .32" I.D. x .75" 0 D. MTD-750-0890
...
8
Depth Bar MTD-786-0005-0637
...
9
Clevis Pin .375" Dia. x 1.88" MTD-711-0679A
...
10
Internal Cotter Pin MTD-714-0149B
...
11
Spacer .326" I.D. x .47" 0 D. MTD-750-0470
...
12
Spacer .322 Dia. MTD-750-0885A
...
13
Hex Bolt 5/16-18 x 2.75" Lg. MTD-710-0176
...
14
FRAME (RH) MTD-786-0028
...
15
FRAME (LH) MTD-786-0029
...
16
WHEEL HANGER BRKT. (RH) MTD-786-0002
...
17
WHEEL HANGER BRKT. (LH) MTD-786-0001
...
18
Shld. Bolt .498" Dia. x 1.45" Lg. MTD-738-0213
...
19
Wheels with Ball Brgs. MTD-734-1268
...
?20
HANDLE COVER W/REV MTD-731-1287
...
21
UNKNOWN MTD-NA
...
22
UNKNOWN MTD-NA
...
23
Throttle Control Box Ass'y. MTD-831-0823A
...
24
35" THROTTLE CABLE MTD-946-0503
...
25
Truss Mach. AB-Tap Scr. #10 x .5" Lg. MTD-710-0779A
...
26
Fl-Wash 266" I.D. x 625" O.D MTD-736-3020
...
27
Hex L-Stop Nut 1/4-28 Thd MTD-712-0392
...
28
Hex Nut 1/4-28 Thd MTD-712-0138
...
29
GRIP-HANDLE MTD-720-0268
...
30
Fl-Wash..344" I. D. x 62" O. D. MTD-736-0264
...
31
Fl-Wash..385" I. D. x .62" O . D. MTD-736-0140
...
32
REVERSE LEVER GRIP MTD-720-0270
...
33
REVERSE HANDLE ASSEMBLY MTD-686-0014
...
34
Cap Speed Nut MTD-726-0135
...
35
BUSHING .380 ID MTD-941-0475
...
36
Grip - Clutch MTD-720-0269
...
37
EYE-BOLT MTD-747-0815
...
38
CLUTCH HANDLE ASSEMBLY MTD-686-0008
...
39
Cable Tie 9" Lg. MTD-726-0317
...
40
HANDLE ASSEMBLY MTD-649-0022A
...
41
CLUTCH REVERSE CABLE MTD-746-0880
...
42
FORWARD CLUTCH CABLE MTD-746-0879
...
43
Carr. Bolt 5/16-18 x 1" Lg. (Special) MTD-710-1236
...
44
WASHER-FL NLAUD MTD-936-0123
...
45
Bell-Wash. 345" I.D. x .88" O.D. MTD-736-0242
...
46
Hand Knob MTD-720-0195
...
47
ENGINE TUBING BRACE MTD-749-0915
...
48
Hex Nyloc Nut 5/16-18 Thd MTD-712-0429
...
49
Bell-Wash 345" I D. x .88" O.D. MTD-736-0242
