Turf Power 143Y849H019 (1993) Garden Tractor

Model: 143Y849H019 (1993)

Back To Assemblies

Save Part Not Listed?
product name

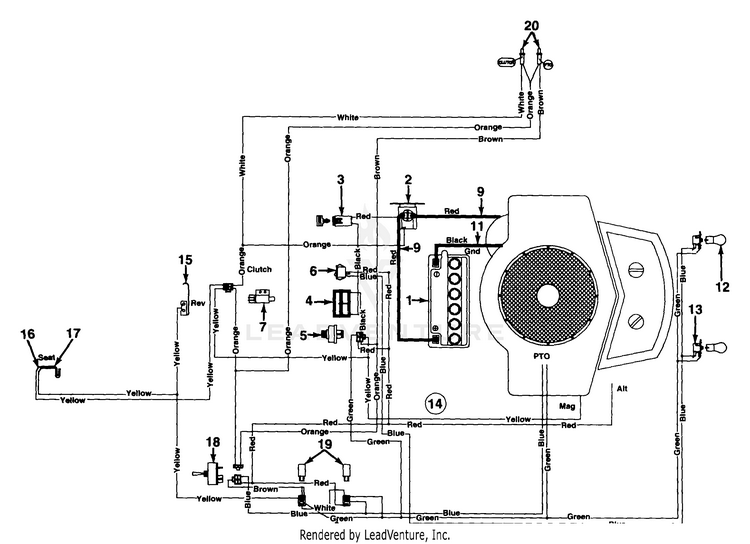

Electrical/Switches

...
...
1
BATTERY 275CCA MTD-725-1635
...
2
Solenoid MTD-925-1426A
...
3
FUSE-20A MTD-925-1381
...
4
Ammeter MTD-925-0925
...
5
Ignition Switch MTD-925-1396A
...
6
Light Switch MTD-925-0634
...
7
SWITCH MTD-925-04039
...
9
WIRE ASSEMBLY (RED W/BOOT) (#6 X14) MTD-629-0705
...
11
6 GA. BLACK WIRE MTD-725-0996
...
12
Miniature Lamp 12V Socket Type MTD-925-0963
...
13
SHORT LAMP SOCKET MTD-925-1650
...
14
WIRE HARNESS New Part MTD-629-0109
...
15
Spring Switch (Reverse) MTD-725-1643
...
16
Outer Seat Spring Switch MTD-925-1303
...
17
Spring Switch (Seat) MTD-725-1439
...
18
Safety Switch (PTO) MTD-925-0893
...
19
RELAY MTD-925-1648A
...
20
Monitor Bulb MTD-925-1365
