Turf Power 143Y839H019 (1993) Garden Tractor

Model: 143Y839H019 (1993)

Back To Assemblies

Save Part Not Listed?
product name

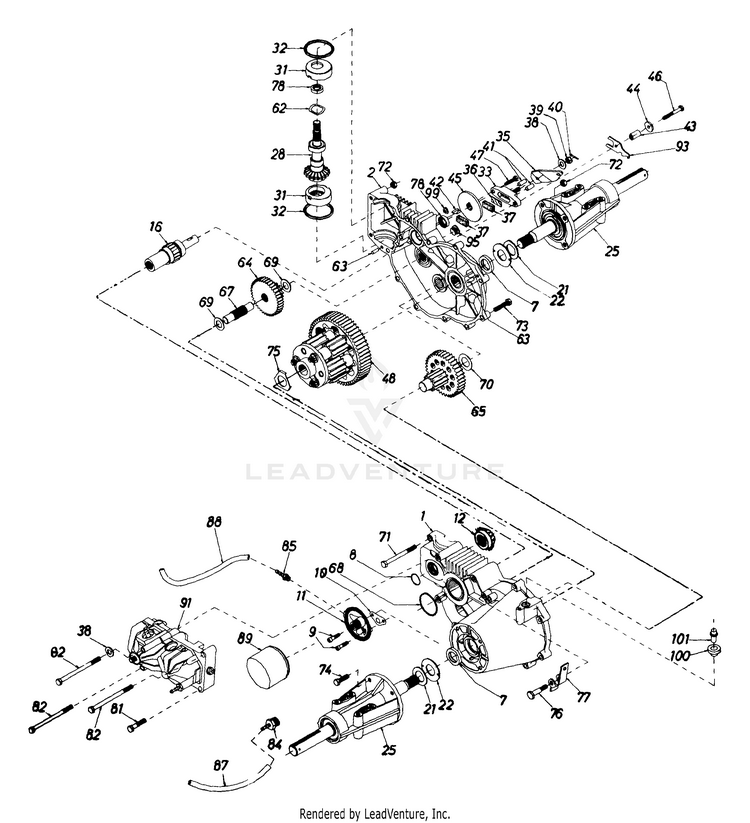

Transmission Assembly/Filter, Transmission

...
...
xx
TRANSMISSION COMP MTD-918-0241A
...
1
Housing-L.H. Ass'y. MTD-HG-52881
...
2
Housing-R.H. Ass'y. MTD-HG-52879
...
7
OIL SEAL MTD-HG-44782
...
8
RING-QUAD MTD-HG-50070
...
9
Capscrew, 1/4-20 x 1 MTD-NA
...
10
FILTER BASE GASKET MTD-HG-44920
...
11
FILTER BASE ASSEMBLY MTD-HG-70053
...
12
Pinion Ass'y. MTD-HG-62876
...
16
Brake Shaft Ass'y. MTD-HG-62877
...
21
WASHER MTD-HG-44805
...
22
WASHER MTD-HG-44806
...
25
HORN-AXLE MOUNTING ASSEMBLY MTD-HG-62888
...
28
Input Ass'y. MTD-HG-70054
...
31
Ret. Bearing MTD-HG-44800
...
32
O-Ring 2-1/2" O.D. MTD-HG-44802
...
33
(Sub) Brake Yoke Ass'y. MTD-HG-62589
...
35
Brake Arm MTD-HG-44094
...
36
PUCK PLATE MTD-917-0682
...
37
BRAKE PUCK MTD-917-0678
...
38
Fl-Wash. .344" I.D. x .875" O.D. MTD-736-0371
...
39
NUT MTD-912-0273
...
40
COTTER PIN-3/32 MTD-914-0507
...
41
Actuating Pin 5/16" Dia. MTD-741-0343
...
42
KEY 3/16 x 5/8 H MTD-914-0161
...
43
SPACER-TORSION SPG MTD-HG-23711
...
44
WASHER MTD-HG-44278
...
45
BRAKE DISC MTD-717-0677
...
46
BOLT 1/4-2 MTD-HG-44300
...
47
Bolt 1/4-20" x 1 W/Nylok Gr. 5 MTD-HG-44433
...
48
Differential Ass'y. MTD-HG-62834
...
62
Wave Washer MTD-HG-44843
...
63
Dowel Pin MTD-HG-44757
...
64
Reduction Gear 14T-38T MTD-HG-44776
...
65
Final Drive Pinion Ass'y. MTD-HG-70051
...
67
Jack Shaft MTD-HG-44779
...
68
O-RING MTD-HG-44781
...
69
Fl-Wash. 5/8" I.0. x 1-5/32" O.D. Ht. 2 MTD-HG-44795
...
70
Fl-Wash. 7/8" I.D. x 1-1/2" O.O. Ht. MTD-HG-44794
...
71
Hex Bolt H.D. 5/16-18" x 3-1/2" MTD-HG-44827
...
72
Hex Lock Nut 5/16-18" 2-Way Plt. MTD-HG-43064
...
73
Hex Bolt 5/16-18" x 1-1/2" Gr. 5 Plt. 11 MTD-HG-44841
...
74
Hex Bolt 5/16-18" x 1 MTD-HG-45089
...
75
Differential Washer .050 MTD-HG-44880
...
76
BOLT-SHOUL MTD-HG-44785
...
77
ARM-ACTUATING FREEWHEEL MTD-HG-44786
...
78
Seal, Lip, .625 x 1.0 x .25 MTD-HG-70719
...
81
BOLT-HEX 5 MTD-HG-43084
...
82
Hex Bolt 5/16-18" x 4-1/2" MTD-HG-44820
...
84
SAE Port Straight Fitting 7/8" MTD-HG-50009
...
85
FITTING-PO MTD-HG-50010
...
87
HOSE-HYDRA MTD-HG-50011
...
88
HOSE-HYDRA MTD-HG-50012
...
89
HYDRAULIC FILTER MTD-751-17566
...
91
Transmission MTD-HG-BDU-10L-256
...
93
BRACKET-BRAKE RETURN MTD-17434A
...
95
Straight Thread Plug MTD-HG-9005110-5600
...
99
Washer 5/16" I.D. x 9/16" O.D. MTD-HG-50136
...
100
BUSHING-VENT MTD-HG-50133
...
101
VENT MTD-HG-50134
...
?102
KIT-SEAL MTD-HG-70052
