Turf Power 142-846H095 (1992) Garden Tractor

Model: 142-846H095 (1992)

Back To Assemblies


product name

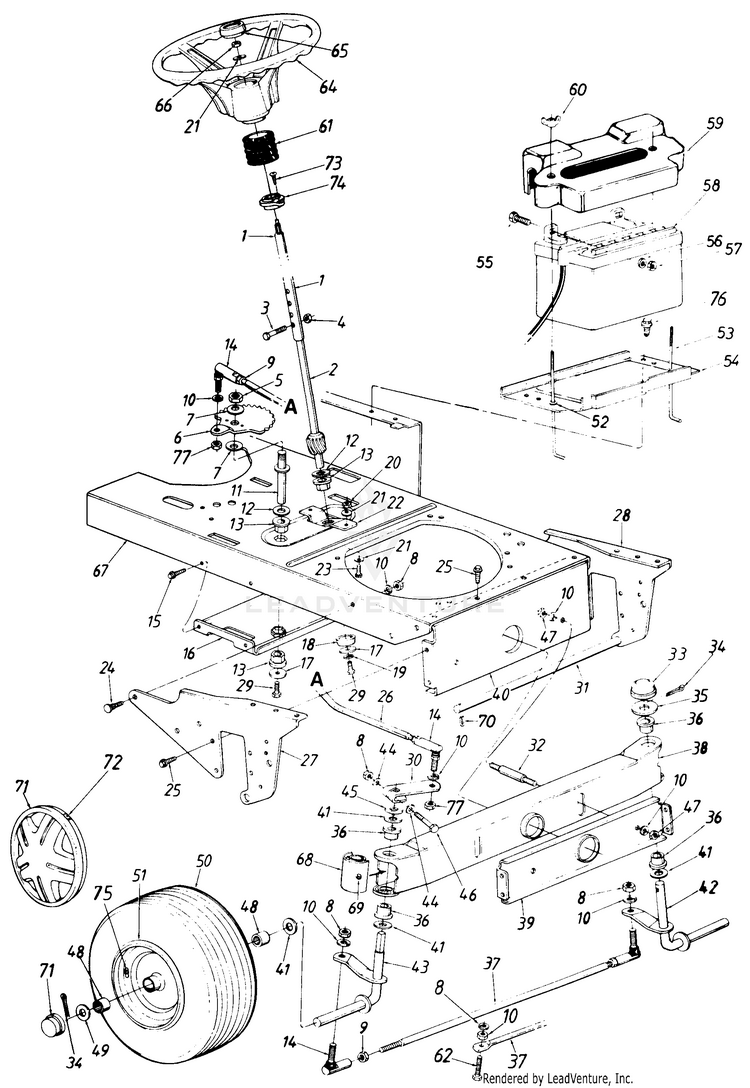

Steering Assembly, Lower Frame & Battery

...
...
1
STEERING COLUMN ASS Y. MTD-16512

...
2
Lower Steering Shaft MTD-938-0763

...
3
Hex Bolt 1/4-20 x 1.25" Lg. MTD-710-0106

...
4
Hex L-Nut 1/4-20 Thd. MTD-712-0324

...
5
HEX JAM NUT 5/8-18 For faster service obtain standard nuts, bolts, and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts lists. MTD-712-0318

...
6
Steering Gear Segment MTD-717-0943C

...
7
Bell-Wash. 5/8" I.D. x 1.25" O.D. MTD-736-0317

...
8
Hex Nut 3/8-24 Thd. MTD-712-0241

...
9
Hex Jam Nut 3/8-24 Thd. MTD-712-0711

...
10
L-Wash. 3/8" I.D. For faster service obtain standard nuts, bolts, and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts lists. MTD-736-0169

...
11
STEERING SEGMENT MTD-738-0768

...
12
Fl-Wash. .64" I.D. x 1.24" O.D. MTD-736-0187

...
13
Hex Flange Bearing Bronze .625" I.D. MTD-948-0227A

...
14
Ball Joint, 3/8-24 MTD-923-3018

...
15
Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599

...
16
IDLER BRACKET MTD-16888A-0637

...
17
Fl-Wash. .33" I.D. x 1.25" O.D. MTD-736-0343

...
18

...
19
Lock Wash. 5/16" I.D. For faster service obtain standard nuts, bolts, and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts lists. MTD-936-0119

...
20
Hex Nut 5/16-24 Thd. For faster service obtain standard nuts, bolts, and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts lists. MTD-912-3057

...
21
Bell-Wash. .345" I.D. x.88" O.D. MTD-736-0242

...
22
BRACKET-BE MTD-16894

...
23
Hex Bolt 5/16-24 x .75" Lg. MTD-710-0157

...
24
SCREW 3/8-24 x .80 MTD-710-0793

...
25
Screw, 5/16-18 x .625 MTD-710-0604A

...
26
DRAG LINK KIT MTD-753-0674

...
27
PLATE-PIVOT MTD-16896

...
28
PLATE-PIVOT MTD-16897

...
29
Hex Bolt 5/16-18 x .62" Lg. MTD-710-0538

...
30
STEERING ARM ASSEMBLY BLACK MTD-983-0061A-0637

...
31
ROD-DECK CONNECTING MTD-738-0777A

...
32
Pivot Bar Shld. Bolt 3/8-16 x 5/8" Lg. MTD-738-0775

...
33

...
34
COTTER PIN-5/32 DIA x 1.00 MTD-914-0121

...
35
Flat Washer MTD-736-0316

...
36
Flange Brg. .757" I.D. MTD-741-0523

...
37

...
xx
TIE ROD (NON ADJUSTABLE) MTD-747-0862

...
38
BAR ASSY-PIVOT (POWDER BLACK) MTD-96843-0637

...
39
PIVOT SUPPORT BRACKET BLACK MTD-16889A-0637

...
40
Pivot Bar Support Brkt.-Rear MTD-16890A-0637

...
41
Fl-Wash. .76" I.D. x 1.49" O.D. MTD-736-0188

...
42
FRONT AXLE ASS'Y. (LH) MTD-16915

...
43
AXLE ASSEMBLY (RH) MTD-938-0008A

...
44
Bowed Washer MTD-936-0286

...
45
Spacer .755" I.D. x 1.25" O.D. MTD-948-0160

...
46
Hex Bolt 3/8-24 x 2.25" Lg. MTD-710-0331

...
47
Hex Nut 3/8-16 Thd. For faster service obtain standard nuts, bolts, and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts lists. MTD-712-0798

...
48
FLANGE BEARING MTD-741-0516B

...
xx
Ball Brg. .75" I.D. MTD-941-3032

...
49
Fl-Wash. .71" I.D. x 1.5" O.D. MTD-736-0316

...
50
WHEEL ASSEMBLY W/TIRE 16 x 6.50 MTD-734-1500A

...
xx
WHEEL ASSEMBLY 16 x 6.5 x 8 MTD-734-1722

...
xx
TUBELESS TIRE-16 x 6.5 x 8.0 MTD-734-0275

...
51
RIM (OYSTER GREY) MTD-934-0067-0662

...
xx
WHEEL-RIM MTD-734-1688

...
52
PUSH CAP MTD-926-0271

...
53
HOLD DOWN BATTERY ROD MTD-911-0222A

...
54
BRACKET-MT MTD-17635

...
xx
BATTERY PLATE (840 Only) MTD-17634

...
55
Hex Bolt 1/4-20 x .62" Lg. For faster service obtain nuts, bolts, and washer locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-710-0258

...
56
L-Wash. 1/4" I.D. For faster service obtain standard nuts, bolts, and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts lists. MTD-936-0329

...
57
HEX NUT 1/4-20 For faster service obtain standard nuts, bolts, and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts lists. MTD-912-0287

...
58
BATTERY 275CCA (275 Cold Crank Amps) MTD-725-1635

...
59
BATTERY COVER MTD-731-1132

...
60
Wing Nut 1/4-20 Thd. MTD-912-0113

...
61
STEERING BELLOW 9" (840, 844, 846 & 849) MTD-931-0954

...
xx
STEERING BELLOW (842, 843 & 848) MTD-731-0559B

...
62
Hex Cap Screw 3/8-24 x 1.5 MTD-710-0459A

...
64
STEERING WHEEL MTD-731-0805

...
xx
STEERING WHEEL MTD-731-0806A

...
65
Steering Wheel Cap MTD-931-0220

...
66
Hex L-Nut 5/16-24 Thd. MTD-712-0237

...
67
LOWER FRAME MTD-17359A

...
68
PIVOT BAR END CAP Optional Parts MTD-731-1049

...
69
GREASE FITTING (SLOTTED) Optional Parts MTD-737-0280

...
70
Internal Cotter Pin MTD-714-0149B

...
71

...
xx
FRONT HUB CAP Optional Parts MTD-734-1503

...
72
SPRING CLIP Optional Parts MTD-727-0425

...
73
Oval Hd. Cr.-Sunk Scr. #10 x 5/8" Lg. (Not Used on Styles 0, 4, 6, 9) MTD-710-0837

...
74
FLANGE BEARING (Not Used on Styles 0, 4, 6, 9) MTD-741-0356A

...
75
TUBELESS VALVE MTD-934-0255

...
76
Hex Screw, 1/4-14 x 0.625" MTD-710-0896

...
77
Hex Jam Nut 3/8-24 Thd. MTD-912-0446

...
xx
GREASE FITTING (SLOTTED) MTD-737-0280
