Turf Power 133Z619G019 (1993) Lawn Tractor

Model: 133Z619G019 (1993)

Back To Assemblies


product name

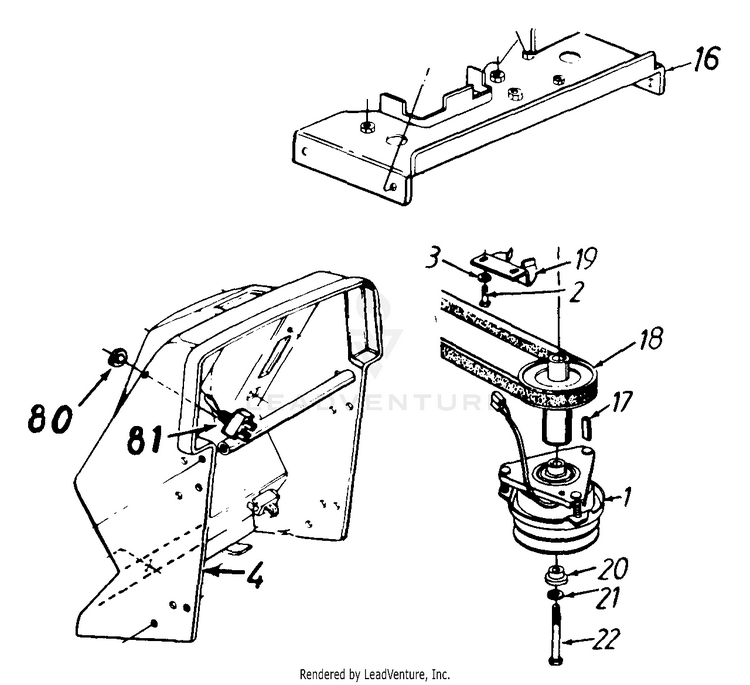

PTO Clutch

...
...
1
CLUTCH-ELE MTD-717-0983

...
2
SCREW 5/16-18 x .75 GR5 MTD-710-3008

...
3
Bell-Wash. .345" 1.0. x .88" MTD-736-0242


...
16
BRACKET-BELT GUARD MTD-17358D-0637

...
17
Sq. Key 1/4" x 1.5" Lg. MTD-714-0118

...
18
Engine Pulley MTD-756-0565

...
19
TORQUE BRACKET MTD-17418

...
20
Shld. Spacer .445" I.D. For faster service obtain nuts, bolts, and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-938-0785

...
21
L-Wash. 7/16" I.D. MTD-736-0171

...
22
SCREW 7/16-20 x 5.00 GR5 MTD-710-1067

...
80
HEX NUT 1/2-27 x .100 THK MTD-712-3014

...
81
Safety Switch (PTO) MTD-925-0893
