Turf Power 133Z619G019 (1993) Lawn Tractor

Model: 133Z619G019 (1993)

Back To Assemblies

Save Part Not Listed?
product name

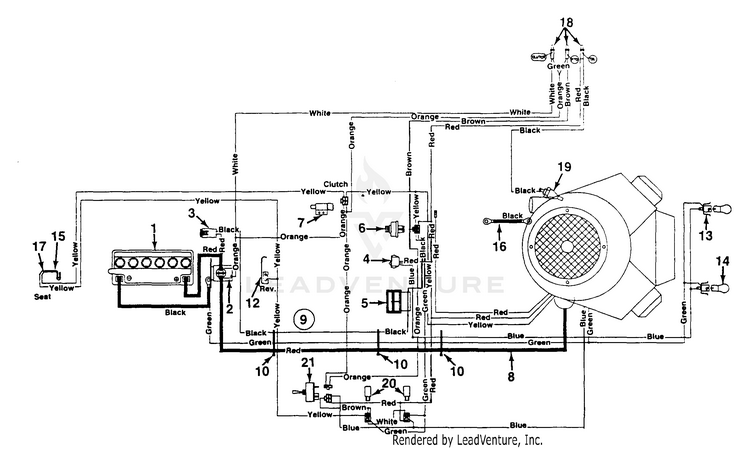

Electrical/Switches

...
...
1
BATTERY 275CCA MTD-725-1635
...
2
Solenoid MTD-925-1426A
...
3
FUSE-20A MTD-925-1381
...
4
Light Switch MTD-925-0634
...
5
Ammeter MTD-925-0925
...
6
Ignition Switch MTD-925-1396A
...
7
SWITCH MTD-925-04039
...
8
WIRE ASSEMBLY (RED) (#6X32.5) MTD-629-0740
...
9
WIRE HARNESS New Part MTD-629-0101
...
10
Cable Tie MTD-726-0197
...
12
Safety Switch (Reverse) MTD-725-1643
...
13
SHORT LAMP SOCKET MTD-925-1650
...
14
Miniature Lamp 12V Socket Type MTD-925-0963
...
15
Outer Seat Spring Switch MTD-925-1303
...
16
WIRE MTD-725-0980
...
17
Safety Switch (Seat) MTD-725-1439
...
18
Monitor Bulb MTD-925-1365
...
19
OIL PRESSURE SWITCH MTD-751-0537
...
20
RELAY MTD-925-1648A
...
21
Safety Switch (PTO) MTD-925-0893
Schematic Image Zoomed
