Turf Power 133B560B019 (1993) Lawn Tractor

Model: 133B560B019 (1993)

Back To Assemblies

Save Part Not Listed?
product name

Electrical/Switches

...
...
1
6 GA. BLACK WIRE MTD-725-0977
...
2
ELEC. WIRE MTD-725-0424
...
3
SPRING SWITCH MTD-732-0615
...
4
WIRE HARNESS MTD-629-0054
...
5
SWITCH MTD-925-04039
...
8
Ignition Switch MTD-925-0267B
...
9
BATTERY MTD-753-0607
...
10
WIRE W/BOOT MTD-725-0927
...
11
Solenoid MTD-925-1426A
...
13
WIRE MTD-725-0975
...
14
SWITCH-SEA MTD-725-1441

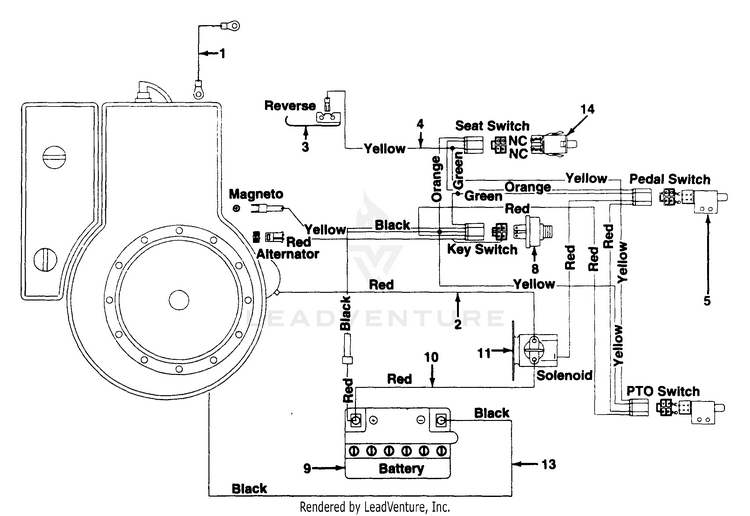

Schematic Image Zoomed
