Turf Power 123E488E019 (1993) Self-Propelled Walk-Behind Mower

Model: 123E488E019 (1993)

Save Part Not Listed?
product name

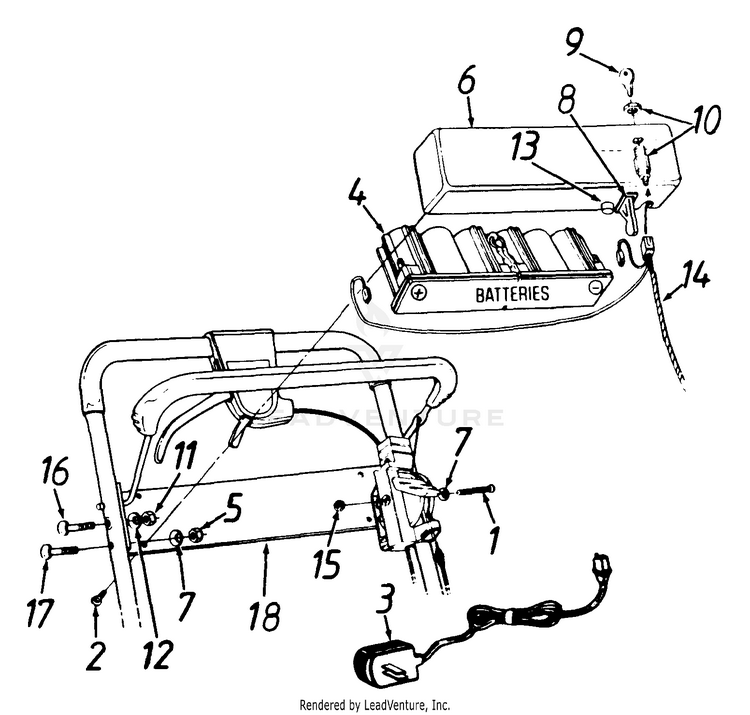

Battery Charger

...
...
1
Hex Bolt 1/4-20 x 2" Lg. MTD-710-0501
...
2
Truss Mach. Hi-Riser Tap Scr. 1" Lg. MTD-710-0969
...
3
Battery Charger MTD-925-0727
...
4
Battery Pack - 12 Volt MTD-925-1276
...
5
HEX NUT 1/4-20 MTD-912-0287
...
6
UPPER BATTERY TRAY MTD-731-0891A
...
7
SPRING WASHER BELL MTD-736-0270
...
8
PLUG MTD-925-1206
...
9
Key MTD-925-0201
...
10
KEY SWITCH MTD-925-0873
...
11
HEX NUT 5/16-18 MTD-712-3010
...
12
Bell-Wash. 5/16" I.D. MTD-736-0242
...
13
FUSE HOLDER MTD-925-1428
...
xx
7.5 AMP FUSE (Not Shown) MTD-925-0298
...
14
WIRE HARNESS MTD-725-1442
...
15
Hex L-Nut 1/4-20 Thd. MTD-712-0291
...
16
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 MTD-710-0671
...
17
Carr. Bolt 1/4-20 x 1.25" Lg. MTD-710-0111
...
18
BATTERY TRAY MTD-782-9012-0637
...
xx
WIRE HARNESS (Not Shown) MTD-725-1538
