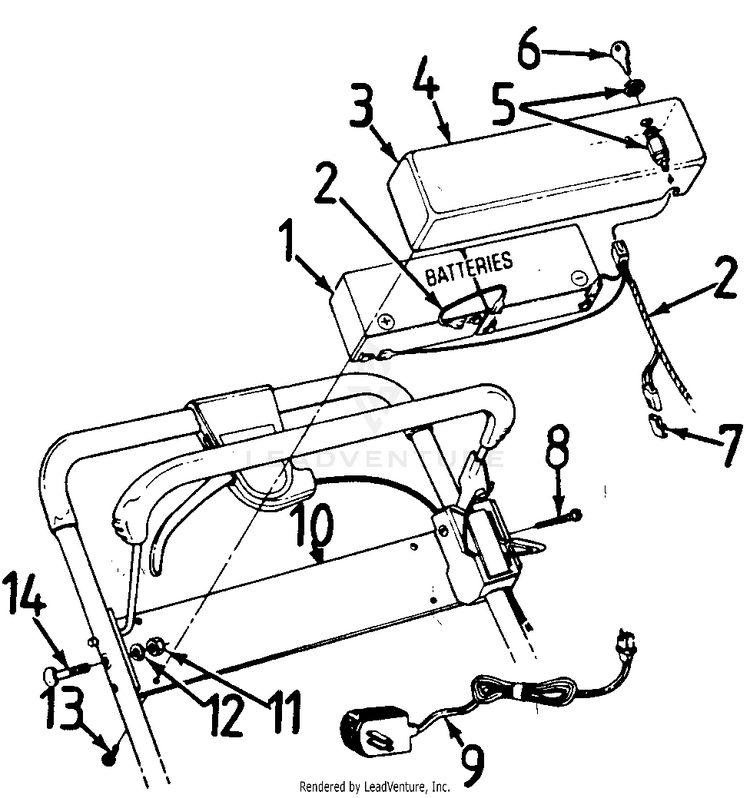

Turf King Mdl 476E Self-Propelled Mower

Model: Turf King Mdl 476E

Save Part Not Listed?
product name

Parts

...
...
1
Battery Pack - 12 Volt MTD-925-1276
...
2
Wire Harness MTD-725-1283
...
3
UPPER BATTERY TRAY MTD-731-0891
...
4
Instruction Label MTD-777-6575
...
5
KEY SWITCH MTD-925-0873
...
6
Key MTD-925-0201
...
7
PLUG MTD-925-1206
...
8
Truss Mach. Scr. #12 x 1.5" Lg. MTD-710-0796
...
9
Battery Charger MTD-925-0727
...
10
Lower Battery Tray MTD-16542
...
11
HEX NUT 5/16-18 MTD-712-3010
...
12
Lock Wash. 5/16" I.D. MTD-936-0119
...
13
Truss Mach. H-Riser Tap Scr. 1" Lg. MTD-710-0969
...
14
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 MTD-710-0671
