Troy-Bilt TPG720 41AJGA-C902 Handheld Product

Model: TPG720 41AJGA-C902

Save
 Part Not Listed?Part Not Listed?
product name

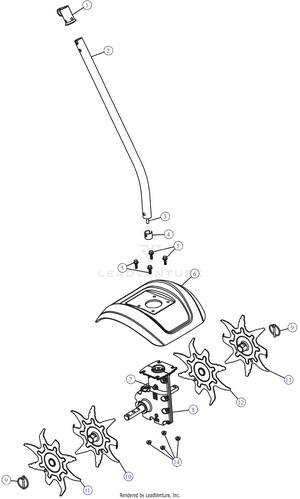

General Assembly

...
...
1
HANGER MTD-731-08926
...
2
BOOM ASSEMBLY MTD-753-08754
...
3
SHAFT, DRIVE MTD-791-613300
...
4
RETAINER SLEEVE MTD-753-04078
...
5
HEX SCREW 1/4-20X. MTD-6109
...
6
TINE SHIELD MTD-731-08411A-2
...
7
SCREW 1/4-20 X.500 MTD-710-0599
...
8
GEARBOX ASSEMBLY CULT MTD-753-06063
...
9
LYNCH PIN .1875 MTD-753-04070
...
10
TINE ASSEMBLY (LH)O (RH)I MTD-753-05986
...
11
TINE ASSEMBLY (LH)I (RH)O MTD-753-05987
...
12
TINE ASSEMBLY (LH)I (RH)O MTD-753-05987
...
13
TINE ASSEMBLY (LH)O (RH)I MTD-753-05986
...
14
LOCK NUT 1/4 MTD-912-3027
...
...
...
